911173 (LMP) - Ariens Razor 21" Push Walk-Behind Mower (SN: 020405 - 020727) Handlebar and Controls 2 Parts Diagram

Razor 21" Push Walk-Behind Mower

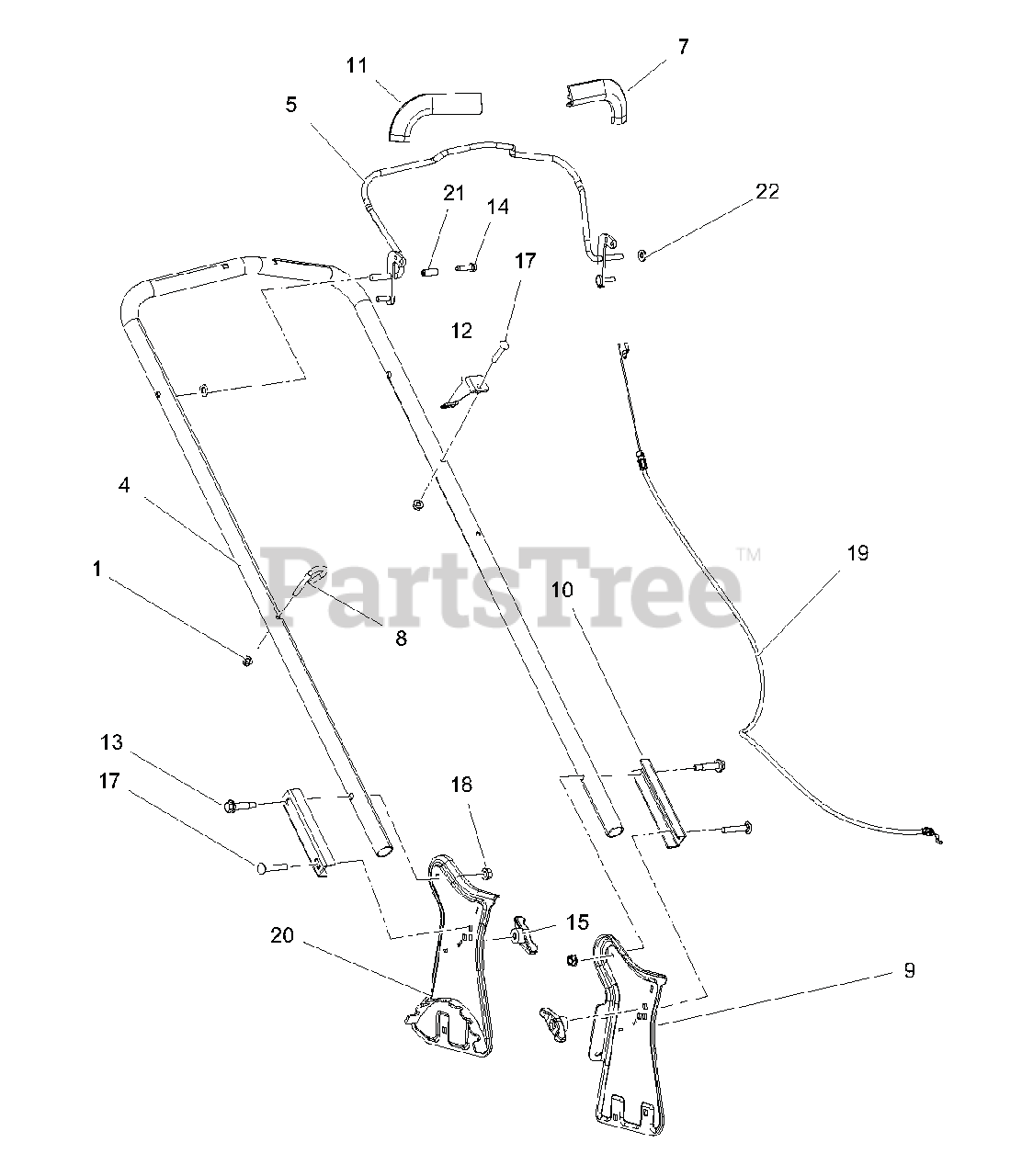

Handlebar and Controls 2 Parts Diagram

  • Title

1

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 04535351

HANDLEBAR, LM

$

$

Not available

5

Ariens 04535559

WLDMT, OPC BAIL

$90.99

$

Usually ships in 4-12 days

0

7

Ariens 04535600

GUARD, FINGER - LH

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 04535767

HOLDER, RECOIL CORD

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 04542751

SUPPORT, LH HANDLEBAR

$38.99

$

Usually ships in 4-12 days

0

10

Ariens 04545551

BRKT, HANDLEBAR FIXED ADJUST

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 04551100

GUARD, FINGER - RH

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 04562951

BRKT, CABLE ANCHOR - LM PUSH

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 07001709

BLT-SHLDR, .50X1.15X.312-18GR5

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 19

0

17

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 15

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06900529

CABLE, OPC

$14.99

$

In Stock, only 1 left!

0

20

Ariens 04542851

SUPPORT, RH HANDLBAR

$129.99

$

Usually ships in 4-12 days

0

21

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

22

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
