911172 (XD3 LM P) - Gravely 21" Push Walk-Behind Mower, Subaru (SN: 026000 & Above) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, Subaru

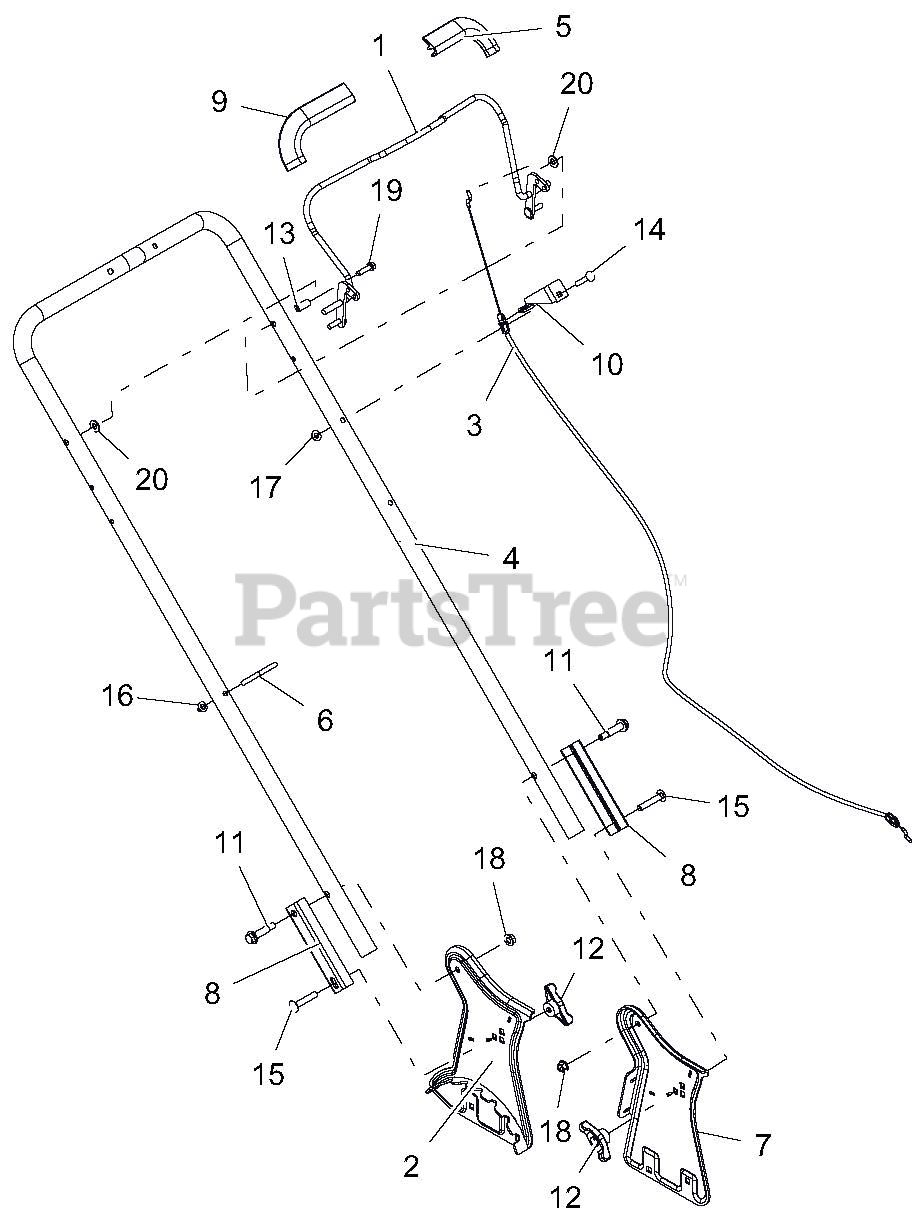

Handlebar And Controls Parts Diagram

  • Title

1

Gravely 04535553

BAIL, OPC

$90.99

$

Usually ships in 4-12 days

0

2

Gravely 04542851

WLDMT, RH SIDE PLATE-ARIENS

$57.99

$

Usually ships in 4-12 days

0

3

Gravely 06900529

CABLE, OPC

$12.99

$

In Stock, only 1 left!

0

4

Gravely 04535351

HANDLEBAR,

$

$

Not available

5

Gravely 04535600

GUARD, FINGER - LH

$

$

Not available

6

Gravely 04535767

GUIDE, RECOIL ROPE

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 04542751

SUPPORT, LH HANDLEBAR

$

$

Not available

8

Gravely 04545551

BRKT, HANDLEBAR FIXED ADJUST

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 51117000

GUARD, FINGER - RH

$56.99

$

In Stock, only 1 left!

0

10

Gravely 04562951

BRKT, CABLE ANCHOR - LM PUSH

$

$

Not available

11

Gravely 07001709

BLT, SHLDR .50X1.30X.38-16 GR5

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 07500105

KNOB, WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 19

0

13

Gravely 07517000

CAP, VINYL

$3.49

$

In Stock, Qty 10

0

14

Gravely 06222300

BLT-RDHDSQNK .25-20X1.50 G5 Y
(Superseded to 06200331)

$1.49

$

In Stock, Qty 18

0

15

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5 YWZC
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

16

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

17

Gravely 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07412400

SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

20

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
