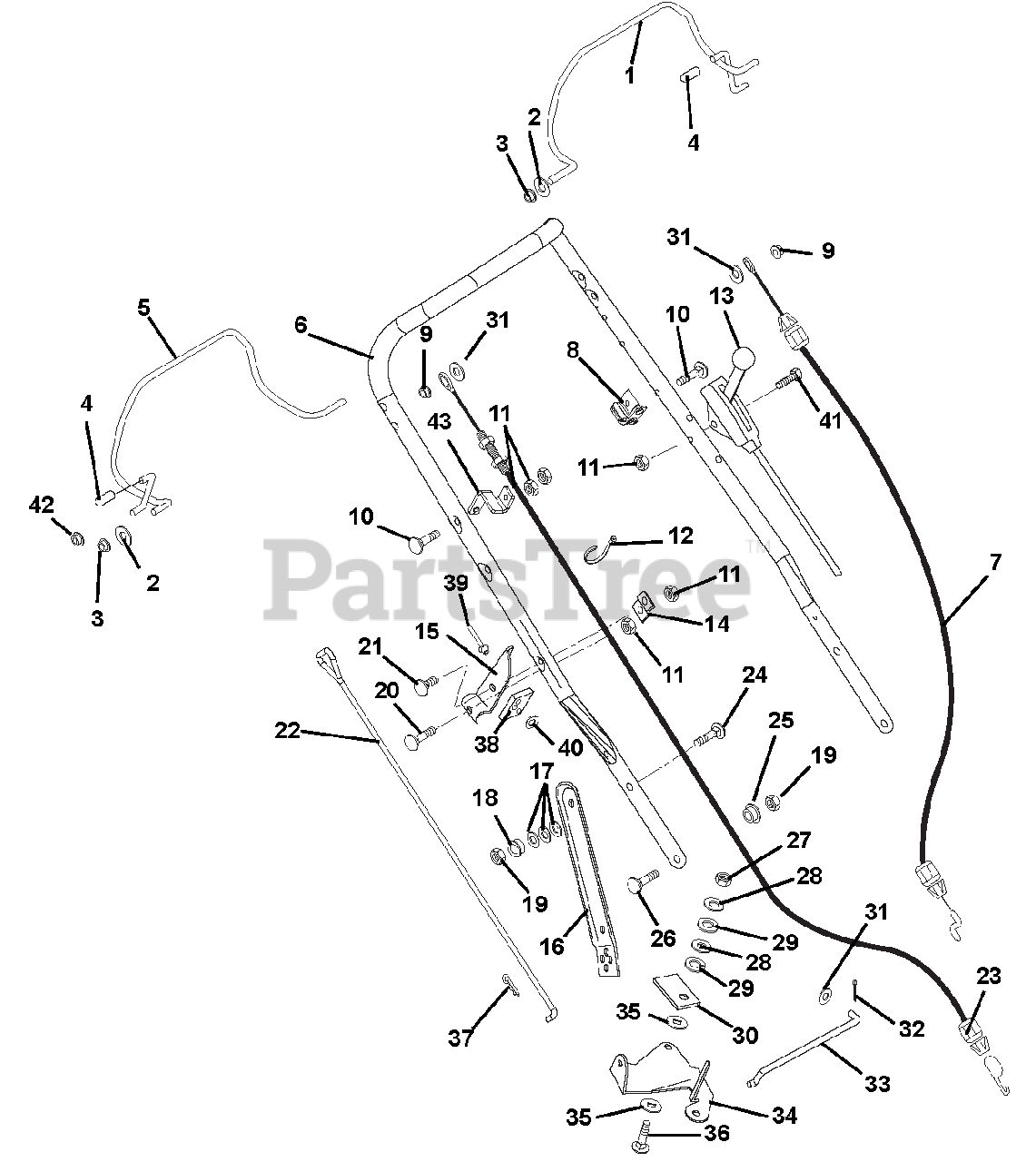

911170 (LM 21) - Ariens 21" Push Walk-Behind Mower, Kohler (SN: 000101 - 021999) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, Kohler

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01245151

BAIL, WBLM ENGINE

$56.99

$

Usually ships in 4-12 days

0

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911193, 194)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911170, 192)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911193, 194)

$3.99

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (911170, 192)

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

Note: (911193, 194)

$3.49

$

In Stock, Qty 10

0

4

Ariens 07517000

CAP, VINYL, .25 ID

Note: (911170, 192)

$3.49

$

In Stock, Qty 10

0

5

Ariens 01245251

BAIL, WBLM TRACTION

Note: (911193, 194)

$75.99

$

In Stock, only 1 left!

0

6

Ariens 01330051

HANDLE BAR, CLASSIC LM21

$232.99

$

Usually ships in 4-12 days

0

7

Ariens 06900014

CABLE, WBLM ENGINE

Note: (911170, 911192, 193)

$23.99

$

In Stock, only 1 left!

0

7

Ariens 01292500

CABLE, ENGINE - ADJUSTABLE

Note: (911194)

$42.99

$

In Stock, only 4 left!

0

8

Ariens 01245600

ANCHOR, WBLM ENGINE CABLE
(Superseded to 01245651)

$

$

Not available

9

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (911193, 194)

$2.49

$

In Stock, only 4 left!

0

10

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

Note: (911170, 192)

$2.49

$

In Stock, only 4 left!

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911193, 194)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911170, 192)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

13

Ariens 06948100

CABLE, LOCKOUT CONTROL

Note: (911194)

$68.99

$

Usually ships in 4-12 days

0

14

Ariens 01141851

BRACE, SPEED CONTROL

Note: (911193, 194)

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 01137451

BRACKET, SPEED CONTROL
(Superseded to 51119700)

Note: (911193, 194)

$23.99

$

Usually ships in 4-12 days

0

16

Ariens 01150051

LINK, HANDLEBAR ADJUSTMENT LH

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 01150151

LINK, HANDLEBAR ADJUSTMENT RH

$27.99

$

Usually ships in 4-12 days

0

17

Ariens 01178700

WASHER, BELLEVILLE YWZC

$2.49

$

In Stock, Qty 6

0

18

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 18

0

21

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03256800

ROD, SPEED CONTROL

Note: (911193, 194)

$27.99

$

Usually ships in 4-12 days

0

23

Ariens 06900013

CABLE, WBLM TRACTION

Note: (911193, 194)

$59.99

$

In Stock, only 2 left!

0

24

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

26

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

27

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

Note: (911193, 194)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (911193, 194)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

Note: (911193, 194)

$3.49

$

In Stock, only 3 left!

0

30

Ariens 01154800

PRESSURE FLANGE

Note: (911193, 194)

$7.99

$

Usually ships in 4-12 days

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911193, 194)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06712400

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Note: (911193, 194)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 01126100

SHIFT LINK

Note: (911193, 194)

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (911193, 194)

$

$

Not available

35

Ariens 01123800

FRICTION WASHER

Note: (911193, 194)

$3.99

$

In Stock, Qty 20+

0

36

Ariens 06222200

@BLT-RHDSSQNK .38-16X1.25 G5YZ
(Superseded to 06200236)

Note: (911193, 194)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

Note: (911193, 194)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

$

$

Not available

39

Ariens 06815700

RVT .187X.575 DOME AL BLACK

$1.49

$

In Stock, only 2 left!

0

40

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

41

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

Note: (911194)

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

43

Ariens 01245451

BRKT, TRACTION CABLE ANCHOR

Note: (911193, 194)

$28.99

$

Usually ships in 4-12 days
