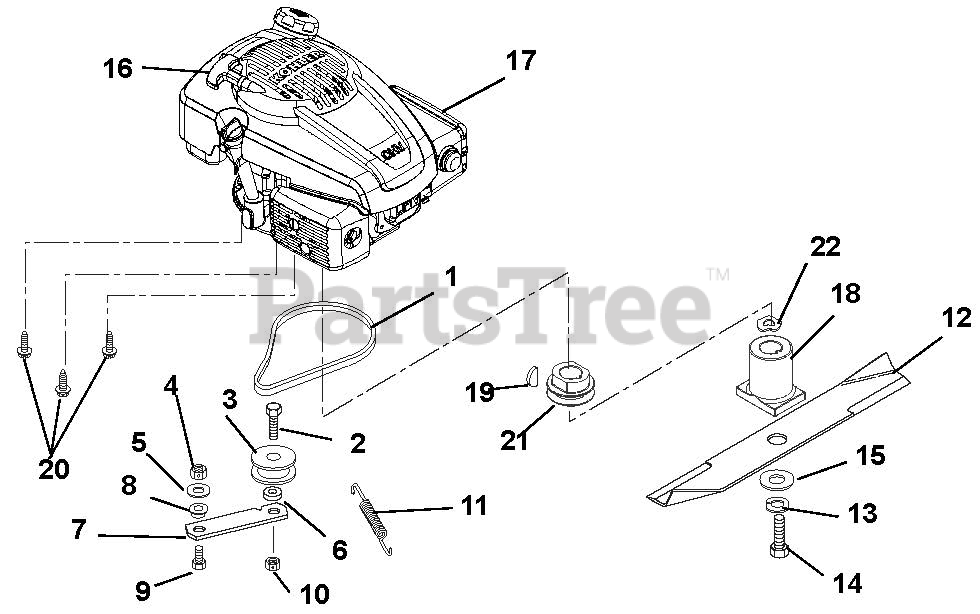

911161 (LM 21) - Ariens 21" Push Walk-Behind Mower, Kohler, CARB (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Push Walk-Behind Mower, Kohler, CARB

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 07217100

V-BELT, 3L-COGGED

$34.99

$

In Stock, Qty 6

0

2

Ariens 05962800

@BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

3

Ariens 07313300

IDLER-FLAT 1.75 X .47

$35.99

$

In Stock, Qty 7

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05533300

BSHG-SLV .469 X .750 X .430

$3.99

$

In Stock, Qty 11

0

7

Ariens 01141200

IDLER ARM

$22.99

$

In Stock, only 2 left!

0

8

Ariens 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

11

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

12

Ariens 01137000

21" MOWER BLADE

$25.99

$

In Stock, Qty 20+

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

15

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

16

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0

17

Ariens 08200312

ENGINE, KOHLER XT-7 BASE

Note: (911160, 162, 164)

$

$

Not available

17

Ariens 08200313

ENGINE, KOHLER XT-7 CARB

Note: (911161, 163, 165)

$

$

Not available

17

Ariens 08200026

ENGINE, KAWASAKI 6.0 CONSUMER

Note: (911133, 134)

$

$

Not available

18

Ariens 09735100

ADAPTER, CE BLADE

$45.99

$

Usually ships in 4-12 days

0

19

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

Note: (911133, 134, 162, 163, 164, 165)

$2.49

$

In Stock, Qty 12

0

20

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

21

Ariens 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

Note: (911133, 134, 162, 163, 164, 165)

$16.99

$

Usually ships in 4-12 days

0

22

Ariens 01192900

WASHER-WAVE .885X1.311X.125

$4.99

$

In Stock, Qty 6

0
