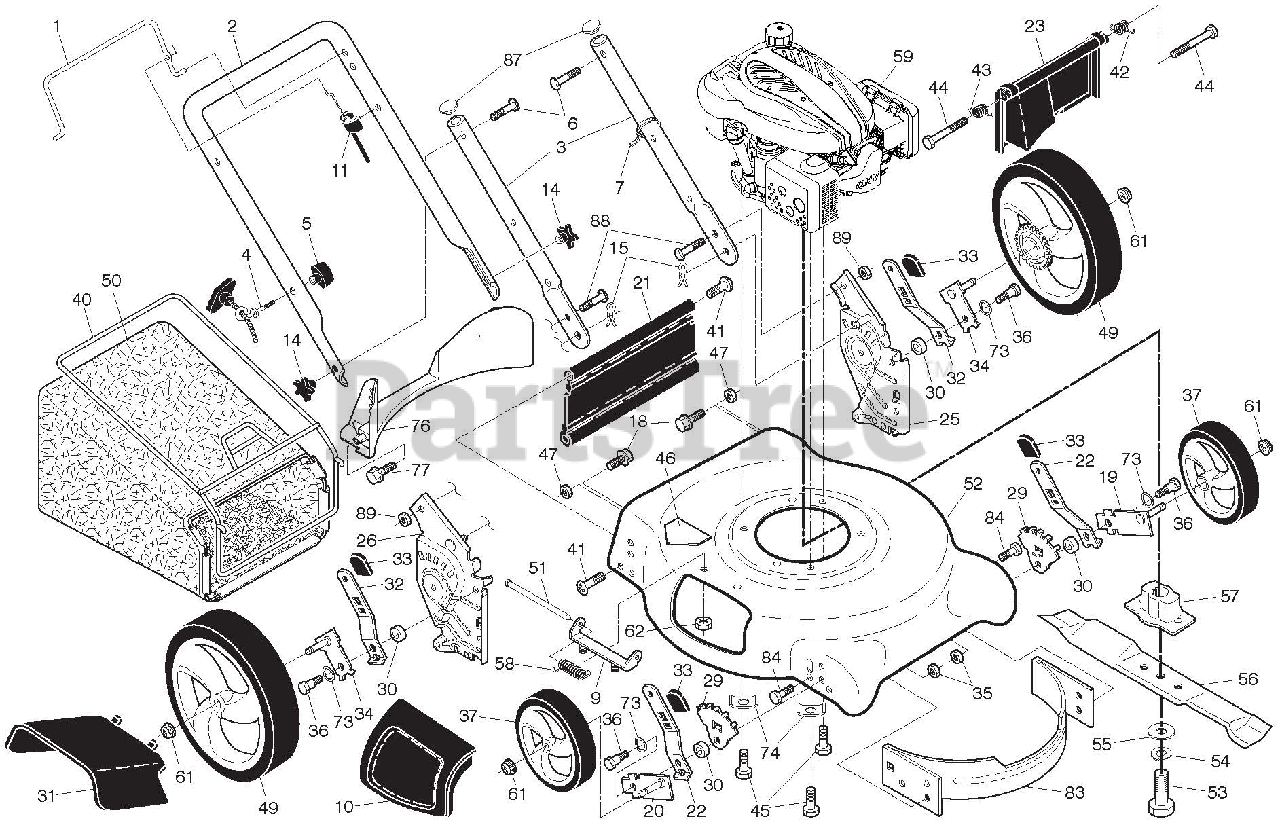

911157 - Ariens 21" Push Walk-Behind Mower (SN: 000101 - 010000) Repair Parts Parts Diagram

21" Push Walk-Behind Mower

Repair Parts Parts Diagram

  • Title

1

Ariens 21549056

CONTROL BAR

$

$

Not available

2

Ariens 21549057

UPPER HANDLE

$

$

Currently unavailable

3

Ariens 21548446

BAR, LOWER HANDLE

$

$

Not available

4

Ariens 21548820

ROPE GUIDE

$12.99

$

Usually ships in 4-12 days

0

5

Ariens 21548821

T-KNOB

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 21546883

Handle Bolt

$6.99

$

In Stock, only 4 left!

0

7

Ariens 21546869

Wire Tie

$

$

Not available

8

Ariens 21546915

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 21546883

Handle Bolt

$6.99

$

In Stock, only 4 left!

0

10

Ariens 21546877

Mulcher Door

$11.99

$

In Stock, only 1 left!

0

11

Ariens 21549058

ENGINE ZONE CONTROL CABLE

$22.99

$

Usually ships in 4-12 days

0

14

Ariens 21546880

Handle Knob

$

$

Not available

15

Ariens 21546056

Ring, Klip

$6.49

$

Usually ships in 4-12 days

0

18

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, only 2 left!

0

19

Ariens 21549059

AXLE ARM ASSEMBLY, FRONT, LH
(Superseded to 21546987)

$

$

Not available

20

Ariens 21549060

AXLE ARM ASSEMBLY, FRONT, RH
(Superseded to 21546988)

$6.99

$

In Stock, only 4 left!

0

21

Ariens 21546901

Kit, Rear Skirt

$13.99

$

In Stock, Qty 5

0

22

Ariens 21549062

SELECTOR SPRING, FRONT
(Superseded to 21546991)

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 21549063

REAR DOOR ASSEMBLY
(Superseded to 21546993)

$

$

Not available

25

Ariens 21549064

HANDLE BRACKET, LH

$9.99

$

Usually ships in 4-12 days

0

26

Ariens 21549065

HANDLE BRACKET, RH

$9.99

$

Usually ships in 4-12 days

0

29

Ariens 21549066

WHEEL ADJUSTING BRACKET

$

$

Currently unavailable

30

Ariens 21546888

Spacer

$6.49

$

In Stock, only 4 left!

0

31

Ariens 21546878

Discharge Deflector

$

$

Not available

32

Ariens 21549067

SELECTOR SPRING, REAR

$6.99

$

Usually ships in 4-12 days

0

33

Ariens 21547504

Selector Knob

$

$

Not available

34

Ariens 21549068

AXLE ARM ASSEMBLY, REAR

$

$

Not available

35

Ariens 21546879

Locknut, Hex 5/16-18

$

$

Not available

36

Ariens 21546890

Shoulder Bolt

$4.99

$

Usually ships in 4-12 days

0

37

Ariens 21549069

WHEEL & TIRE, FRONT, 8 X 1-3/4

$34.99

$

Usually ships in 4-12 days

0

39

Ariens 21546897

Flanged Locknut, Hex

$

$

Not available

40

Ariens 21546899

Frame, Grassbag

$44.99

$

Usually ships in 4-12 days

0

41

Ariens 21548416

HINGE SCREW

$

$

Not available

42

Ariens 21546893

Spring, Rear Door, LH

$8.99

$

Usually ships in 4-12 days

0

43

Ariens 21546894

Spring, Rear Door, RH

$

$

Not available

44

Ariens 21546882

Bolt, Rear Door

$

$

Not available

45

Ariens 21546874

Screw, Hex Head, Threaded, Rol

$6.99

$

Usually ships in 4-12 days

0

46

Ariens 21549070

DECAL, WARNING

$9.49

$

Usually ships in 4-12 days

0

47

Ariens 21546908

Nut, Hex

$

$

Not available

49

Ariens 21549071

WHEEL & TIRE, REAR, 11 X 1-3/4

$

$

Not available

50

Ariens 21549072

GRASSBAG

$100.99

$

Usually ships in 4-12 days

0

51

Ariens 21546873

Hinge Rod

$8.99

$

Usually ships in 4-12 days

0

52

Ariens 21549073

KIT, HOUSING

Note: (Includes #46)

$

$

Not available

53

Ariens 21549161

Bolt, HEX .44-20 1.5 GRD 8

$

$

Currently unavailable

54

Ariens 21547501

Helical Lockwasher

$3.49

$

Usually ships in 4-12 days

0

55

Ariens 21549075

WASHER, FLAT, HARDENED

$

$

Not available

56

Ariens 21546895

21" Blade

$34.99

$

Usually ships in 4-12 days

0

57

Ariens 21549076

BLADE ADAPTER

$18.99

$

Usually ships in 4-12 days

0

58

Ariens 21546875

Hinge Spring

$7.49

$

In Stock, only 4 left!

0

59

Ariens 08200829

ENGINE, LONCIN 159CC VERT.

$

$

Not available

61

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

62

Ariens 21546979

Lock Nut 1/4-20
(Superseded to 21546914)

$

$

Not available

65

Ariens 21546870

Washer, Flat

$

$

Not available

66

Ariens 21546886

O-Ring

$6.99

$

Usually ships in 4-12 days

0

73

Ariens 21546889

Washer, Curved, Cylindrical

$4.99

$

In Stock, only 3 left!

0

74

Ariens 21549078

WASHER, SPECIAL, ENGINE

$6.99

$

Usually ships in 4-12 days

0

76

Ariens 21549079

BAFFLE, REAR

$

$

Not available

77

Ariens 21546912

Screw, Rear Baffle

$

$

Not available

83

Ariens 21548024

BAFFLE, FRONT

$

$

Not available

84

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$7.49

$

In Stock, Qty 12

0

87

Ariens 21548442

PLUG, HANDLE BAR

$

$

Not available

88

Ariens 21548837

BOLT, CARRIAGE

$3.99

$

Usually ships in 4-12 days

0

89

Ariens 21546796

Nut, Hex, Flangelock
(Superseded to 06500020)

$3.99

$

Usually ships in 4-12 days

0

- -

Ariens 21549080

PARTS BAG

Note: (Includes Key Numbers 88 and 89)

$

$

Currently unavailable

- -

Ariens 21549081

WARNING DECAL

Note: (not shown)

$

$

Currently unavailable

- -

Ariens 21549052

OPERATOR'S MANUAL ENGLISH/FRE

$

$

Currently unavailable

- -

Ariens 21549053

OPERATOR'S MANUAL SPANISH

$

$

Currently unavailable
