911156 (BRSPE 21) - Ariens 21" Self-Propelled Walk-Behind Mower, Kohler (SN: 000101 & Above) Electrical Harness And Battery Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kohler

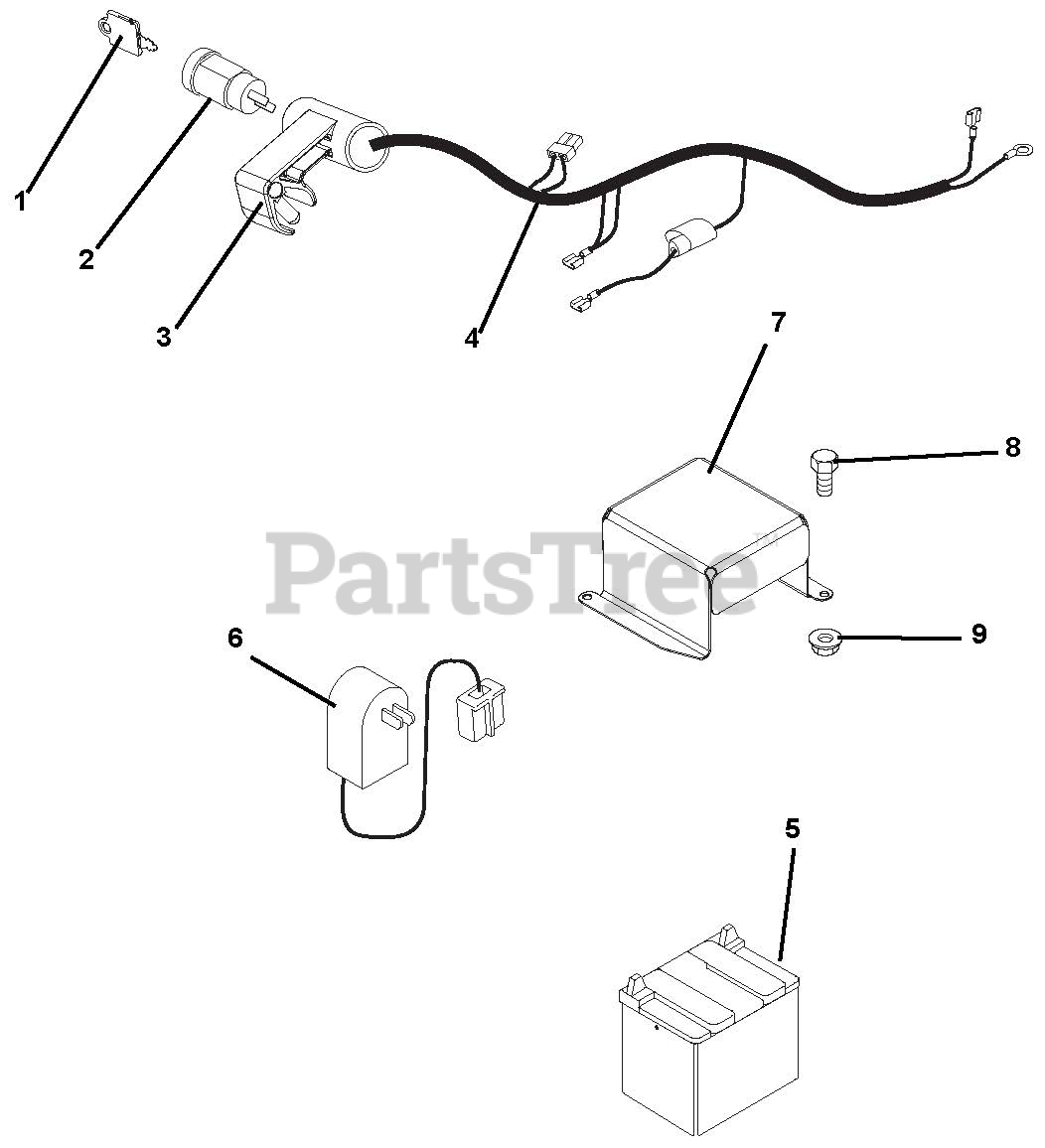

Electrical Harness And Battery Parts Diagram

  • Title
1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 01269400

KEYSWITCH

$

$

Not available

3

Ariens 01269200

SNAP-ON E-START HOUSING

$

$

Not available

4

Ariens 01283300

HARNESS, BLADE RUNNER WIRE

$

$

Not available

5

Ariens 01269300

BATTERY - 12V

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 01281100

CHARGER, BATTERY

$

$

Not available

7

Ariens 01269151

COVER, BATTERY

$

$

Not available

8

Ariens 06200013

@BLT-HEX 8-32 X .5 YWZC

$

$

Not available

9

Ariens 06531300

@NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

10

Ariens 01291900

HARNESS, KOHLER XT7 ELS ADAPT

Note: (Not Shown)

$

$

Not available

11

Ariens 01300000

FUSE, 35 AMP MINI

Note: (Not Shown)

$

$

Not available
