911152 (BRSP 21) - Ariens 21" Self-Propelled Walk-Behind Mower, Kohler (SN: 000101 - 001999) Wheels And Height Of Cut Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kohler

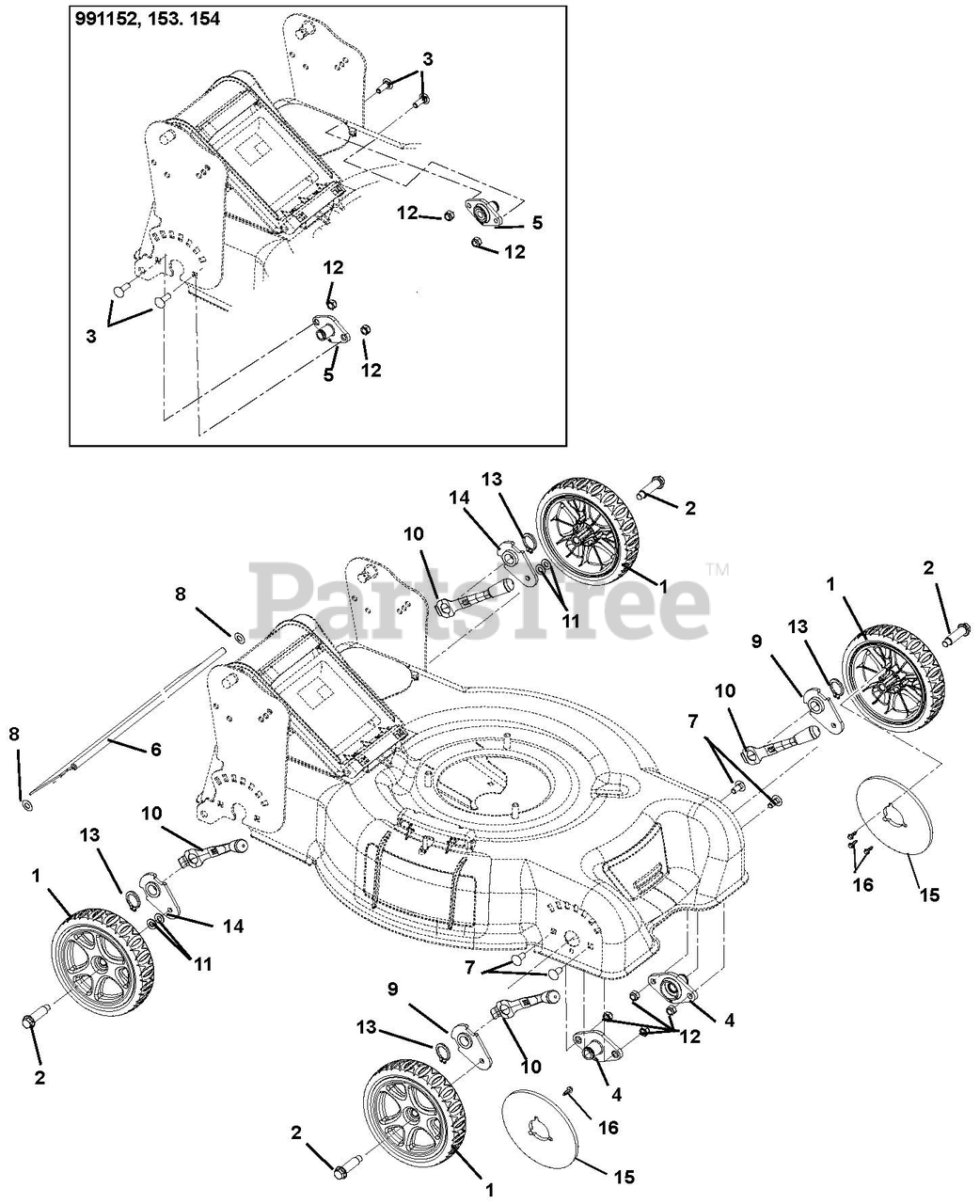

Wheels And Height Of Cut Parts Diagram

  • Title

1

Ariens 01266600

WHEEL-8.5" WBLM ASSY

$

$

Not available

2

Ariens 01265100

BOLT, WHEEL SHOULDER

$

$

Not available

3

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 01263000

WHEEL MOUNT HUB

Note: (911150, 151)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 51110700

KIT, WHEEL MOUNT HUB SERVICE

Note: (911152, 153, 154)

$78.99

$

Usually ships in 4-12 days

0

6

Ariens 01250900

GUARD, WBLM

$11.99

$

Usually ships in 4-12 days

0

7

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (911150, 151)

$2.49

$

In Stock, Qty 20+

0

8

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 2 left!

0

9

Ariens 01268500

PLATE, FRONT WHEEL MOUNT

$28.99

$

In Stock, only 2 left!

0

10

Ariens 01266400

HANDLE, HOC

$35.99

$

Usually ships in 4-12 days

0

11

Ariens 06439900

WSHR-HDND .406X.812X.055

Note: (911152, 153, 154)

$0.99

$

Usually ships in 4-12 days

0

12

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 05714600

RG-RTNG-EXT .689X.078

$2.49

$

In Stock, Qty 5

0

14

Ariens 01268600

PLATE, REAR WHEEL MOUNT

$

$

Not available

15

Ariens 00603951

WEIGHT,WHEEL

Note: (991154)

$

$

Not available

16

Ariens 07400008

SCR-TAP .25-15X.75 HI-LO
(Superseded to 07400106)

Note: (991154)

$2.49

$

In Stock, only 1 left!

0
