911151 (BRP 21) - Ariens 21" Push Walk-Behind Mower, Kohler, CARB (SN: 000101 & Above) Mower Deck And Bagger Parts Diagram

21" Push Walk-Behind Mower, Kohler, CARB

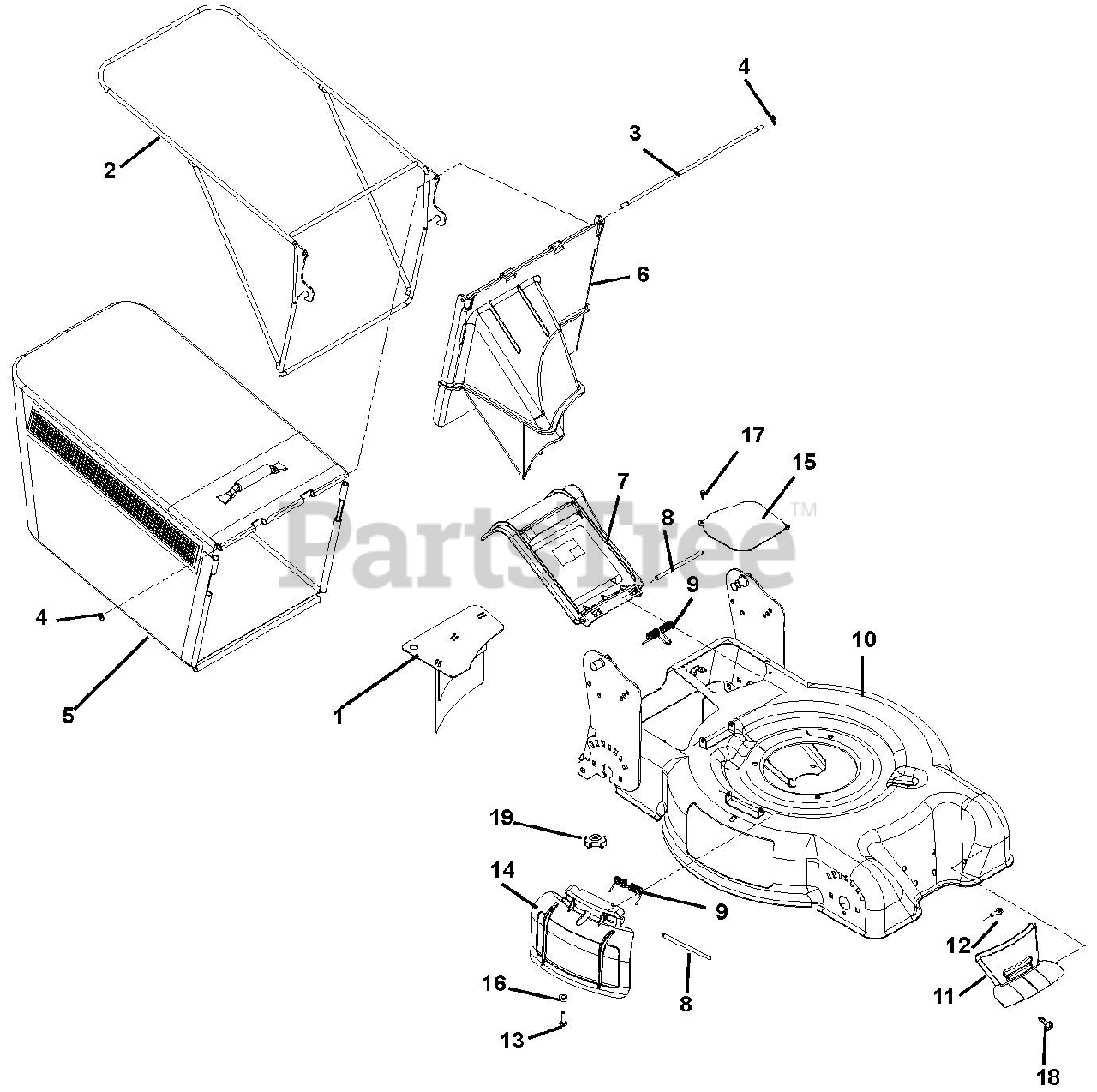

Mower Deck And Bagger Parts Diagram

  • Title

1

Ariens 01268051

PLUG, MULCH (STEEL)

$83.99

$

Usually ships in 4-12 days

0

2

Ariens 01278551

BAGGER FRAME

Note: (911152, 153, 154)

$91.99

$

Usually ships in 4-12 days

0

3

Ariens 01253200

ROD, HINGE

Note: (911152, 153, 154)

$5.99

$

Usually ships in 4-12 days

0

4

Ariens 07027600

NUT-PUSH .25X.50 O.D.

Note: (911152, 153, 154)

$2.49

$

In Stock, Qty 9

0

5

Ariens 01250700

WBLM, ARIENS BAGGER
(Superseded to 71105500)

Note: (911152, 153, 154)

$

$

Not available

6

Ariens 01253400

BAGGER DOOR

Note: (911152, 153, 154)

$23.99

$

Usually ships in 4-12 days

0

7

Ariens 01251400

REAR DISCHARGE COVER

$

$

Not available

8

Ariens 01260900

PIN, HINGE

$19.99

$

Usually ships in 4-12 days

0

9

Ariens 08300035

TORSION SPRING

$14.99

$

Usually ships in 4-12 days

0

10

Ariens 01253059

21" DECK WELDMENT

$

$

Not available

11

Ariens 01264100

GRILL INSERT

$

$

Not available

12

Ariens 07400011

SCR-TAP 12-12X.75 HI-LOW YZ

$

$

Not available

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 01260500

MULCH COVER

$35.99

$

Usually ships in 4-12 days

0

15

Ariens 01262351

COVER, TRANSMISSION ACCESS

$19.99

$

Usually ships in 4-12 days

0

16

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

17

Ariens 07412100

@SCR-TAP 10-24X.375 HWH YZ TR

Note: (911150, 151, 152, 153)

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 07400012

SCREW, SELF DRILL/TAP

$3.49

$

Usually ships in 4-12 days

0

19

Ariens 07500011

KNOB-CLAMPING, .250-20 NYLOC

$

$

Not available
