911137 (LM 21 SW) - Gravely 21" Walk-Behind Mower with Front Swivel Wheels (SN: 000101 - 004999) Swivel Wheels And Brackets Parts Diagram

21" Walk-Behind Mower with Front Swivel Wheels

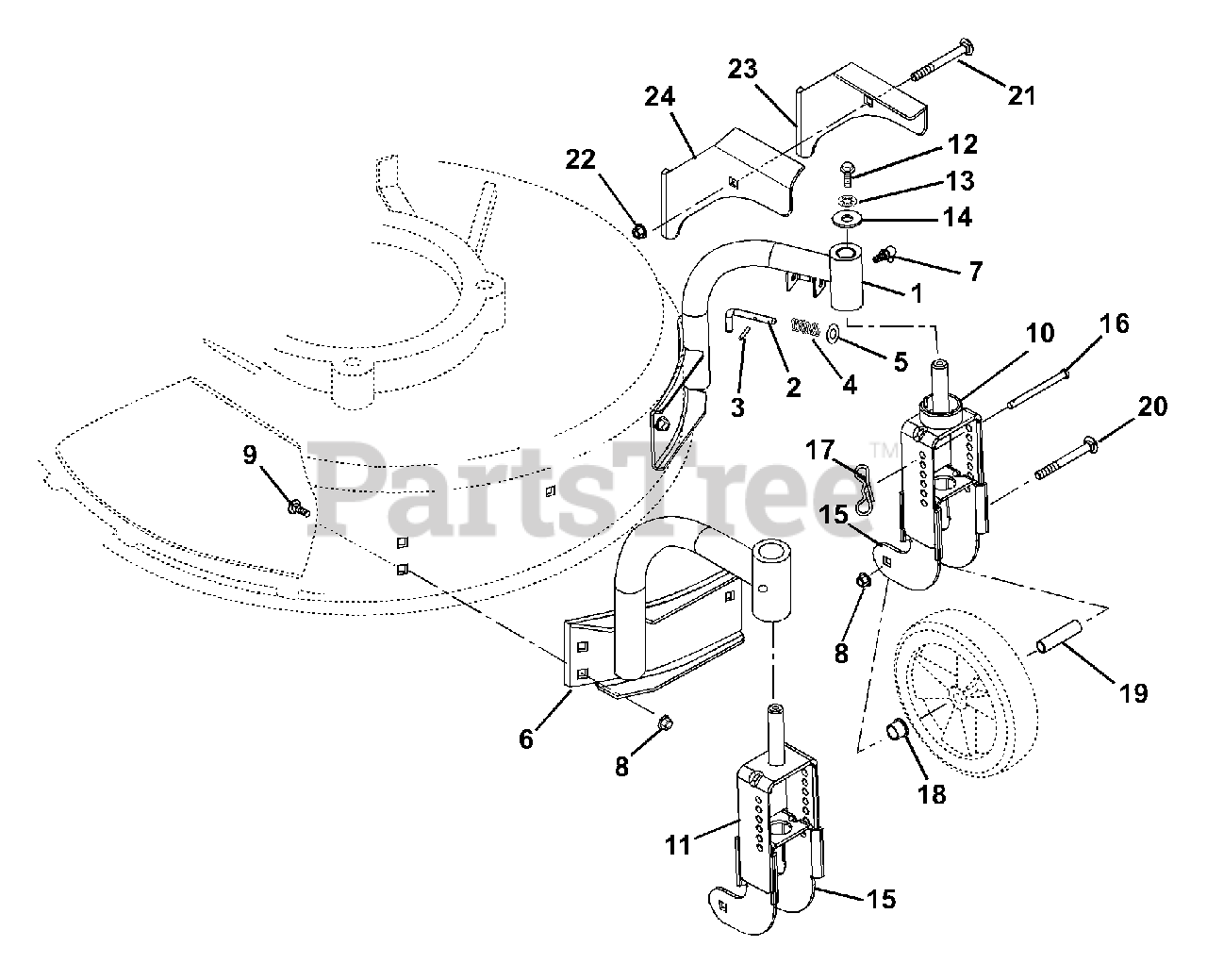

Swivel Wheels And Brackets Parts Diagram

  • Title
1

Gravely 01196853

ASSY, MOUNT LH W/BUSHINGS

$151.99

$

Usually ships in 4-12 days

0

2

Gravely 01196900

PIN, LOCKOUT

$18.99

$

In Stock, only 1 left!

0

3

Gravely 05801000

PIN-ROLL .093X.50

$0.99

$

In Stock, Qty 10

0

4

Gravely 08337300

SPRG, COMP--SWVL LOCKOUT

$3.49

$

In Stock, only 2 left!

0

5

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01197553

ASSY, MOUNT RH W/BUSHINGS

$124.99

$

In Stock, only 1 left!

0

7

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

8

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

10

Gravely 01196753

YOKE, OUTER LH

$100.99

$

Usually ships in 4-12 days

0

11

Gravely 01197453

YOKE, RH OUTER

$

$

Not available

12

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01196600

YOKE-INNER

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 06817100

PIN, HEIGHT ADJUSTMENT

$3.99

$

In Stock, Qty 13

0

17

Gravely 06700001

PIN, BOW TIE LOCKING COTTER

$2.99

$

In Stock, Qty 17

0

18

Gravely 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05533500

SPCR, WHEEL .385X.500X2.00

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$2.99

$

In Stock, only 4 left!

0

21

Gravely 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 01197353

BRACKET, HOOD CABLE LH

$

$

Not available

24

Gravely 01198153

BRACKET, HOOD CABLE WELDMENT

$

$

Not available
