911123 (DESP 21) - Gravely 21" Walk-Behind Mower, 5.5hp Honda, Elect. Start (SN: 000101 & Above) Electrical Harness & Battery Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda, Elect. Start

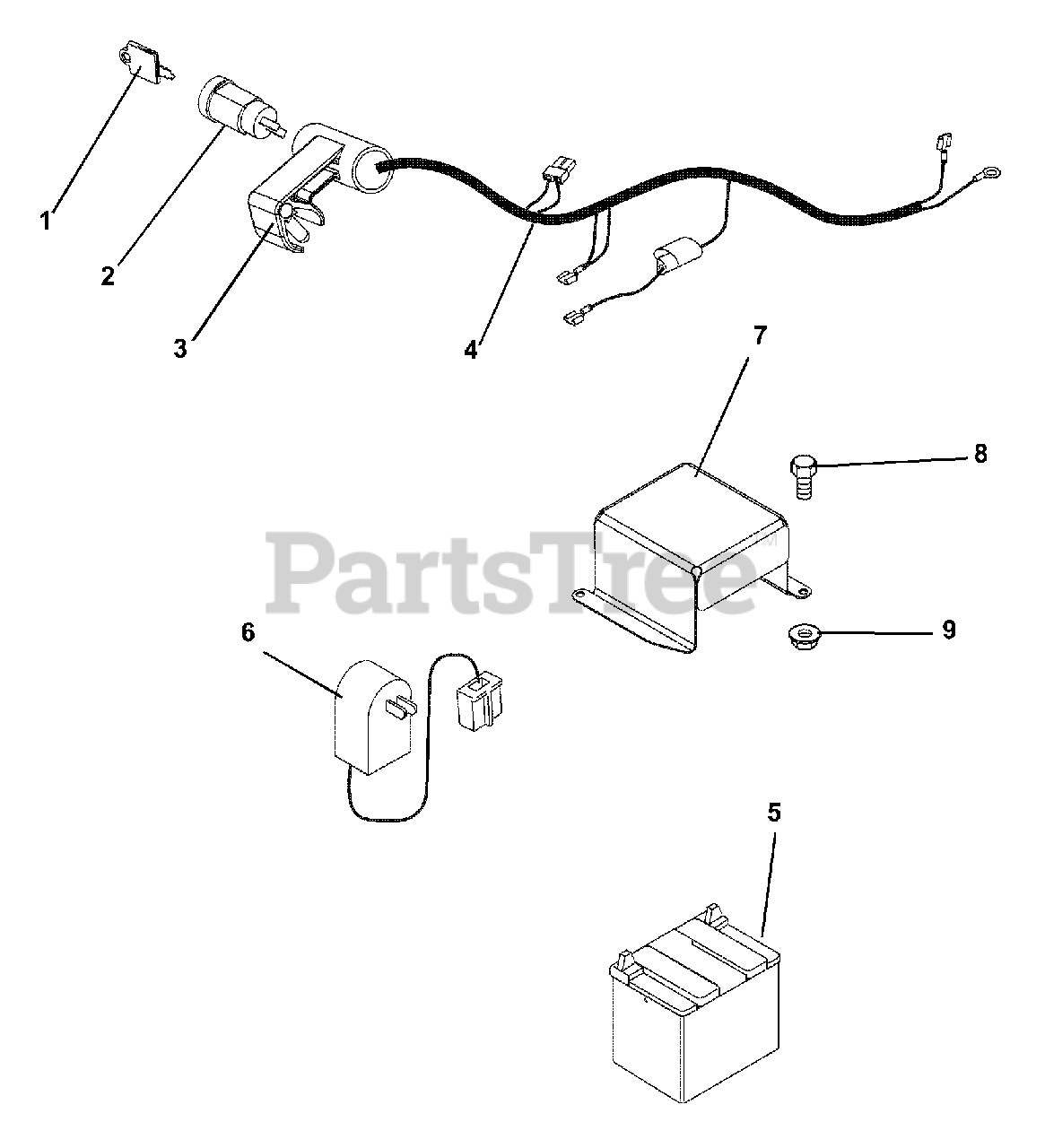

Electrical Harness & Battery Parts Diagram

  • Title

$7.99

$

In Stock, Qty 20+

0

2

Gravely 01269400

Key, Switch

$

$

Not available

3

Gravely 01269200

Housing, Switch

$

$

Not available

4

Gravely 01268800

Harness, Wire

$

$

Not available

5

$51.99

$

Usually ships in 4-12 days

0

6

Gravely 01268900

Battery, Charger
(Superseded to 01281100)

$

$

Not available

7

Gravely 01269151

Cover, Battery

$

$

Not available

8

Gravely 06200013

Bolt, Hex 8-32 x .5

$

$

Not available

9

Gravely 06531300

Nut-Locking-Nylon 8-32

$0.99

$

Usually ships in 4-12 days

0
