911122 (DSP 21) - Gravely Home 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Wheels And Height Of Cut Parts Diagram

Home 21" Walk-Behind Mower, 5.5hp Honda

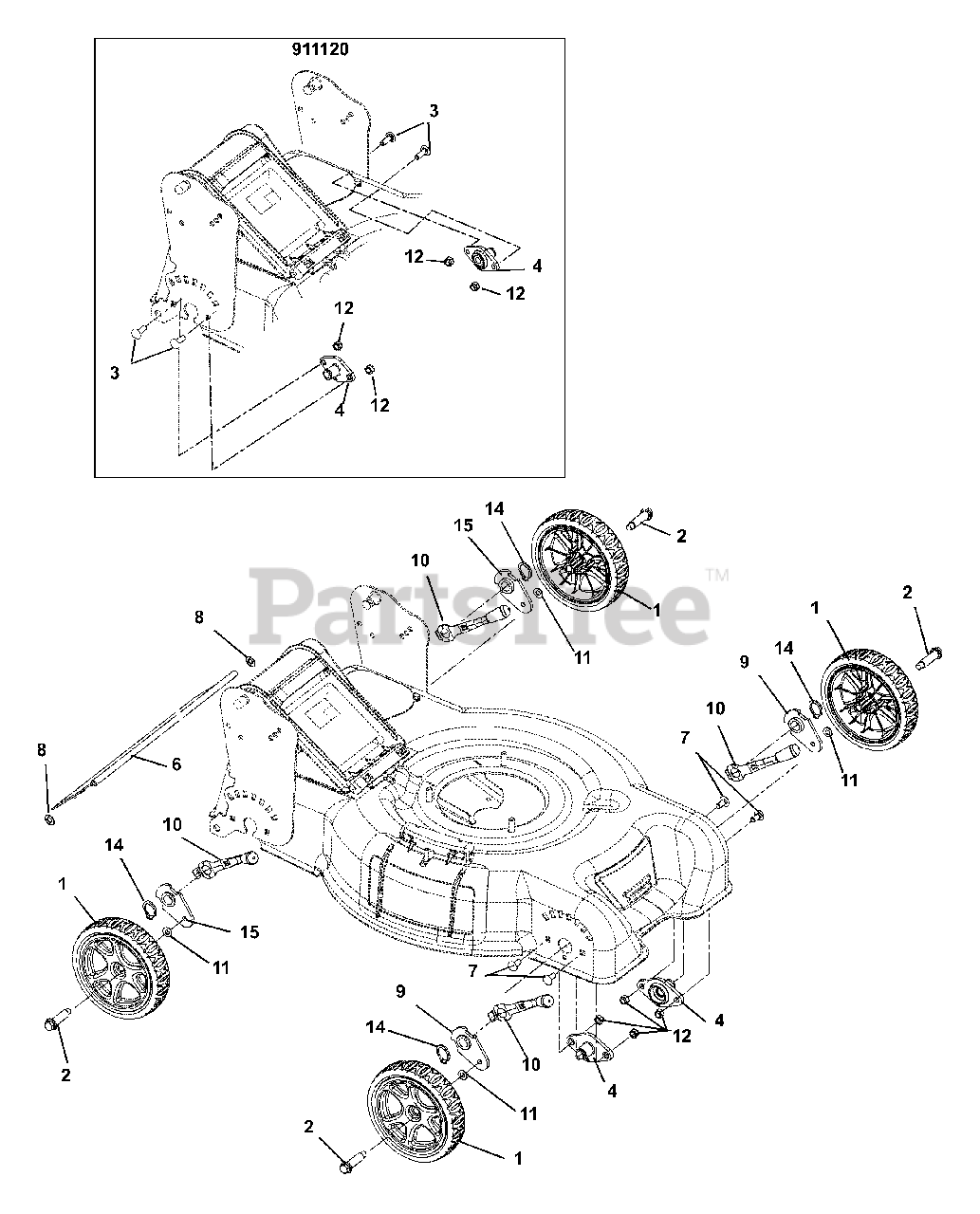

Wheels And Height Of Cut Parts Diagram

  • Title
1

Gravely 01250500

Assembly, Wheel
(Superseded to 01266600)

$

$

Not available

2

Gravely 01265100

Bolt, Wheel Shoulder

$

$

Not available

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01263000

Wheel Mount Hub

Note: (911120)

$45.99

$

Usually ships in 4-12 days

0

5

Gravely 01263000

Wheel Mount Hub

Note: (911121, 122, 123)

$45.99

$

Usually ships in 4-12 days

0

6

Gravely 01250900

Guard, WBLM

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 00548400

Retainer, .38 Push-On

$1.49

$

In Stock, only 2 left!

0

9

Gravely 01263200

Weldment, Front Wheel Bracket
(Superseded to 01268500)

$28.99

$

In Stock, only 2 left!

0

10

Gravely 01266400

Height of Cut Lever

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (911120)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (911121)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05714600

Ring, Retaining-External .689 x .077

$2.49

$

In Stock, Qty 5

0

15

Gravely 01263100

Weldment, Rear Wheel Bracket
(Superseded to 01268600)

$

$

Not available
