911122 (DSP 21) - Gravely Home 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Handlebar And Controls - Deluxe Parts Diagram

Home 21" Walk-Behind Mower, 5.5hp Honda

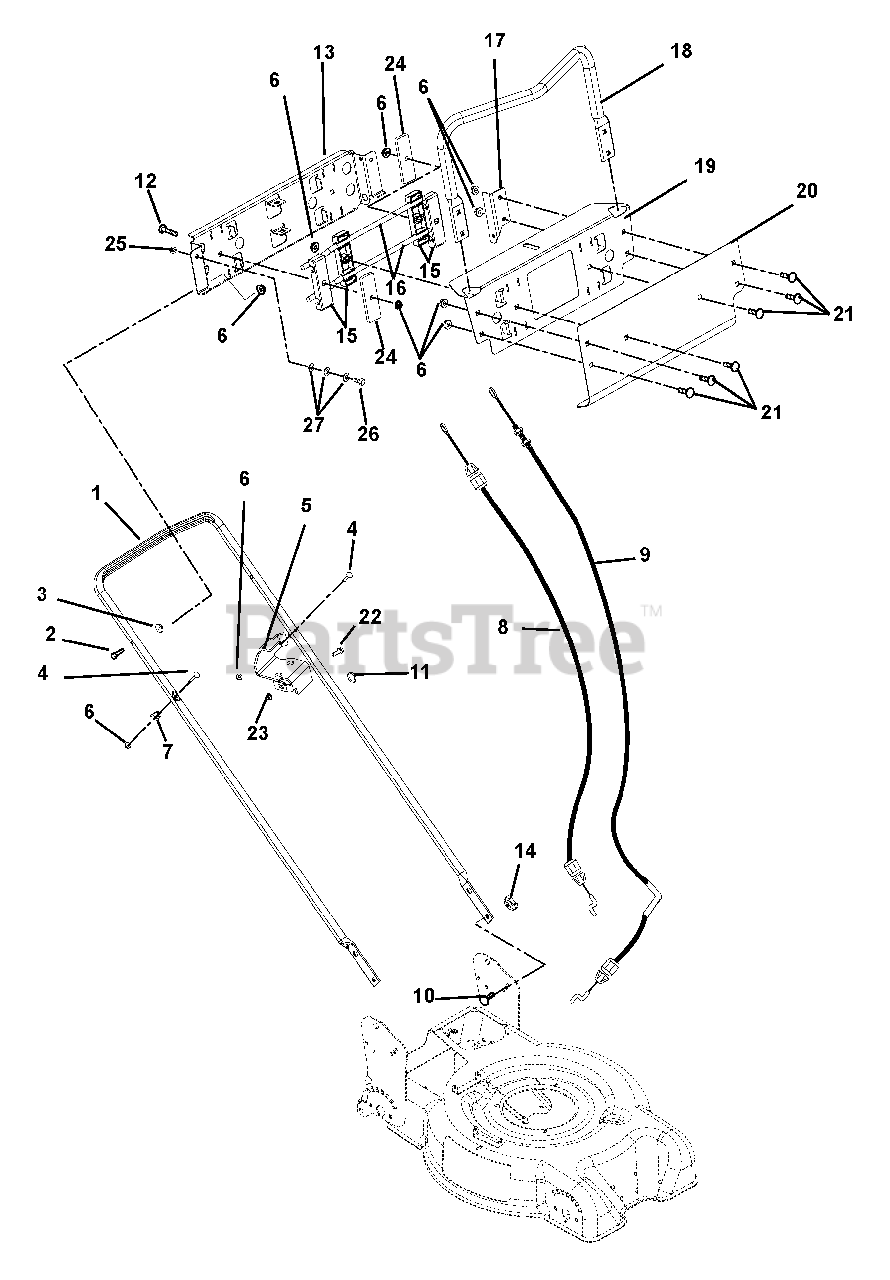

Handlebar And Controls - Deluxe Parts Diagram

  • Title

1

Gravely 01269051

Handlebar

$100.99

$

Usually ships in 4-12 days

0

2

Gravely 05964700

Bolt, Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

3

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

5

Gravely 01251051

Anchor, Cable Thumb Adjustment

$

$

Not available

6

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 01264900

Cable, Operator Presence

$25.99

$

Usually ships in 4-12 days

0

9

Gravely 01277800

Cable, Traction Thumb Adjustment

$68.99

$

In Stock, Qty 5

0

10

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 07539300

Clip, Conduit

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 00581051

Plate, Hinge

$

$

Not available

14

Gravely 07534800

Knob, Nyloc Clamping .312-18

$3.49

$

In Stock, Qty 20+

0

15

Gravely 00587100

Clamp, 4-Bar

$

$

Not available

16

Gravely 00581200

Rod, 4-Bar

$

$

Not available

17

Gravely 00586951

Bracket, Cable Anchor

$

$

Not available

18

Gravely 00584651

Bail, .750 Tube

$

$

Not available

19

Gravely 00581351

Cover, Operator Presence Control
(Superseded to 51112100)

$

$

Not available

20

Gravely 00595651

Cover, Sheetmetal

$

$

Not available

21

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00 Grade 5
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

23

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 01285151

Plate, Stiffening

$

$

Not available

25

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06442300

Washer, Flat Steel .25 x .562 x .049

$1.99

$

Usually ships in 4-12 days

0
