911121 (SSP 21) - Gravely 21" Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Handlerbar And Controls Parts Diagram

21" Walk-Behind Mower, 6.5hp Briggs & Stratton

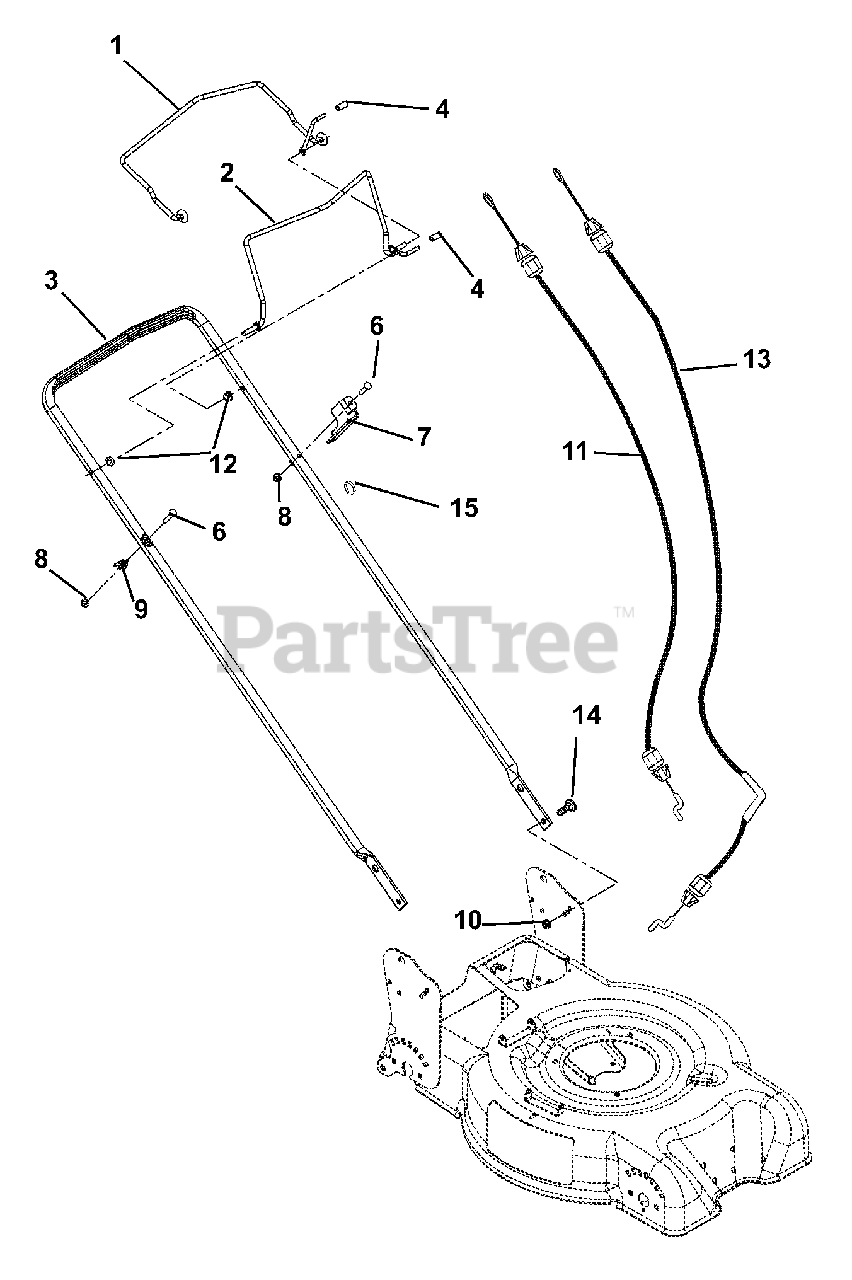

Handlerbar And Controls Parts Diagram

  • Title

1

Gravely 01263851

Bail, Drive

Note: (911121)

$

$

Not available

2

Gravely 01263751

Bail, Operator Presence

$60.99

$

Usually ships in 4-12 days

0

3

Gravely 01261351

Handlebar
(Superseded to 01269051)

$100.99

$

Usually ships in 4-12 days

0

4

Gravely 07517000

Cap, Vinyl .25 I.D.

Note: (911121)

$3.49

$

In Stock, Qty 10

0

5

Gravely 07517000

Cap, Vinyl .25 I.D.

Note: (911120)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 4 left!

0

7

Gravely 01256251

Anchor, Cable
(Superseded to 03882351)

$21.99

$

Usually ships in 4-12 days

0

8

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

10

Gravely 06530400

Nut, Flange Spinlock .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 01264400

Cable, Operator Presence

$34.99

$

Usually ships in 4-12 days

0

12

Gravely 05514500

Bushing-Flange .325 x .444 x.440 x.560

Note: (911120)

$3.99

$

In Stock, Qty 20+

0

13

Gravely 01264300

Cable, Traction
(Superseded to 71105900)

Note: (911121)

$90.99

$

Usually ships in 4-12 days

0

14

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 07539300

Clip, Conduit

$3.49

$

Usually ships in 4-12 days

0
