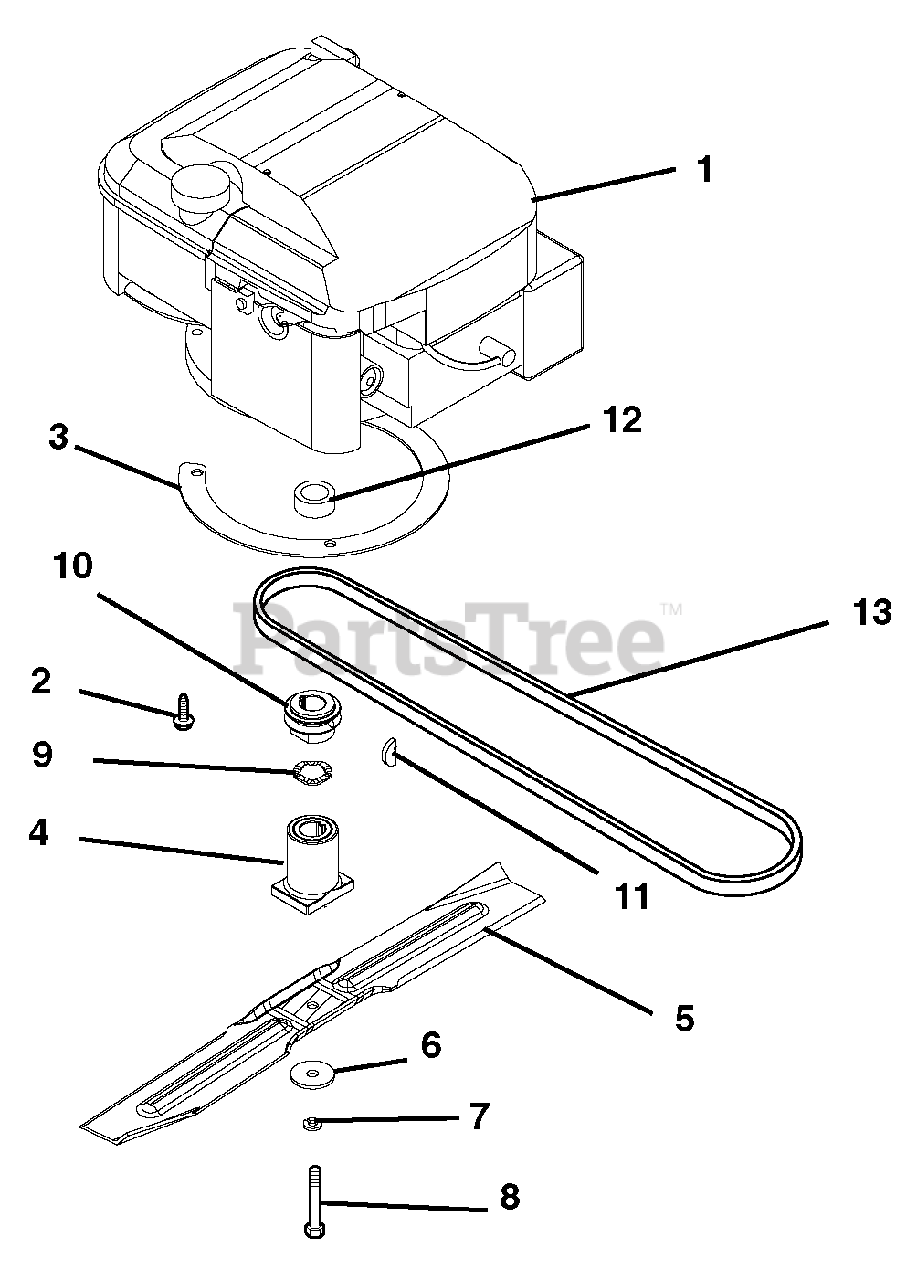

911120 (SP 21) - Gravely Home 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

Home 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 08268700

Engine, Briggs and Stratton Quantum 6.5 hp (Briggs Engine Model # - 123K02)

Note: (911120, 121)

$

$

Not available

1

Gravely 08270800

Engine, Honda GCV 160 5.5 hp (Honda Engine Model # - GCV160A)

Note: (911122)

$

$

Not available

1

Gravely 08200050

Engine, Honda GCV 160 5.5 hp, Electric Start (Honda Engine Model # - GCV160A)

Note: (911123)

$

$

Not available

2

Gravely 07414100

Screw-Tapping .38-16X1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 01268100

Ring, Engine Bolt

$

$

Not available

4

Gravely 09734700

Adapter, Blade Hub

Note: (911120, 121, 122)

$

$

Not available

4

Gravely 09735400

Adapter, Blade Hub

Note: (911123)

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 01252100

21" Mower Blade

$

$

Not available

6

Gravely 06441700

Washer, Flat Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

7

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05900029

Bolt, .38-24 x 2.5 Grade 8

Note: (911120, 121, 122)

$3.99

$

Usually ships in 4-12 days

0

8

0597600

Bolt, Hex .38-24 x 2.00 Grade 8

Note: (911123)

$

$

Not available

9

Gravely 01192900

Washer, Wave .885 x 1.311 x .125

Note: (911120, 121, 122)

$4.99

$

In Stock, Qty 6

0

9

Gravely 09250700

Washer, Wave 1.09 x 1.37 x .016

Note: (911123)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 09733100

Pulley-Sintered Iron LM
(Superseded to 04851300)

Note: (911121, 122)

$16.99

$

Usually ships in 4-12 days

0

10

Gravely 09735300

Pulley, 1" Crank Drive

Note: (911123)

$38.99

$

Usually ships in 4-12 days

0

11

Gravely 06600900

Key, Woodruff .156 x .625 x .25

Note: (911120, 121, 122)

$2.49

$

In Stock, Qty 12

0

11

Gravely 06601400

Key, Woodruff .188 x.625 x .25

Note: (911123)

$2.49

$

In Stock, Qty 8

0

12

Gravely 05500002

Spacer, .875 x 1.125 x .551

Note: (911121)

$9.99

$

Usually ships in 4-12 days

0

12

Gravely 05535100

Spacer, Honda Electric Start Crank

Note: (911123)

$

$

Not available

13

Gravely 07200019

V-Belt, 3L-Wrapped Clutching Belt

Note: (911122)

$29.99

$

In Stock, only 2 left!

0
