911112 (DSP 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Honda (SN: 002000 & Above) Handlebar And Controls - Deluxe Parts Diagram

21" Self-Propelled Walk-Behind Mower, 5.5hp Honda

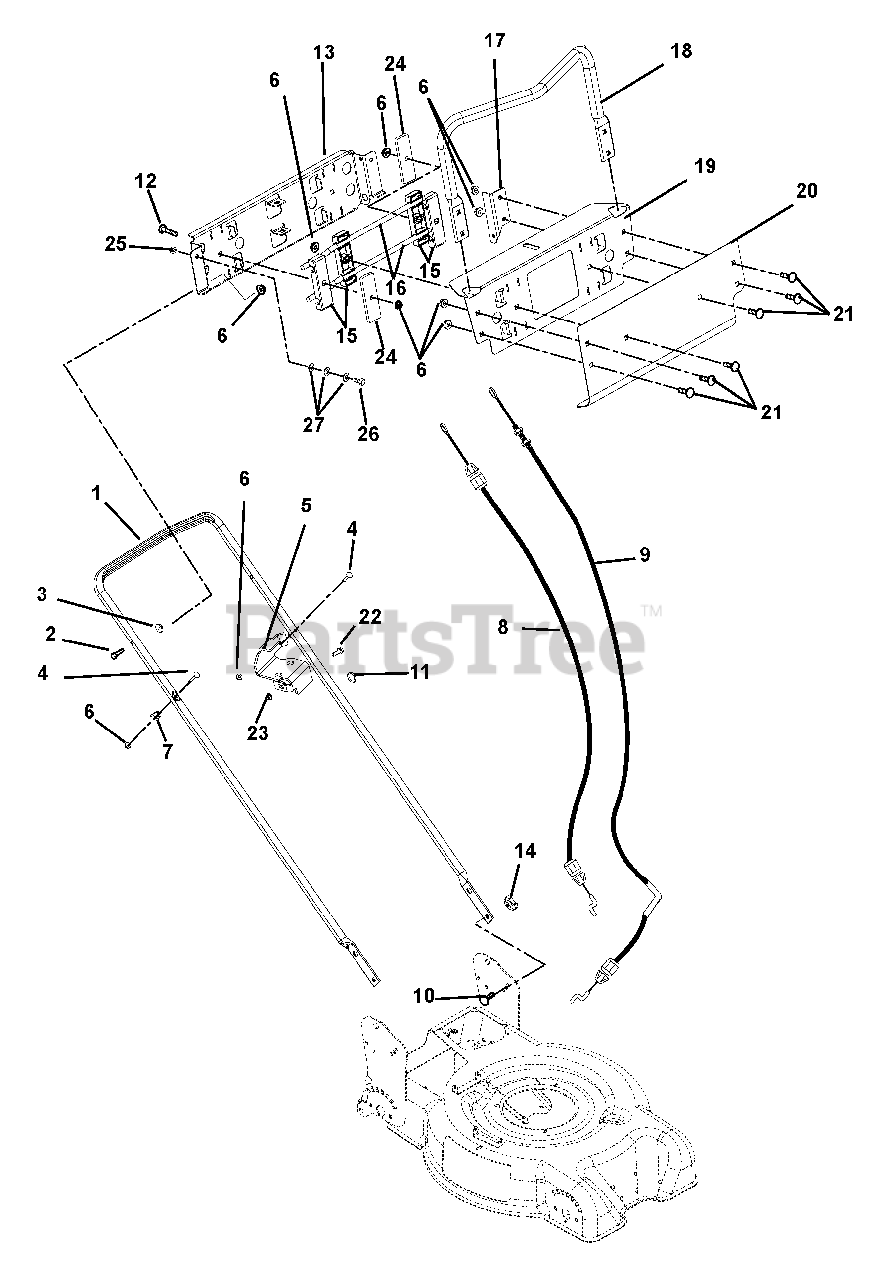

Handlebar And Controls - Deluxe Parts Diagram

  • Title
1

Ariens 01269051

HANDLEBAR, WBLM

$100.99

$

Usually ships in 4-12 days

0

2

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 1 left!

0

3

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 1 left!

0

5

Ariens 01251051

ANCHOR, CABLE - THUMB ADJUST

$

$

Not available

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

8

Ariens 01264900

CABLE, OPERATOR PRESENCE (DLX)

$25.99

$

Usually ships in 4-12 days

0

9

Ariens 01277800

CABLE, TRACTION - THUMB-ADJUST

$68.99

$

In Stock, Qty 5

0

10

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 07539300

CONDUIT CLIP

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

13

Ariens 00581051

PLATE,HINGE

$

$

Not available

14

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0

15

Ariens 00587100

CLAMP,4-BAR

$

$

Not available

16

Ariens 00581200

ROD,4-BAR

$

$

Not available

17

Ariens 00586951

BKT,CABLE ANCHOR

$

$

Not available

18

Ariens 00584651

BAIL .750 TUBE

$

$

Not available

19

Ariens 00581351

COVER,OP CONTROL
(Superseded to 51112100)

$

$

Not available

20

Ariens 00595651

BRKT, HOOD LH

$

$

Not available

21

Ariens 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

22

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

23

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 01285151

PLATE, STIFFENING

$

$

Not available

25

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

26

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.99

$

Usually ships in 4-12 days

0
