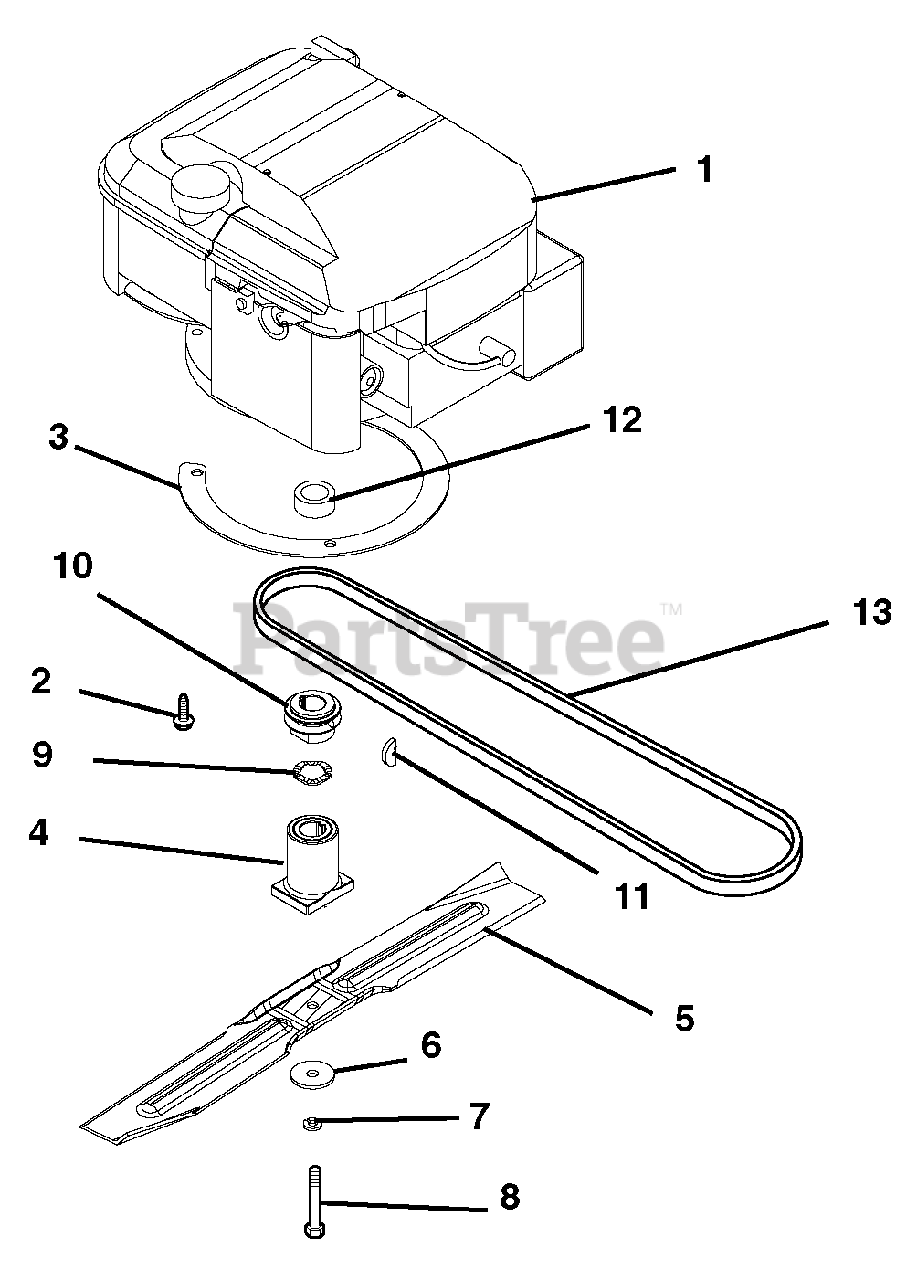

911110 (SP 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton Quantum (SN: 000101 - 001999) Engine, Blade And Belt Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton Quantum

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 08268700

ENGINE, B&S QUANTUM 6.5HP

Note: (Briggs Engine Model # - 123K02) (911110, 111)

$

$

Not available

1

Ariens 08270800

ENGINE, HONDA GCV

Note: (Honda Engine Model # - GCV160A) (911112)

$

$

Not available

1

Ariens 08200050

ENGINE, HONDA GCV EL START

Note: (Honda Engine Model # - GCV160A) (91113)

$

$

Not available

2

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 01268100

RING, ENGINE BOLT

$

$

Not available

4

Ariens 09734700

ADAPTER, BLADE HUB

Note: (911110, 111, 112)

$

$

Not available

4

Ariens 09735400

ADAPTER, 1" HONDA CRANK BLADE

Note: (911113)

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 01252100

21" MOWER BLADE

$

$

Not available

6

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

7

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05900029

BOLT, 3/8-24X2.5 G8

Note: (911110, 111, 112)

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 00597600

SUPPORT, TRANSAXLE

Note: (911113)

$

$

Not available

9

Ariens 01192900

WASHER-WAVE .885X1.311X.125

Note: (911110, 111, 112)

$4.99

$

In Stock, Qty 6

0

9

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

Note: (911113)

$3.49

$

In Stock, only 1 left!

0

10

Ariens 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

Note: (911111, 112)

$16.99

$

Usually ships in 4-12 days

0

10

Ariens 09735300

PULLEY, 1" HONDA CRANK DRIVE

Note: (911113)

$38.99

$

Usually ships in 4-12 days

0

11

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

Note: (911110, 111, 112)

$2.49

$

In Stock, Qty 12

0

11

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

Note: (911113)

$2.49

$

In Stock, Qty 6

0

12

Ariens 05500002

SPACER, .875X1.125X.551

Note: (991112)

$9.99

$

Usually ships in 4-12 days

0

12

Ariens 05535100

SPACER, HONDA ELEC START CRANK

Note: (991113)

$

$

Not available

13

Ariens 07200019

V-BELT, 3L-WRAPPED

Note: (911111, 112, 113)

$29.99

$

In Stock, only 2 left!

0
