911100 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda OHV (SN: 000101 & Above) Wheels And Height Adjusters Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda OHV

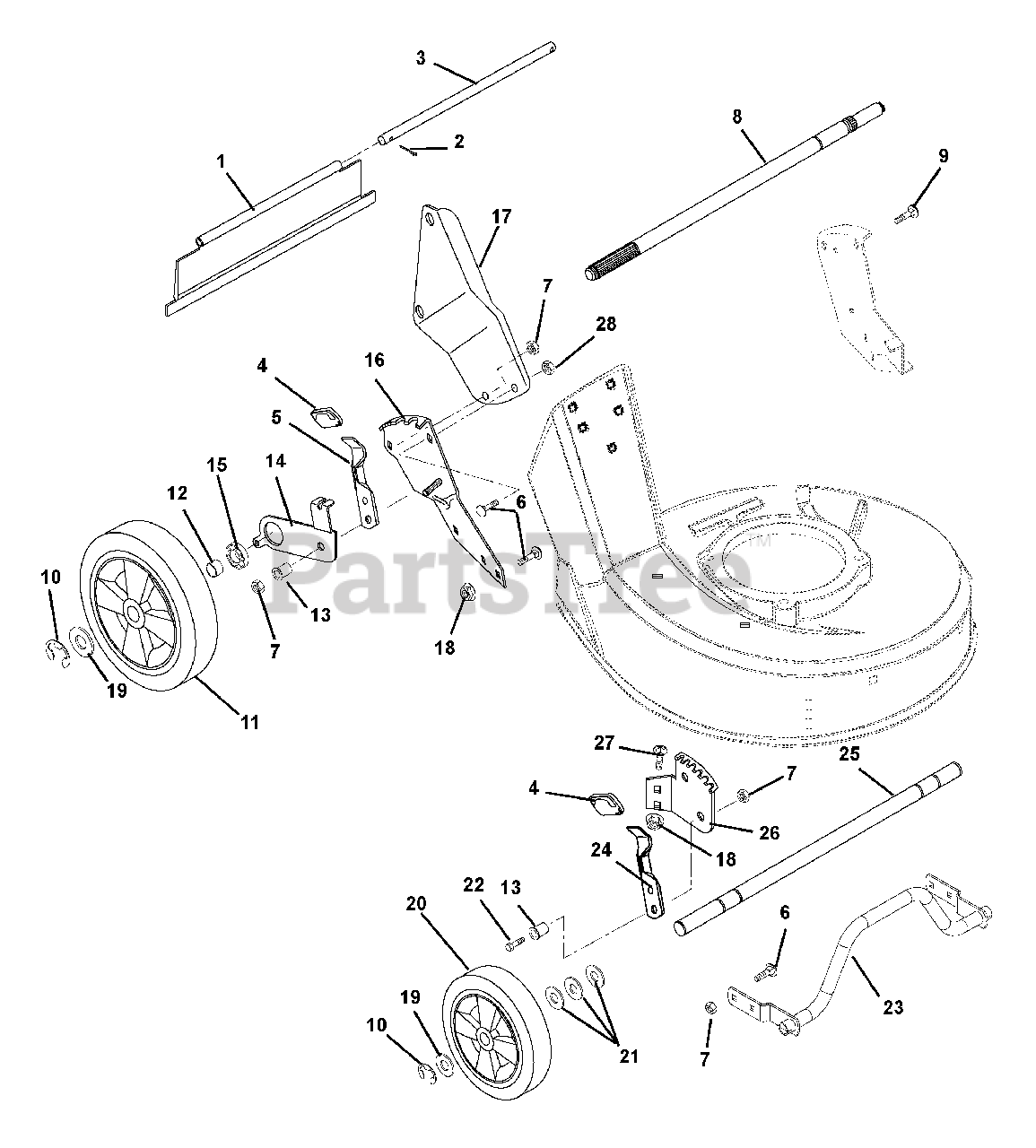

Wheels And Height Adjusters Parts Diagram

  • Title

1

Gravely 07522300

REAR PROTECTIVE GUARD, S.P.

$45.99

$

In Stock, only 1 left!

0

2

Gravely 06712400

PIN-CTR .06X.50 EXTPRSQCT YWZ

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 01140000

ROD
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

5

Gravely 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01149500

REAR AXLE,5/8 DIA

$140.99

$

Usually ships in 4-12 days

0

9

Gravely 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 07151200

WHL, LH 10.50"
(Superseded to 51115900)

$116.99

$

In Stock, only 1 left!

0

11

Gravely 07151500

WHL, RH 10.50"
(Superseded to 51115900)

$116.99

$

In Stock, only 1 left!

0

11

Gravely 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

$116.99

$

In Stock, only 1 left!

0

12

Gravely 01149600

SPACER TUBE, SELF PROPEL

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

14

Gravely 01130700

REAR ADJUSTMENT BRACKET L.H.

$

$

Not available

14

Gravely 01130800

REAR ADJUSTMENT BRACKET R.H.

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 01150400

REAR BRACKET & BEARING ASSY RH

$112.99

$

Usually ships in 4-12 days

0

15

Gravely 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 01154251

QUADRANT, REAR LH

$62.99

$

In Stock, only 1 left!

0

16

Gravely 01154351

QUADRANT, REAR RH

$55.99

$

Usually ships in 4-12 days

0

17

Gravely 01177451

RH HANDLEBAR MOUNT WELDMENT

$

$

Not available

17

Gravely 01177551

LH HANDLEBAR MOUNT WELDMENT

$155.99

$

Usually ships in 4-12 days

0

18

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 07149900

WHL 7.50" .50 BORE, 1.50 HUB

$25.99

$

In Stock, Qty 20+

0

21

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

22

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 01242751

GUARD, LM VALVE COVER

$170.99

$

In Stock, only 1 left!

0

24

Gravely 01120000

FRONT HEIGHT ADJUSTMENT LEVER

$20.99

$

In Stock, only 1 left!

0

25

Gravely 01168900

FRONT AXLE

$64.99

$

Usually ships in 4-12 days

0

26

Gravely 01154051

FRONT QUADRANT, LH

$51.99

$

In Stock, only 1 left!

0

26

Gravely 01154151

FRONT QUADRANT, RH

$

$

Not available

27

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
