911100 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda OHV (SN: 000101 & Above) Swivel Wheels And Brackets Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda OHV

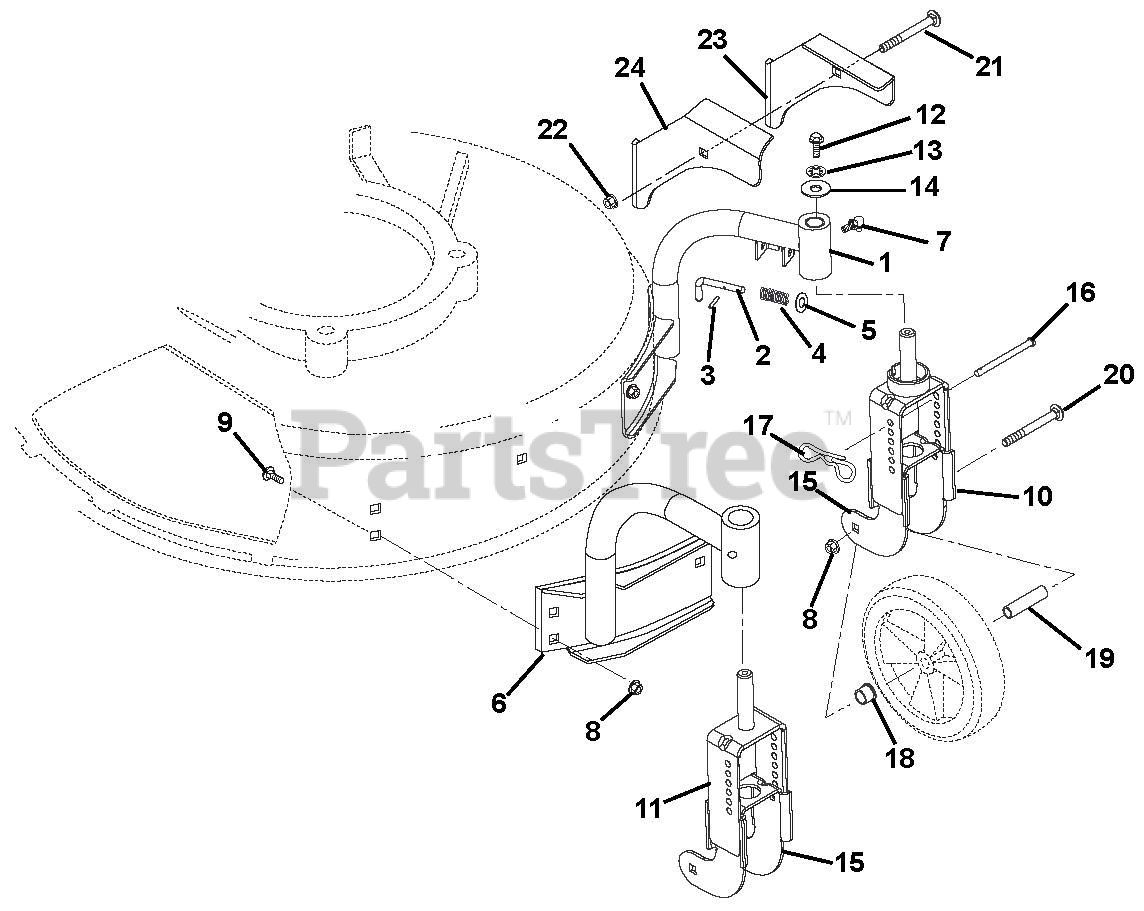

Swivel Wheels And Brackets Parts Diagram

  • Title

1

Gravely 01196859

ASSY, MOUNT LH W/BUSHINGS

Note: Assembly, Mount Left Hand With Bushings

$180.99

$

Usually ships in 4-12 days

0

2

Gravely 01196900

PIN, LOCKOUT

Note: Pin, Lockout

$18.99

$

In Stock, only 1 left!

0

3

Gravely 05808100

PIN-ROLL .094X.750

Note: Pin, Roll .094 x .75

$0.99

$

In Stock, only 2 left!

0

4

Gravely 08337300

SPRG, COMP--SWVL LOCKOUT

Note: Spring, Compression - Swivel Lockout

$3.49

$

In Stock, only 2 left!

0

5

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: Washer, Flat Steel .281 x .62 x .065

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01197559

ASSY, RH MOUNT W/BUSHINGS

Note: Assembly, Right Hand Mount With Bushings

$168.99

$

Usually ships in 4-12 days

0

7

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

Note: Fitting, Lube .25-28 x .256

$

$

Not available

8

Gravely 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

Note: Nut, Spin Lock Flange .312-18

$1.49

$

In Stock, Qty 20+

0

9

Gravely 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: Bolt, Round Head Square Neck .31-18 x .50 Grade 5

$2.99

$

In Stock, Qty 20+

0

10

Gravely 01196759

YOKE, OUTER LH

Note: Yoke, Left Hand Outer

$

$

Not available

11

Gravely 01197459

YOKE, RH OUTER

Note: Yoke, Right Hand Outer

$50.99

$

In Stock, only 2 left!

0

12

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: Bolt, Hex .25-20 x .75 Grade 5

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: Washer, Locking .25 x .062 Regular

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

Note: Washer, Flat Steel .28 x 1.00 x .063

$0.99

$

In Stock, Qty 20+

0

15

Gravely 01196600

YOKE-INNER

Note: Yoke, Inner

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 06817100

PIN, HEIGHT ADJUSTMENT

Note: Pin, Height Adjustment

$3.99

$

In Stock, Qty 13

0

17

Gravely 06700001

PIN, BOW TIE LOCKING COTTER

Note: Pin, Bow Tie Locking Cotter

$2.99

$

In Stock, Qty 17

0

18

Gravely 05502100

BSHG-FLG .500X.625X.500X.750

Note: Bushing, Flange .50 x .625 x .50 x .75

$3.99

$

In Stock, Qty 20+

0

19

Gravely 05533500

SPCR, WHEEL .385X.500X2.00

Note: Spacer, Wheel

$9.49

$

Usually ships in 4-12 days

0

20

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

Note: Bolt, Round Head Square Neck .31-18 x 2.75

$2.99

$

In Stock, only 4 left!

0

21

Gravely 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

Note: Bolt, Round Head Square Neck .25-20 x 1.50 Grade 5

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: Nut, Locking Flange .25-20

$0.99

$

In Stock, Qty 20+

0

23

Gravely 01197359

BRACKET, HOOD CABLE--LH

Note: Bracket, Hood Cable Left Hand

$

$

Not available

24

Gravely 01198159

BRACKET, HOOD CABLE WELDMENT

Note: Bracket, Hood Cable Right Hand

$

$

Not available
