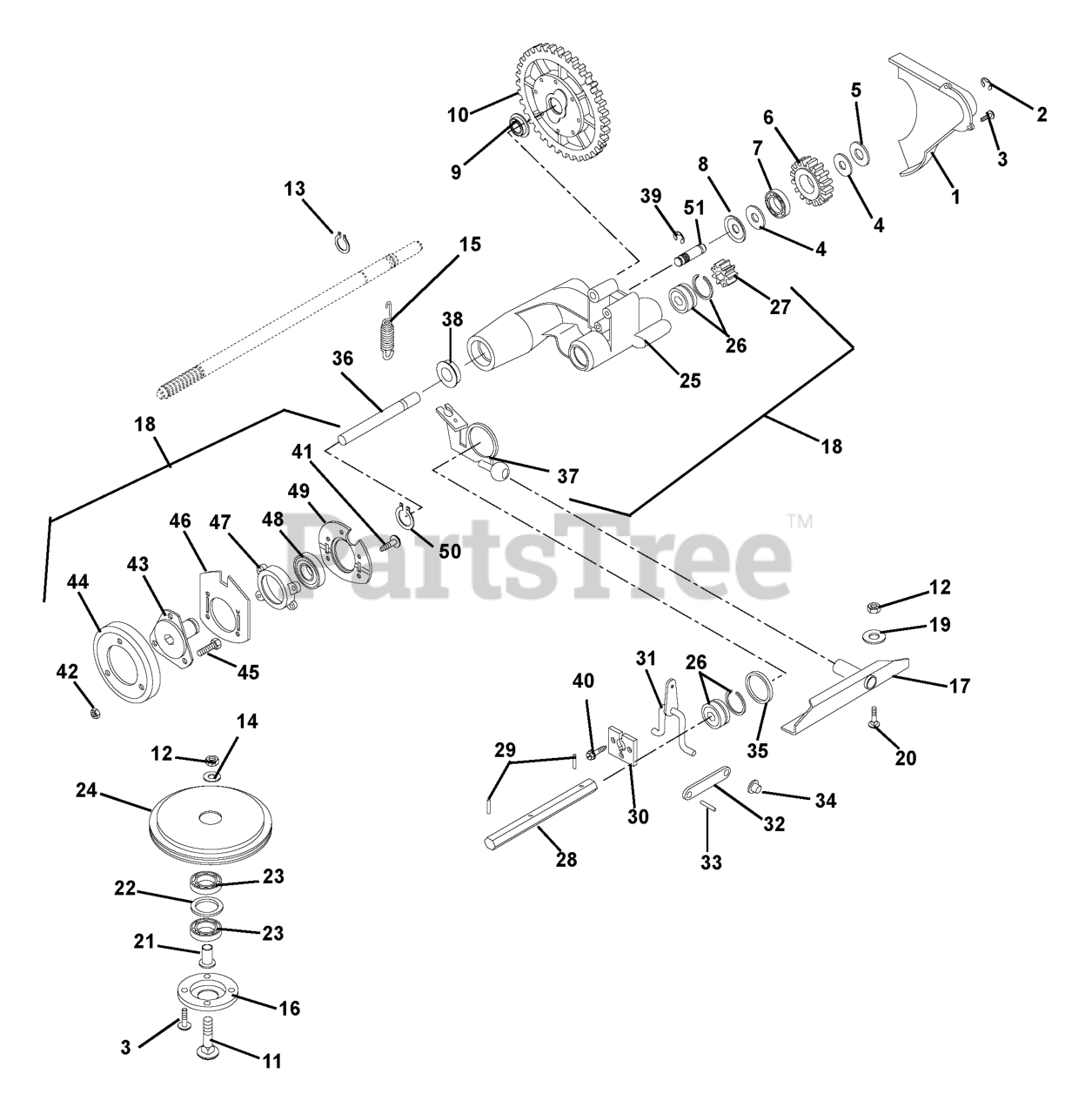

911100 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda OHV (SN: 000101 & Above) Friction Wheel And Drive Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda OHV

Friction Wheel And Drive Parts Diagram

  • Title

1

Gravely 01121051

COVER, GEAR

$38.99

$

Usually ships in 4-12 days

0

2

Gravely 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

3

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

4

Gravely 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 01131700

IDLER GEAR

$51.99

$

Usually ships in 4-12 days

0

7

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Available as individual components or part of 51105600 Service Kit which consists of (2) 05435100, (1) 05408000, (2) 05413700 and (2) 05417600.

$5.99

$

In Stock, Qty 15

0

8

Gravely 01135100

RETAINER

$12.99

$

In Stock, only 1 left!

0

9

Gravely 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: Available as individual components or part of 51105600 Service Kit which consists of (2) 05435100, (1) 05408000, (2) 05413700 and (2) 05417600.

$17.99

$

Usually ships in 4-12 days

0

10

Gravely 51102400

DIFFERENTIAL ASSEMBLY

$179.99

$

In Stock, only 1 left!

0

11

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 4 left!

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05711900

RG-RTNG-EXT .579X.035

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

15

Gravely 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

16

Gravely 01127500

RETAINER - BEARING

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 01161951

PIVOT, CHANNEL WELDMENT

$49.99

$

Usually ships in 4-12 days

0

18

Gravely 51108900

KIT, LM DRIVE CARRIER

Note: (Includes Items 25 - 52)

$439.99

$

Usually ships in 4-12 days

0

19

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 01127400

SPINDLE - BEARING

$19.99

$

In Stock, Qty 7

0

22

Gravely 06420200

WSHR-FL-STL 1.062X1.344X.032PL

$4.49

$

In Stock, Qty 7

0

23

Gravely 05435100

BRG-BALL .625X1.375X.43

Note: Available as individual components or part of 51105600 Service Kit which consists of (2) 05435100, (1) 05408000, (2) 05413700 and (2) 05417600.

$14.99

$

In Stock, Qty 20+

0

24

Gravely 01127300

FRICTION SHEAVE

$

$

Not available

25

Gravely 01158700

DRIVE CARRIER
(Superseded to 01140600)

$111.99

$

In Stock, only 1 left!

0

26

Gravely 05413700

BRG-BALL .562X1.375X.437

$29.99

$

In Stock, only 1 left!

0

27

Gravely 02201100

PINION

$10.99

$

In Stock, only 1 left!

0

28

Gravely 01240100

SHAFT, HEX

$66.99

$

Usually ships in 4-12 days

0

29

Gravely 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

30

Gravely 01125000

RETAINER PLATE

$

$

Not available

31

Gravely 01123600

SHIFT ARM WELDMENT

$23.99

$

Usually ships in 4-12 days

0

32

Gravely 01124200

SHIFT LINK

$7.99

$

In Stock, Qty 5

0

33

Gravely 05803500

PIN-ROLL .125X.50

$0.99

$

In Stock, Qty 10

0

34

Gravely 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

35

Gravely 06421600

WSHR-FL-STL 1.390X2.00X.020 PL

$2.99

$

In Stock, only 1 left!

0

36

Gravely 01125100

ROD - GUIDE

$73.99

$

Usually ships in 4-12 days

0

37

Gravely 01245700

ACTUATOR, WBLM DRIVE

$39.99

$

Usually ships in 4-12 days

0

38

Gravely 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: Available as individual components or part of 51105600 Service Kit which consists of (2) 05435100, (1) 05408000, (2) 05413700 and (2) 05417600.

$17.99

$

Usually ships in 4-12 days

0

39

Gravely 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

40

Gravely 07411900

SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

41

Gravely 07415100

SCR-TAP 5HX-0.8X16MM H-FL-YWZC

$3.49

$

Usually ships in 4-12 days

0

42

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 01133500

FRICTION WHEEL HUB

$59.99

$

Usually ships in 4-12 days

0

44

Gravely 03248300

DISC, FRICTION - 730 MAT'L

$39.99

$

In Stock, Qty 20+

0

45

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

46

Gravely 00174500

PLATE, BEARING

$13.99

$

Usually ships in 4-12 days

0

47

Gravely 01131800

BEARING RETAINER

$20.99

$

Usually ships in 4-12 days

0

48

Gravely 05416000

BRG-BALL 1.0X2.0X.56 (1641)

$14.99

$

In Stock, only 3 left!

0

49

Gravely 01119200

BEARING RETAINER

$7.49

$

Usually ships in 4-12 days

0

50

Gravely 05706200

RG-RTNG-EXT 1.00X.042

$2.49

$

In Stock, only 1 left!

0

51

Gravely 01139700

IDLER SHAFT

$30.99

$

In Stock, only 3 left!

0
