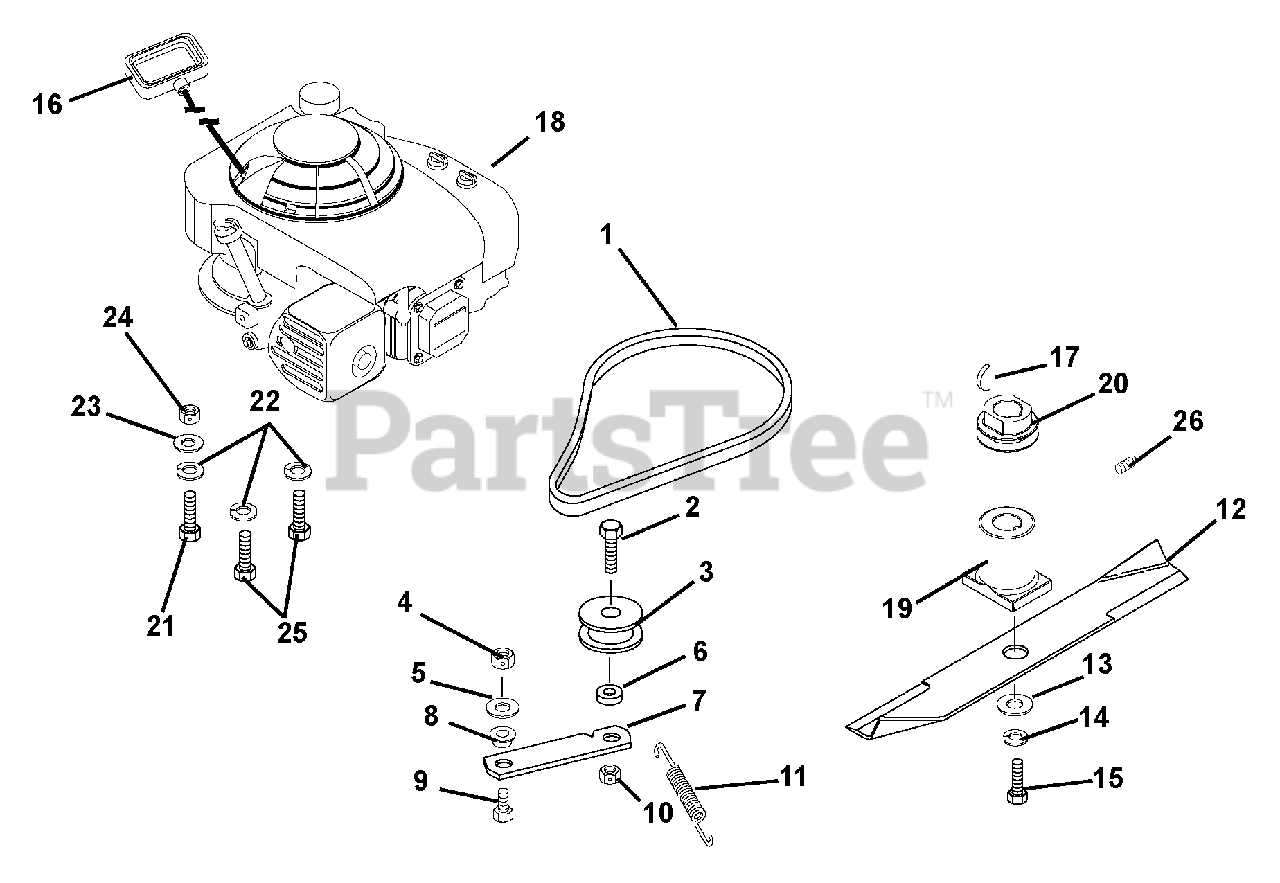

911100 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda OHV (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda OHV

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-BELT, 3L-COGGED

$34.99

$

In Stock, Qty 6

0

2

Gravely 05962800

BLT-HEX .44-14X1.50 GR5 YWZC
(Superseded to 05901633)

$3.49

$

In Stock, Qty 11

0

3

Gravely 07313300

IDLER-FLAT 1.75 X .47

$35.99

$

In Stock, Qty 7

0

4

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05533300

BSHG-SLV .469 X .750 X .430

$3.99

$

In Stock, Qty 11

0

7

Gravely 01141200

IDLER ARM

$22.99

$

In Stock, only 2 left!

0

8

Gravely 05515400

BSHG-FLG .325X.501X.250X1.120

$3.99

$

In Stock, only 1 left!

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06536400

NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

11

Gravely 08321100

SG-TENS .043X.44X3.31 WLD 5.8

$6.49

$

In Stock, Qty 6

0

12

Gravely 01137000

21" MOWER BLADE

$25.99

$

In Stock, Qty 20+

0

Gravely 01182400

BLADE, 21" MOWER TUNGSTEN
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

14

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

16

Gravely 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0

17

Gravely 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

18

Gravely 08270500

ENGINE - HONDA 5.5 HP OHV

$

$

Not available

19

Gravely 09733300

ADAPTER - BLADE HUB

$

$

Not available

20

Gravely 09733400

PULLEY - UNV DRIVE - STEEL

$103.99

$

Usually ships in 4-12 days

0

21

Gravely 05963500

BLT-HEX .31-24X1.50 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 13

0

Gravely 08270501

FILTER - AIR (HONDA GXV160)

Note: NS

$

$

Not available

Gravely 08270502

PLUG - SPARK (HONDA GXV160)

Note: NS

$4.99

$

Usually ships in 4-12 days

0
