911076 (SLM 241) - Ariens 21" Push Walk-Behind Mower, 5.5hp Tecumseh (SN: 000101 & Above) Wheels & Adjusters Parts Diagram

21" Push Walk-Behind Mower, 5.5hp Tecumseh

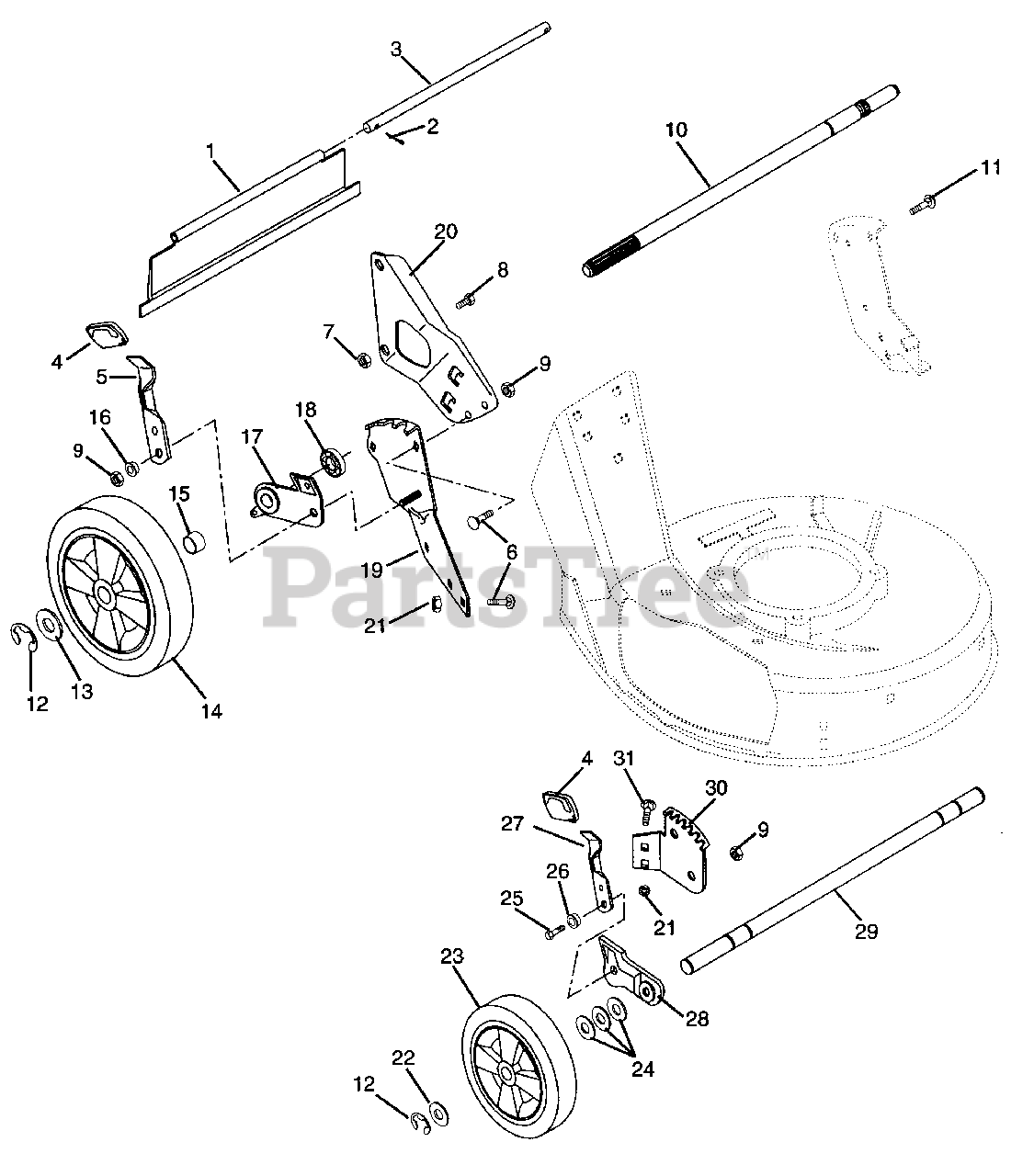

Wheels & Adjusters Parts Diagram

  • Title

1

Ariens 07522400

REAR PROTECTIVE GUARD, PUSH

Note: (076,304,463,467)

$35.99

$

Usually ships in 4-12 days

0

Ariens 07522300

REAR PROTECTIVE GUARD, S.P.

Note: (Not 076,304,463,467)

$45.99

$

In Stock, only 1 left!

0

2

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

Note: (076,304,463,467)

$3.99

$

Usually ships in 4-12 days

0

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

Note: (Not 076,304,463,467)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01140000

ROD
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 07513600

KNOB

Note: (Not 070,071,073,314,317)

$7.99

$

In Stock, only 2 left!

0

Ariens 07513600

KNOB

Note: (070,071,073,314,317)

$7.99

$

In Stock, only 2 left!

0

5

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

Note: (Not 475)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 01167100

HANDLEBAR STUD

Note: (Not 475)

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Not 070,071,073,314,317)

$1.49

$

In Stock, Qty 20+

0

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (070,071,073,314,317)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (Not 076,304,463,467)

$140.99

$

Usually ships in 4-12 days

0

Ariens 01171900

REAR AXLE-PUSH MOWER MM

Note: (076,467)

$50.99

$

Usually ships in 4-12 days

0

Ariens 01168800

REAR AXLE-PUSH MOWER

Note: (304,463)

$

$

Not available

11

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (Not 070,071,073,314,317)

$0.99

$

In Stock, Qty 20+

0

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (070,071,073,314,317)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05405600

USE 06405600
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07106100

LH WHEEL
(Superseded to 51115900)

Note: (069,070,071,072,073,077, 308,311,312,313,314,315, 317,318,320,468,469)

$116.99

$

In Stock, only 1 left!

0

Ariens 07106300

RH WHEEL
(Superseded to 51115900)

Note: (069,070,071,072,073,077, 308,311,312,313,314,315, 317,318,320,468,469)

$116.99

$

In Stock, only 1 left!

0

Ariens 07105100

WHEEL

Note: (304)

$

$

Not available

Ariens 07140700

RH REAR WHEEL
(Superseded to 51115900)

Note: (475)

$116.99

$

In Stock, only 1 left!

0

Ariens 07140800

LH REAR WHEEL
(Superseded to 51115900)

Note: (475)

$116.99

$

In Stock, only 1 left!

0

Ariens 07138100

TIRE 10X1.75

Note: (076,467)

$

$

Not available

Ariens 07145600

REAR WHEEL 10.00 X 2.00

Note: (463)

$

$

Not available

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

$116.99

$

In Stock, only 1 left!

0

15

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (076,304,463,467)

$12.99

$

Usually ships in 4-12 days

0

Ariens 01149800

SPACER TUBE PUSH RH

Note: (076,304,463,467)

$3.99

$

Usually ships in 4-12 days

0

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (Not 076,304,463,467)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

17

Ariens 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (076,304,467)

$60.99

$

Usually ships in 4-12 days

0

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (069,070,071,072,073,077, 308,311,312,313,314,315, 317,318,320,468,469)

$112.99

$

Usually ships in 4-12 days

0

Ariens 01168700

REAR BRACKET&BEARING ASSY COMM

Note: (463)

$

$

Not available

Ariens 01168600

REAR BRACKET&BEARING ASSY COMM

Note: (463)

$

$

Not available

Ariens 01158100

R.H. REAR ADJUSTOR BRACKET

Note: (475)

$62.99

$

Usually ships in 4-12 days

0

Ariens 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (076,304,467)

$53.99

$

Usually ships in 4-12 days

0

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (069,070,071,072,073,077, 308,311,312,313,314,315, 317,318,320,468,469)

$

$

Not available

Ariens 01158200

L.H. REAR ADJUSTOR BRACKET

Note: (475)

$54.99

$

Usually ships in 4-12 days

0

18

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (475)

$17.99

$

Usually ships in 4-12 days

0

19

Ariens 01154200

QUADRANT, REAR - L.H.
(Superseded to 01154251)

$62.99

$

In Stock, only 1 left!

0

Ariens 01154300

REAR QUADRANT, R.H.
(Superseded to 01154351)

$55.99

$

Usually ships in 4-12 days

0

20

Ariens 01137200

RH HANDLEBAR MTG. BRKT.
(Superseded to 01137251)

$50.99

$

In Stock, only 1 left!

0

Ariens 01177400

RH HANDLEBAR MOUNT WELDMENT
(Superseded to 01177451)

Note: (463,475 only)

$

$

Not available

Ariens 01137100

LH HANDLEBAR MTG. BRKT.
(Superseded to 01137151)

$55.99

$

Usually ships in 4-12 days

0

Ariens 01177500

LH HANDLEBAR MOUNT BRKT WELDM
(Superseded to 01177551)

Note: (463,475 only)

$155.99

$

Usually ships in 4-12 days

0

21

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 07120100

WHEEL
(Superseded to 51116000)

Note: (Not 076,463,467,475)

$67.99

$

In Stock, only 1 left!

0

Ariens 07138000

TIRE 7X1.50

Note: (076,467)

$10.99

$

Usually ships in 4-12 days

0

Ariens 07141000

WHEEL 7X1.75

Note: (463,475)

$19.99

$

Usually ships in 4-12 days

0

24

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (Not 070,071,073,314,317)

$2.49

$

In Stock, only 2 left!

0

25

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

Note: (Not 070,071,073,314,317)

$2.49

$

In Stock, only 2 left!

0

26

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

Note: (Not 070,071,073,314,317)

$2.49

$

In Stock, only 3 left!

0

27

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (069,072,076,077,304,308, 311,312,313,315,317,318, 320,463,467,468,469,475)

$20.99

$

In Stock, only 1 left!

0

28

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (069,072,076,077,304,308, 311,312,313,315,318,320,467,468,469)

$83.99

$

Usually ships in 4-12 days

0

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (069,072,076,077,304,308, 311,312,313,315,318,320,467,468,469)

$64.99

$

In Stock, only 1 left!

0

Ariens 01176800

RH ADJUSTER BRACKET

Note: (463,475)

$64.99

$

Usually ships in 4-12 days

0

Ariens 01176900

LH ADJUSTER BRACKET

Note: (463,475)

$48.99

$

Usually ships in 4-12 days

0

29

Ariens 01168900

FRONT AXLE

Note: (069,072,076,077,304,308,311,312,313,315,318,320, 463,467,468,469,475)

$64.99

$

Usually ships in 4-12 days

0

30

Ariens 01154000

FRONT QUADRANT, L.H.
(Superseded to 01154051)

Note: (069,072,076,077,304,308, 311,312,313,315,318,320, 463,467,468,469,475)

$51.99

$

In Stock, only 1 left!

0

Ariens 01154100

FRONT QUADRANT, R.H.
(Superseded to 01154151)

Note: (069,072,076,077,304,308, 311,312,313,315,318,320, 463,467,468,469,475)

$

$

Not available

31

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

Note: (Not 070,071,073,314,317)

$2.99

$

In Stock, Qty 20+

0
