911075 (DLM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Briggs & Stratton (SN: 000101 & Above) Swivel Wheels And Brackets Parts Diagram

21" Self-Propelled Walk-Behind Mower, 5.5hp Briggs & Stratton

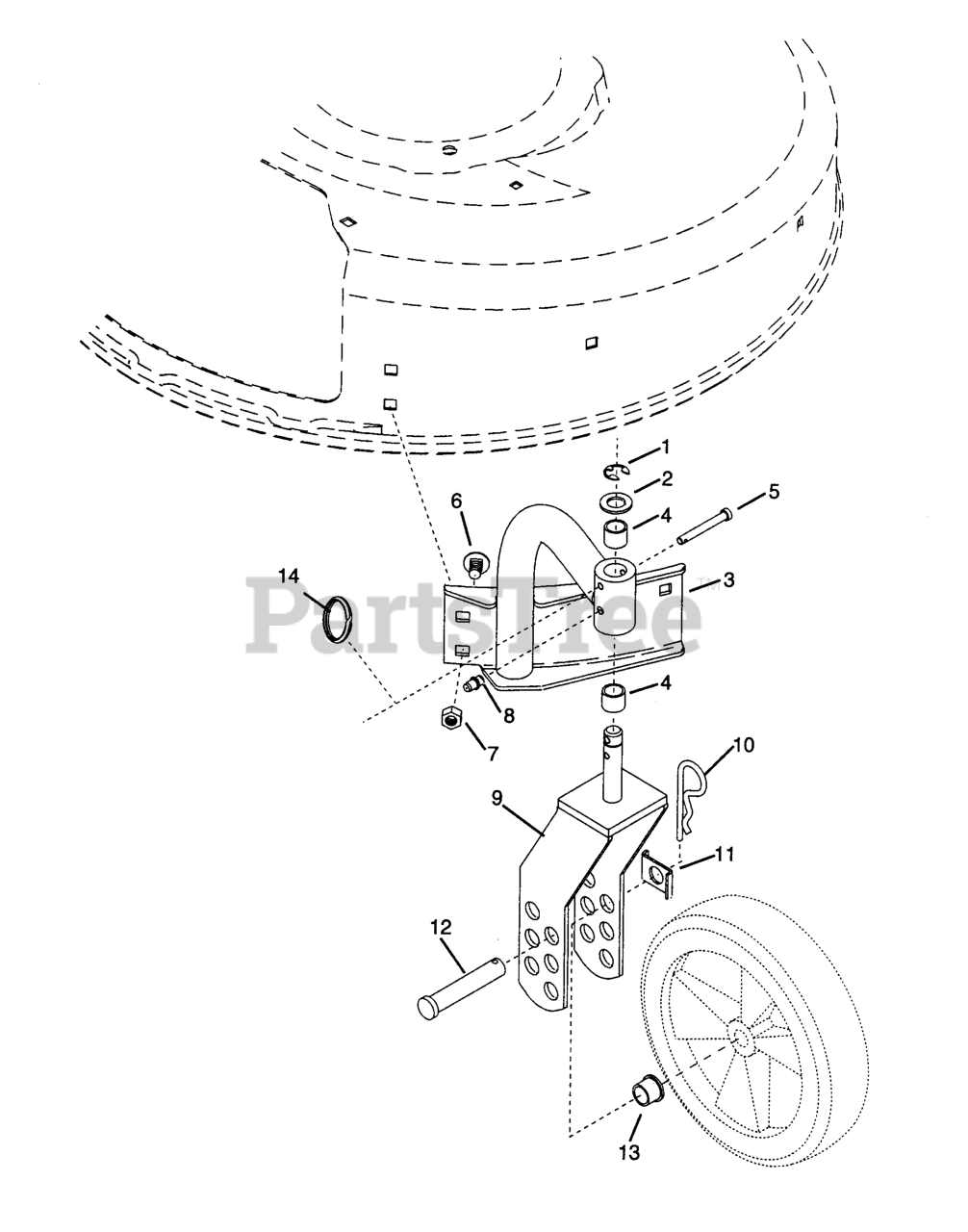

Swivel Wheels And Brackets Parts Diagram

  • Title

1

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 01169400

RIGHT MOUNT ARM WELDMENT
(Superseded to 01185259)

$94.99

$

Usually ships in 4-12 days

0

Ariens 01169500

LEFT MOUNT ARM WELDMENT
(Superseded to 01189559)

$94.99

$

Usually ships in 4-12 days

0

4

Ariens 05504700

BSHG-SLV .625X.750X.500 BR

$11.99

$

In Stock, only 1 left!

0

5

Ariens 06814600

PIN-CLEV .25X1.75 YWZC

$3.99

$

In Stock, Qty 6

0

6

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

8

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

9

Ariens 01169300

WHEEL YOKE WELDMENT
(Superseded to 01169359)

$149.99

$

In Stock, only 1 left!

0

10

Ariens 06713200

PIN-HAIR-INT .15X.43X2.75 YWZC
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

11

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

12

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

13

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

14

Ariens 01169200

KICKOUT RING YWZC
(Superseded to 01239800)

$2.49

$

In Stock, only 2 left!

0
