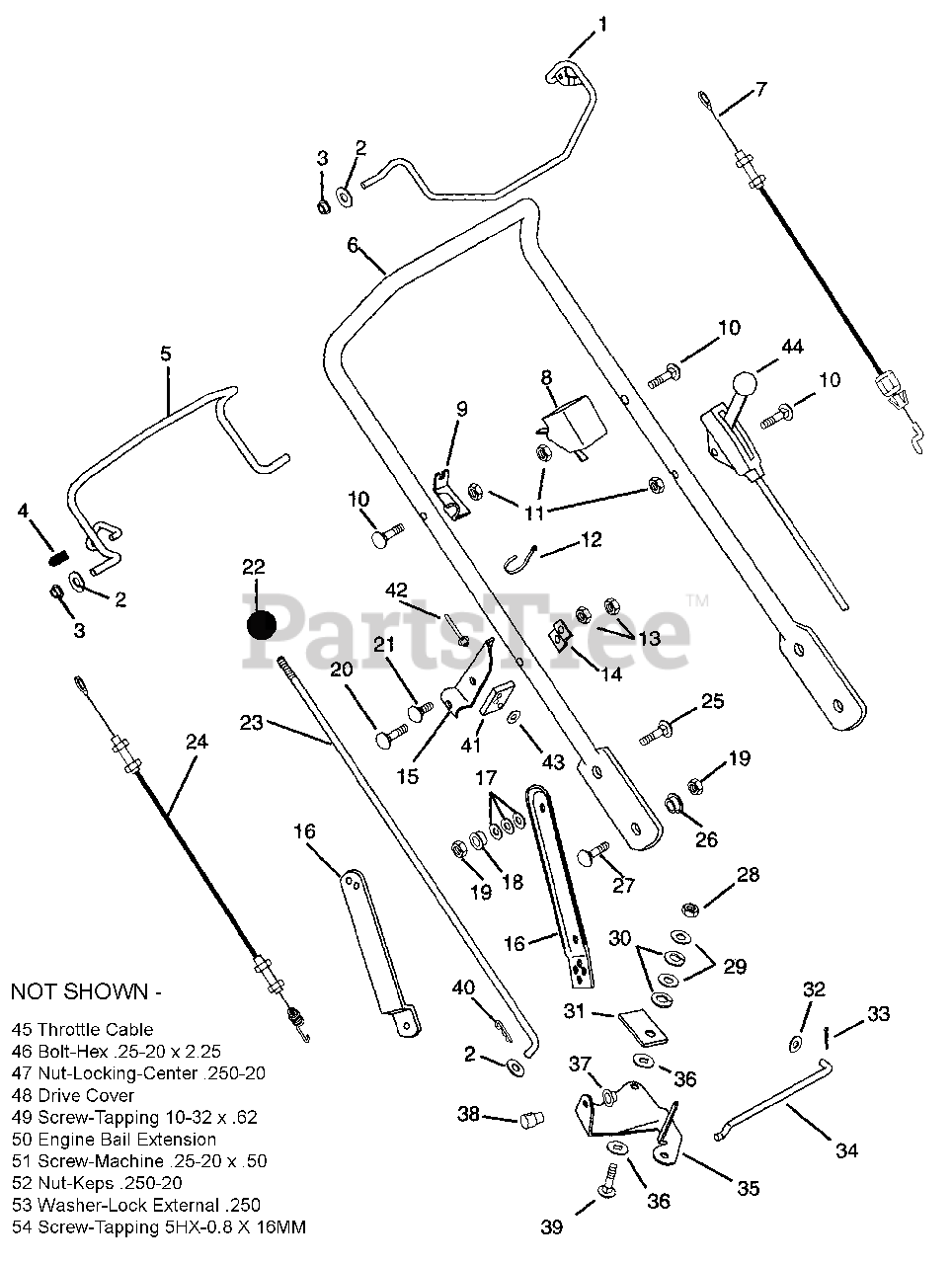

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01177651

ENGINE BAIL TEC. 2 CYCLE

Note: (Used Only On Model(s): 318).

$

$

Not available

1

Ariens 01177251

ENGINE BAIL

Note: (Used Only On Model(s): 065,067,068,069,070,071,072,073,304,311,312).

$

$

Not available

1

Ariens 01177251

ENGINE BAIL

Note: (Used Only On Model(s): 313,314,315,316,317,319,467,468,469,470,471,472,473).

$

$

Not available

2

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

5

Ariens 01177051

TRACTION BAIL
(Superseded to 51109900)

$190.99

$

Usually ships in 4-12 days

0

6

Ariens 01177800

HANDLEBAR PUSH
(Superseded to 01245351)

Note: (Used Only On Model(s): 067,304,467).

$

$

Not available

6

Ariens 01177900

HANDLEBAR SELF-PROPELLED
(Superseded to 01245351)

Note: (Used Only On Model(s): 312,313,314,315,316,317,318,319).

$

$

Not available

6

Ariens 01177900

HANDLEBAR SELF-PROPELLED
(Superseded to 01245351)

Note: (Used Only On Model(s): 468,469,470,471,472,473).

$

$

Not available

6

Ariens 01177900

HANDLEBAR SELF-PROPELLED
(Superseded to 01245351)

Note: (Used Only On Model(s): 065,068,069,070,071,072,073,311,312).

$

$

Not available

7

Ariens 06921100

ENGINE CONTROL CABLE

Note: (Used Only On Model(s): 067,068,071,072,073,312,313).

$34.99

$

In Stock, only 1 left!

0

7

Ariens 06921100

ENGINE CONTROL CABLE

Note: (Used Only On Model(s): 314,315,467,468,471,472,473).

$34.99

$

In Stock, only 1 left!

0

7

Ariens 06922000

ENGINE CONTROL CABLE
(Superseded to 06947700)

Note: (Used Only On Model(s): 069,070,304,311,319,469,470).

$22.99

$

In Stock, only 1 left!

0

7

Ariens 06931100

ENGINE CABLE KAWASAKI

Note: (Used Only On Model(s): 065,316,317).

$

$

Not available

7

Ariens 06926500

ENGINE CABLE

Note: (Used Only On Model(s): 318).

$

$

Not available

8

Ariens 01156400

SWITCH-CABLE ANCHOR
(Superseded to 01156451)

Note: (Used Only On Model(s): 071,315,471).

$

$

Not available

9

Ariens 01137500

CABLE ANCHOR

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$

$

Not available

9

Ariens 01137500

CABLE ANCHOR

Note: (Used Only On Model(s): 311,312,313,314,315,316,317).

$

$

Not available

9

Ariens 01137500

CABLE ANCHOR

Note: (Used Only On Model(s): 318,319,468,469,470,471,472,473).

$

$

Not available

9

Ariens 01155700

CABLE ANCHOR-LH
(Superseded to 01245651)

$

$

Not available

10

Ariens 06209400

BLT-RDHDSQNK .25-20X1.25 XLGPL
(Superseded to 06220100)

$2.49

$

In Stock, only 1 left!

0

11

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

12

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

13

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 01141800

BRACE-SPEED CONTROL
(Superseded to 01141851)

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 01137400

BRACKET-SPEED CONTROL
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

16

Ariens 01150000

LINK,HANDLE BAR ADJUST LH
(Superseded to 01150051)

Note: (Used Only On Model(s): 067,068,069,070,071,072,073).

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 01150000

LINK,HANDLE BAR ADJUST LH
(Superseded to 01150051)

Note: (Used Only On Model(s): 304,311,312,313,314,315,318,319).

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 01150000

LINK,HANDLE BAR ADJUST LH
(Superseded to 01150051)

Note: (Used Only On Model(s): 467,468,469,470,471,472,473).

$38.99

$

Usually ships in 4-12 days

0

16

Ariens 01150100

LINK,HANDLE BAR ADJ RH
(Superseded to 01150151)

Note: (Used Only On Model(s): 067,068,069,070).

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 01150100

LINK,HANDLE BAR ADJ RH
(Superseded to 01150151)

Note: (Used Only On Model(s): 071,072,073,304,311,312,313,314,315).

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 01150100

LINK,HANDLE BAR ADJ RH
(Superseded to 01150151)

Note: (Used Only On Model(s): 318,319,467,468,469,470,471,472,473).

$27.99

$

Usually ships in 4-12 days

0

16

Ariens 01158600

HANDLEBAR BRACKET
(Superseded to 01158651)

Note: (Used Only On Model(s): 065,316,317).

$20.99

$

Usually ships in 4-12 days

0

17

Ariens 01149900

WASHER,BELLEVILLE SPRING
(Superseded to 01178700)

Note: (Used Only On Model(s): 067,068,069,070,071,072,073).

$2.49

$

In Stock, Qty 6

0

17

Ariens 01149900

WASHER,BELLEVILLE SPRING
(Superseded to 01178700)

Note: (Used Only On Model(s): 304,311,312,313,314,315,318).

$2.49

$

In Stock, Qty 6

0

17

Ariens 01149900

WASHER,BELLEVILLE SPRING
(Superseded to 01178700)

Note: (Used Only On Model(s): 319,467,468,469,470,471,472,473).

$2.49

$

In Stock, Qty 6

0

18

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

19

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06211400

BLT-RDHDSQNK .25-20X1.38SHT PL
(Superseded to 06222300)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (Used Only On Model(s): 065,068,069,070,071,072).

$21.99

$

In Stock, only 2 left!

0

22

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (Used Only On Model(s): 073,311,312,313,314,315,316,317).

$21.99

$

In Stock, only 2 left!

0

22

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (Used Only On Model(s): 318,319,468,469,470,471,472,473).

$21.99

$

In Stock, only 2 left!

0

23

Ariens 01140800

ROD-SPEED CONTROL

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$42.99

$

Usually ships in 4-12 days

0

23

Ariens 01140800

ROD-SPEED CONTROL

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318,319).

$42.99

$

Usually ships in 4-12 days

0

23

Ariens 01140800

ROD-SPEED CONTROL

Note: (Used Only On Model(s): 468,469,470,471,472,473).

$42.99

$

Usually ships in 4-12 days

0

24

Ariens 06921200

TRACTION CABLE

Note: (Used Only On Model(s): 065,068,069,070,071,072,073,311,312).

$42.99

$

In Stock, only 1 left!

0

24

Ariens 06921200

TRACTION CABLE

Note: (Used Only On Model(s): 313,314,315,316,317,318).

$42.99

$

In Stock, only 1 left!

0

24

Ariens 06921200

TRACTION CABLE

Note: (Used Only On Model(s): 319,468,469,470,471,472,473).

$42.99

$

In Stock, only 1 left!

0

25

Ariens 06209600

BLT-RDHDSQNK .31-18X1.12 GR5PL
(Superseded to 06219200)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

27

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

31

Ariens 01154800

PRESSURE FLANGE

$7.99

$

Usually ships in 4-12 days

0

32

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 01126100

SHIFT LINK

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 01126100

SHIFT LINK

Note: (Used Only On Model(s): 311,312,313,314,315,316,317).

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 01126100

SHIFT LINK

Note: (Used Only On Model(s): 318,319,468,469,470,471,472,473).

$21.99

$

Usually ships in 4-12 days

0

35

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (Used Only On Model(s): 065,068,069,070,071,072,073,311).

$

$

Not available

35

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (Used Only On Model(s): 312,313,314,315,316,317,318).

$

$

Not available

35

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (Used Only On Model(s): 319,468,469,470,471,472,473).

$

$

Not available

36

Ariens 01123800

FRICTION WASHER

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$3.99

$

In Stock, Qty 20+

0

36

Ariens 01123800

FRICTION WASHER

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318).

$3.99

$

In Stock, Qty 20+

0

36

Ariens 01123800

FRICTION WASHER

Note: (Used Only On Model(s): 319,468,469,470,471,472,473).

$3.99

$

In Stock, Qty 20+

0

37

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 15

0

38

Ariens 01139800

SWIVEL

$16.99

$

Usually ships in 4-12 days

0

39

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

40

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$

$

Not available

41

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318).

$

$

Not available

41

Ariens 01173800

SUPPORT PAD
(Superseded to 04760400)

Note: (Used Only On Model(s): 319,468,469,470,471,472,473).

$

$

Not available

42

Ariens 06812300

RVT .187X.450 DOME AL BLACK
(Superseded to 06815700)

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$1.49

$

In Stock, only 2 left!

0

42

Ariens 06812300

RVT .187X.450 DOME AL BLACK
(Superseded to 06815700)

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318).

$1.49

$

In Stock, only 2 left!

0

42

Ariens 06812300

RVT .187X.450 DOME AL BLACK
(Superseded to 06815700)

Note: (Used Only On Model(s): 319,468,469,470,471,472,473).

$1.49

$

In Stock, only 2 left!

0

43

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$1.99

$

Usually ships in 4-12 days

0

43

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318).

$1.99

$

Usually ships in 4-12 days

0

43

Ariens 06406800

WSHR-FL-STL .194X.492X.047 PL
(Superseded to 06444400)

Note: (Used Only On Model(s): 319,468,469,470,471,472,473).

$1.99

$

Usually ships in 4-12 days

0

44

Ariens 00693100

SHARE, 125 CM

Note: Include 1each of items 10 & 11

$

$

Not available

44

Ariens 06931000

THROTTLE CABLE

$

$

Not available

45

Ariens 06926300

THROTTLE CABLE

Note: (Used Only On Model(s): 304,311,319).

$37.99

$

In Stock, only 1 left!

0

46

Ariens 05932700

BLT-HEX .25-20X2.25
(Superseded to 05956700)

Note: (Used Only On Model(s): 304,311,319).

$2.49

$

Usually ships in 4-12 days

0

47

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (NOT SHOWN)(Used Only On Model(s): 304,311,319).

$0.99

$

In Stock, Qty 20+

0

48

Ariens 01158800

DRIVE COVER

Note: (Used Only On Model(s): 304,311,319).

$

$

Not available

49

Ariens 07410800

SCR-TAP 10-32X.62 HWH PL T

Note: (Used Only On Model(s): 304,311,319).

$

$

Not available

50

Ariens 01163200

ENGINE BAIL EXTENSION

Note: (Used Only On Model(s): 318).

$

$

Not available

51

Ariens 06101500

SCR-MCH .25-20X.50 SLRH

Note: (Used Only On Model(s): 318).

$

$

Not available

52

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

Note: (Used Only On Model(s): 318).

$1.49

$

In Stock, only 1 left!

0

53

Ariens 06301700

WSHR-LK-EXT. 250 ID

Note: (Used Only On Model(s): 318).

$2.49

$

Usually ships in 4-12 days

0

54

Ariens 07407500

TAPTITE M5-0.8X16MM H-FL-PL
(Superseded to 07415100)

Note: (Used Only On Model(s): 317).

$3.49

$

Usually ships in 4-12 days

0
