911067 (MM 223) - Ariens 21" Push Walk-Behind Mower, 5hp Tecumseh (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Push Walk-Behind Mower, 5hp Tecumseh

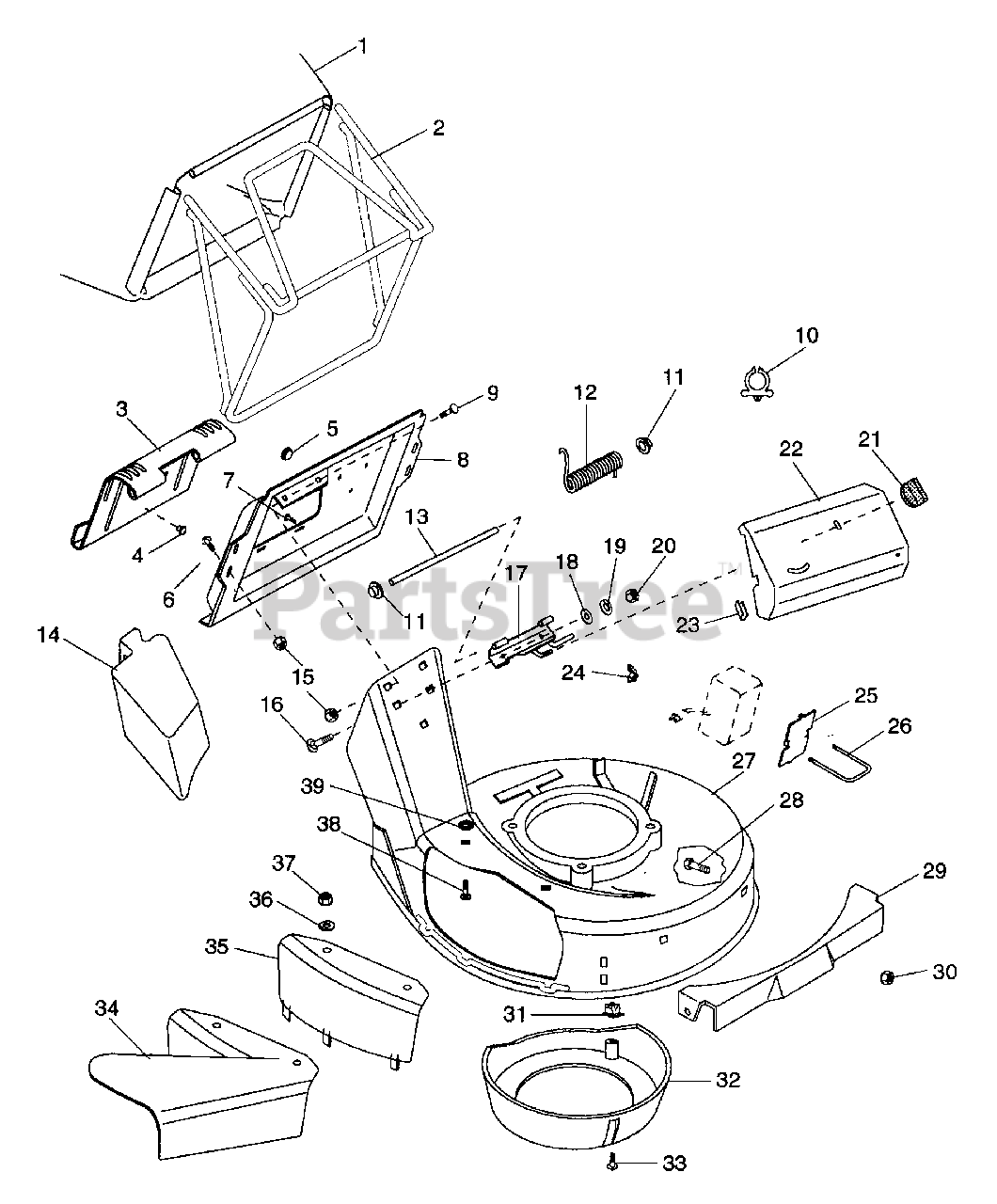

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 01152100

BAG,CONSUMER BLACK 15 OZ/YD2
(Superseded to 01180500)

Note: (Used Only On Model(s): 065,069,070,071,072,073,304).

$116.99

$

In Stock, only 1 left!

0

1

Ariens 01152100

BAG,CONSUMER BLACK 15 OZ/YD2
(Superseded to 01180500)

Note: (Used Only On Model(s): 311,313,314,315,316,317,318).

$116.99

$

In Stock, only 1 left!

0

1

Ariens 01152100

BAG,CONSUMER BLACK 15 OZ/YD2
(Superseded to 01180500)

Note: (Used Only On Model(s): 319,467,468,469,470,471,472,473).

$116.99

$

In Stock, only 1 left!

0

2

Ariens 01138700

BAGGER FRAME
(Superseded to 71103000)

Note: (Used Only On Model(s): 065,069,070,071,072,073).

$206.99

$

Usually ships in 4-12 days

0

2

Ariens 01138700

BAGGER FRAME
(Superseded to 71103000)

Note: (Used Only On Model(s): 304,311,313,314,315,316,317).

$206.99

$

Usually ships in 4-12 days

0

2

Ariens 01138700

BAGGER FRAME
(Superseded to 71103000)

Note: (Used Only On Model(s): 318,319,467,468,469,470,471,472,473).

$206.99

$

Usually ships in 4-12 days

0

3

Ariens 01136559

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

5

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Used Only On Model(s): 067,068,069,070,071,072,073).

$2.49

$

In Stock, Qty 11

0

6

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Used Only On Model(s): 304,311,312,313,314,315,316).

$2.49

$

In Stock, Qty 11

0

6

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Used Only On Model(s): 317,318,319,467,468,469,470).

$2.49

$

In Stock, Qty 11

0

6

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Used Only On Model(s): 471,472,473).

$2.49

$

In Stock, Qty 11

0

6

Ariens 05915500

BLT-HEX .25-20X.50 PL GR5
(Superseded to 05947900)

Note: (Used Only On Model(s): 065).

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07407900

SCR-TAP 10-24X.375 TORX PHD
(Superseded to 07414900)

$3.49

$

Usually ships in 4-12 days

0

8

Ariens 01159759

CATCHER PLATE

Note: (Used Only On Model(s): 067,068,069,070).

$82.99

$

Usually ships in 4-12 days

0

8

Ariens 01159759

CATCHER PLATE

Note: (Used Only On Model(s): 071,072,073,304,311,312,313).

$82.99

$

Usually ships in 4-12 days

0

8

Ariens 01159759

CATCHER PLATE

Note: (Used Only On Model(s): 314,315,316,317,318,319,467).

$82.99

$

Usually ships in 4-12 days

0

8

Ariens 01159759

CATCHER PLATE

Note: (Used Only On Model(s): 468,469,470,471,472,473).

$82.99

$

Usually ships in 4-12 days

0

8

Ariens 01177700

CATCHER PLATE

Note: (Used Only On Model(s): 065).

$

$

Not available

9

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 01166500

SNAP-IN CLIP

Note: (Used Only On Model(s): 065,068,069,070,071).

$

$

Not available

10

Ariens 01166500

SNAP-IN CLIP

Note: (Used Only On Model(s): 072,073,312,313,314,315,316).

$

$

Not available

10

Ariens 01166500

SNAP-IN CLIP

Note: (Used Only On Model(s): 317,318,319,467,468,469,470,471,472,473).

$

$

Not available

11

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

12

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

13

Ariens 01141000

DOOR PIN

$13.99

$

Usually ships in 4-12 days

0

14

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$51.99

$

In Stock, only 1 left!

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 067,068,069,070,071,072,073).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 304,311,312,313,314,315,316).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 317,318,319,467,468,469,470).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 471,472,473).

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

Note: (Used Only On Model(s): 065).

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

17

Ariens 01138259

HINGE BASE

Note: (Used Only On Model(s): 067,304,467).

$8.99

$

Usually ships in 4-12 days

0

17

Ariens 01155559

HINGE BASE WELDMENT

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$40.99

$

Usually ships in 4-12 days

0

17

Ariens 01155559

HINGE BASE WELDMENT

Note: (Used Only On Model(s): 311,312,313,314,315,316,317).

$40.99

$

Usually ships in 4-12 days

0

17

Ariens 01155559

HINGE BASE WELDMENT

Note: (Used Only On Model(s): 318,319,468,469,470,471,472,473).

$40.99

$

Usually ships in 4-12 days

0

18

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

19

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

20

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

21

Ariens 01159300

WING - NUT

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$

$

Not available

21

Ariens 01159300

WING - NUT

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318).

$

$

Not available

21

Ariens 01159300

WING - NUT

Note: (Used Only On Model(s): 319,469,470,471,472,473).

$

$

Not available

22

Ariens 01158800

DRIVE COVER

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$

$

Not available

22

Ariens 01158800

DRIVE COVER

Note: (Used Only On Model(s): 311,312,313,314,315,316,317,318).

$

$

Not available

22

Ariens 01158800

DRIVE COVER

Note: (Used Only On Model(s): 319,469,470,471,472,473).

$

$

Not available

22

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (Used Only On Model(s): 065,068,069,070,071,072,073).

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (Used Only On Model(s): 311,312,313,314,315,316,317).

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (Used Only On Model(s): 318,319,468,469,470,471,472,473).

$6.99

$

Usually ships in 4-12 days

0

24

Ariens 06515700

NUT-WING 8-32
(Superseded to 06538100)

Note: (Used Only On Model(s): 071,315,471).

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 01159100

HOLD DOWN PLATE

Note: (Used Only On Model(s): 071,315,471).

$

$

Not available

26

Ariens 01159200

U-BOLT

Note: (Used Only On Model(s): 071,315,471).

$

$

Not available

27

Ariens 51104300

MOWER PAN W/DECALS SP/COMM
(Superseded to 51107500)

Note: (Used Only On Model(s): 065,069,070,071,072,073,304).

$

$

Not available

27

Ariens 51104300

MOWER PAN W/DECALS SP/COMM
(Superseded to 51107500)

Note: (Used Only On Model(s): 311,313,314,315,316,317,318).

$

$

Not available

27

Ariens 51104300

MOWER PAN W/DECALS SP/COMM
(Superseded to 51107500)

Note: (Used Only On Model(s): 319,469,470,471,472,473).

$

$

Not available

27

Ariens 51105400

MOWER PAN W/DECALS PUSH
(Superseded to 51105100)

Note: (Used Only On Model(s): 068,312,468).

$

$

Not available

27

Ariens 51105300

MOWER PAN W/DECALS SP

Note: (Used Only On Model(s): 067,467).

$

$

Not available

28

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

29

Ariens 01153559

FRONT PANEL
(Superseded to 01183559)

Note: (Used Only On Model(s): 065,067,068,069).

$77.99

$

Usually ships in 4-12 days

0

29

Ariens 01153559

FRONT PANEL
(Superseded to 01183559)

Note: (Used Only On Model(s): 072,304,311,312,313,315,318).

$77.99

$

Usually ships in 4-12 days

0

29

Ariens 01153559

FRONT PANEL
(Superseded to 01183559)

Note: (Used Only On Model(s): 467,468,469,472).

$77.99

$

Usually ships in 4-12 days

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 065,067,068,069,072,304).

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 311,312,313,315,318,467).

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 468,469,472).

$1.49

$

In Stock, Qty 20+

0

31

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

31

Ariens 07507600

PLASTIC GROMMET

Note: (Used Only On Model(s): 067,068,312,467).

$0.99

$

In Stock, Qty 10

0

32

Ariens 01173700

CENTER BAFFLE

$45.99

$

Usually ships in 4-12 days

0

33

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

Note: (Used Only On Model(s): 065,069,070,071,072,073,304).

$

$

Not available

33

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

Note: (Used Only On Model(s): 311,313,314,315,316,317,318).

$

$

Not available

33

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

Note: (Used Only On Model(s): 319,467,468,469,470,471,472,473).

$

$

Not available

34

Ariens 01167600

SIDE DISCHARGE ASSEMBLY
(Superseded to 01180200)

Note: (Used Only On Model(s): 065,069,070,071,072,073).

$35.99

$

In Stock, only 1 left!

0

34

Ariens 01167600

SIDE DISCHARGE ASSEMBLY
(Superseded to 01180200)

Note: (Used Only On Model(s): 304,311,313,314,315,316,317).

$35.99

$

In Stock, only 1 left!

0

34

Ariens 01167600

SIDE DISCHARGE ASSEMBLY
(Superseded to 01180200)

Note: (Used Only On Model(s): 318,319,469,470,471,472,473).

$35.99

$

In Stock, only 1 left!

0

35

Ariens 01136400

SIDE DISCHARGE COVER
(Superseded to 01180351)

Note: (Used Only On Model(s): 065,069,070,071,072,073).

$38.99

$

In Stock, only 4 left!

0

35

Ariens 01136400

SIDE DISCHARGE COVER
(Superseded to 01180351)

Note: (Used Only On Model(s): 304,311,313,314,315,316,317).

$38.99

$

In Stock, only 4 left!

0

35

Ariens 01136400

SIDE DISCHARGE COVER
(Superseded to 01180351)

Note: (Used Only On Model(s): 318,319,469,470,471,472,473).

$38.99

$

In Stock, only 4 left!

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 065,069,070,071,072).

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 073,304,311,313,314,315,316).

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 317,318,319,469,470,471,472,473).

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

Note: (Used Only On Model(s): 065,069,070,071,072,073).

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

Note: (Used Only On Model(s): 304,311,313,314,315,316,317).

$0.99

$

In Stock, Qty 20+

0

37

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

Note: (Used Only On Model(s): 318,319,469,470,471,472,473).

$0.99

$

In Stock, Qty 20+

0

38

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

Note: (Used Only On Model(s): 065,069,070,071,072,073,304,311).

$2.49

$

In Stock, Qty 20+

0

38

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

Note: (Used Only On Model(s): 313,314,315,316,317,318,319,469).

$2.49

$

In Stock, Qty 20+

0

38

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

Note: (Used Only On Model(s): 470,471,472,473).

$2.49

$

In Stock, Qty 20+

0

39

Ariens 06514900

NUT-PUSH .312

Note: (Used Only On Model(s): 065,069,070,071,072,073,304).

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06514900

NUT-PUSH .312

Note: (Used Only On Model(s): 311,313,314,315,316,317,318).

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06514900

NUT-PUSH .312

Note: (Used Only On Model(s): 319,469,470,471,472,473).

$0.99

$

In Stock, Qty 20+

0

39

Ariens 07407500

TAPTITE M5-0.8X16MM H-FL-PL
(Superseded to 07415100)

Note: (Used Only On Model(s): 317).

$3.49

$

Usually ships in 4-12 days

0
