911064 (MM 210) - Ariens 21" Push Walk-Behind Mower, 4.5hp Tecumseh (SN: 000101 & Above) Wheels And Adjusters Parts Diagram

21" Push Walk-Behind Mower, 4.5hp Tecumseh

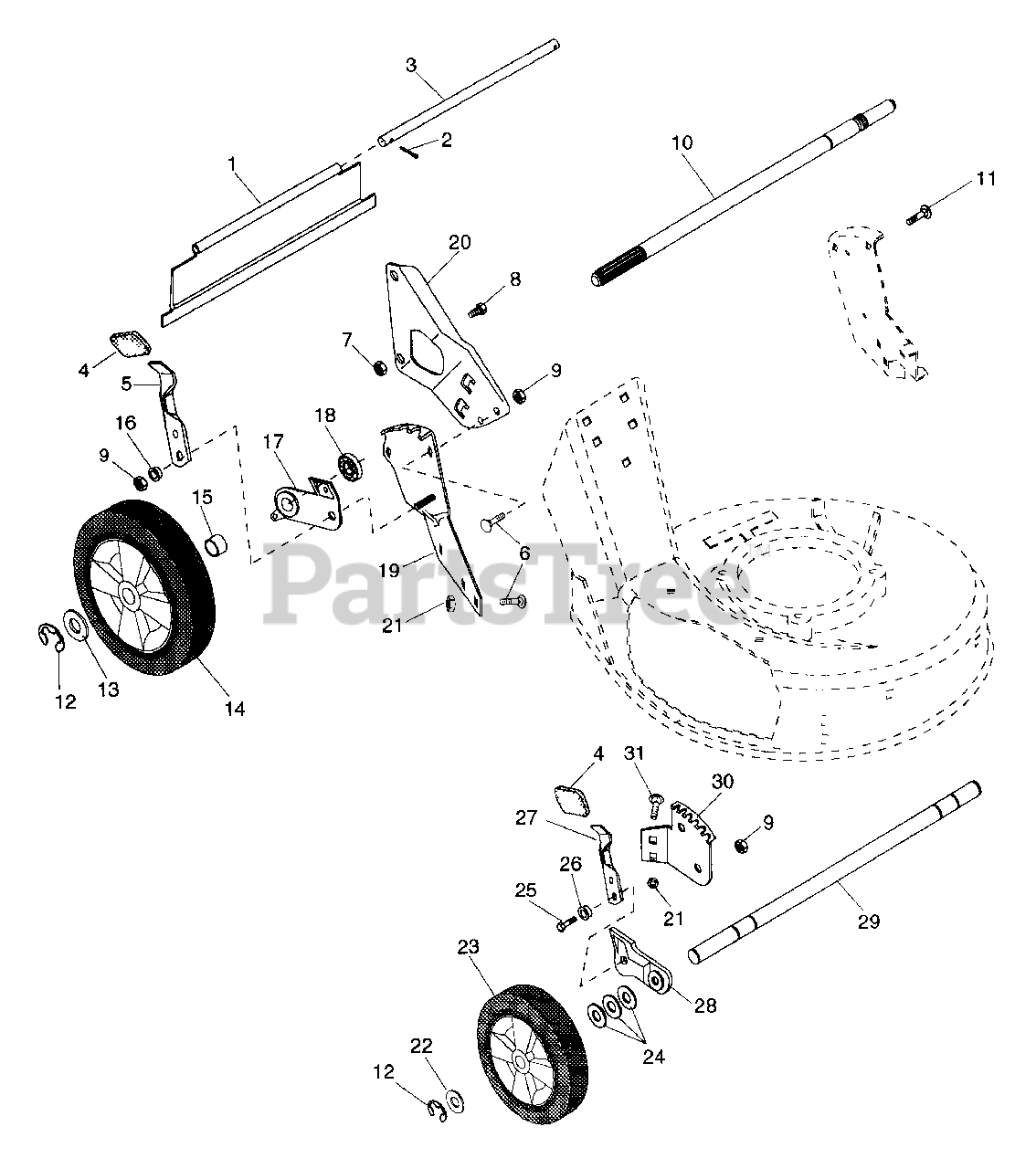

Wheels And Adjusters Parts Diagram

  • Title

1

Ariens 07516800

REAR PROTECTIVE GUARD, PUSH
(Superseded to 07522400)

Note: (Models 60,64,304)

$35.99

$

Usually ships in 4-12 days

0

1

Ariens 07516900

REAR PROTECTIVE GUARD, S.P.
(Superseded to 07522300)

Note: (Models 44,46,52,61,62,305,306,307,308,309,310,311)

$45.99

$

In Stock, only 1 left!

0

2

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

Note: (Models 60,64,304)

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

Note: (Models 44,46,52,61,62,305,306,307,308,309,310,311)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01140000

ROD
(Superseded to 01140067)

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

5

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

6

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 01167100

HANDLEBAR STUD

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (Models 44,46,52,61,62,305,306,307,308,309,310,311)

$140.99

$

Usually ships in 4-12 days

0

10

Ariens 01168800

REAR AXLE-PUSH MOWER

Note: (Models 60,304)

$

$

Not available

10

Ariens 01171900

REAR AXLE-PUSH MOWER MM

Note: (Model 64)

$50.99

$

Usually ships in 4-12 days

0

11

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

12

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 05405600

USE 06405600
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07105100

WHEEL

Note: (Models 60,304)

$

$

Not available

14

Ariens 07106100

LH WHEEL
(Superseded to 51115900)

Note: (Models 44,46,52,61,62,305,306,307,308,309,310,311)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07106300

RH WHEEL
(Superseded to 51115900)

Note: (Models 44,46,52,61,62,305,306,307,308,309,310,311)

$116.99

$

In Stock, only 1 left!

0

14

Ariens 07138100

TIRE 10X1.75

Note: (Model 64)

$

$

Not available

14

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

$116.99

$

In Stock, only 1 left!

0

15

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (Models 60,64,304,306)

$12.99

$

Usually ships in 4-12 days

0

15

Ariens 01149800

SPACER TUBE PUSH RH

Note: (Models 60,64,304,306)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (Models 44,46,52, 61,62,305,306,307,308,309,310,311)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 1 left!

0

17

Ariens 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (Models 60,304)

$60.99

$

Usually ships in 4-12 days

0

17

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (Models 44,46,52,62,305,306,307,309,310,311)

$112.99

$

Usually ships in 4-12 days

0

17

Ariens 01158100

R.H. REAR ADJUSTOR BRACKET

Note: (Models 61,308)

$62.99

$

Usually ships in 4-12 days

0

17

Ariens 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (Models 60,304)

$53.99

$

Usually ships in 4-12 days

0

17

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (Models 44,46,52,62,305,306,307,308,309,310,311)

$

$

Not available

17

Ariens 01158200

L.H. REAR ADJUSTOR BRACKET

Note: (Models 61,308)

$54.99

$

Usually ships in 4-12 days

0

18

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (Models 61,308)

$17.99

$

Usually ships in 4-12 days

0

19

Ariens 01154200

QUADRANT, REAR - L.H.
(Superseded to 01154251)

$62.99

$

In Stock, only 1 left!

0

19

Ariens 01154300

REAR QUADRANT, R.H.
(Superseded to 01154351)

$55.99

$

Usually ships in 4-12 days

0

20

Ariens 01137200

RH HANDLEBAR MTG. BRKT.
(Superseded to 01137251)

$50.99

$

In Stock, only 1 left!

0

20

Ariens 01137100

LH HANDLEBAR MTG. BRKT.
(Superseded to 01137151)

$55.99

$

Usually ships in 4-12 days

0

21

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 07120100

WHEEL
(Superseded to 51116000)

Note: (Models 44,46,52,60,61,62,304,305,306,307,308,309,310,311)

$67.99

$

In Stock, only 1 left!

0

23

Ariens 07138000

TIRE 7X1.50

Note: (Model 64)

$10.99

$

Usually ships in 4-12 days

0

24

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 1 left!

0

25

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

26

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 1 left!

0

27

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

Note: (Models 44,46,60,61,62,64,304,305,306,308,309,310,311)

$20.99

$

In Stock, only 1 left!

0

28

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

Note: (Models 44,46,60,61,62,64,304,305,306,308,309,310,311)

$83.99

$

Usually ships in 4-12 days

0

28

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

Note: (Models 44,46,60,61,62,64,304,305,306,311)

$64.99

$

In Stock, only 1 left!

0

29

Ariens 01168900

FRONT AXLE

Note: (Models 44,46,60,61,62,64,304,305,306,308,309,310,311)

$64.99

$

Usually ships in 4-12 days

0

30

Ariens 01154000

FRONT QUADRANT, L.H.
(Superseded to 01154051)

Note: (Models 44,46,60,61,62,64,304,305,306,308,309,310,311)

$51.99

$

In Stock, only 1 left!

0

30

Ariens 01154100

FRONT QUADRANT, R.H.
(Superseded to 01154151)

Note: (Models 44,46,60,61,62,64,304,305,306,308,309,310,311)

$

$

Not available

31

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0
