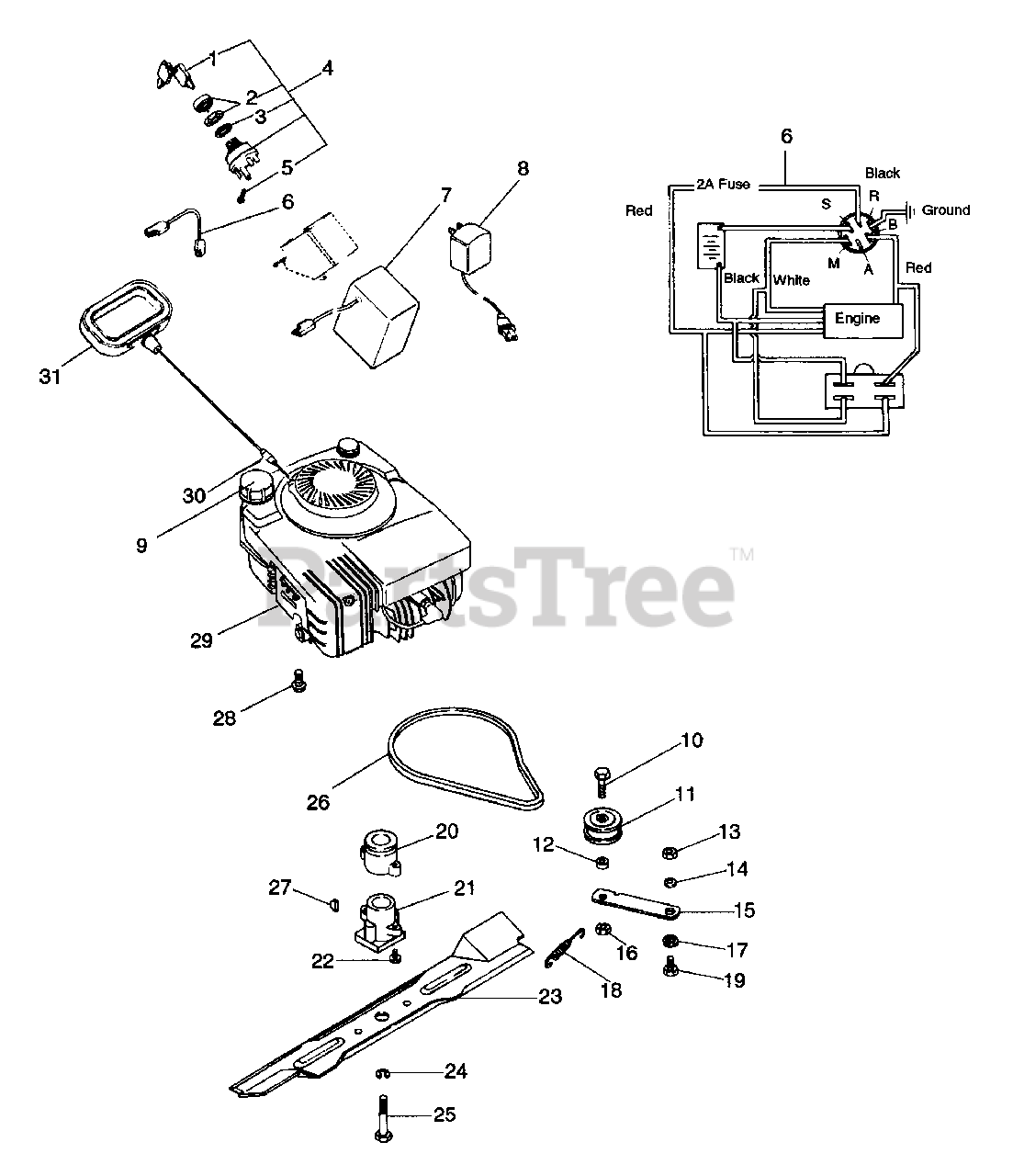

911053 (LM 21 C) - Ariens 21" Push Walk-Behind Mower, 5hp Briggs & Stratton (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Push Walk-Behind Mower, 5hp Briggs & Stratton

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 02460900

KEY SET
(Superseded to 02460700)

Note: (46)

$7.99

$

In Stock, Qty 20+

0

2

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

2

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

2

Ariens 06515400

NUT .812-20 PL

$

$

Not available

3

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06303700

WSHR-LK-INT .813X.020 PL

$

$

Not available

4

Ariens 01155800

KEY SWITCH

Note: (46)

$62.99

$

Usually ships in 4-12 days

0

5

Ariens 06107100

SCR-MCH 10-32X.32 SLRH PL

$

$

Not available

6

Ariens 01155900

WIRE HARNESS

Note: (46)

$

$

Not available

7

Ariens 01159000

BATTERY
(Superseded to 51106400)

Note: (46)

$142.99

$

Usually ships in 4-12 days

0

8

Ariens 01126000

BATTERY CHARGER

Note: (46)

$

$

Not available

9

Ariens 07517600

FUEL CAP

Note: (42,44,46,47,49,50,51,52)

$

$

Not available

10

Ariens 05923000

BLT-HEX .44-14X1.25 PL GR2
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 07313300

IDLER-FLAT 1.75 X .47

Note: (44,45,46,48,50,51,52)

$35.99

$

In Stock, Qty 7

0

12

Ariens 01142000

SPACER .52 X .45 X .34
(Superseded to 51108800)

Note: (44,45,46,48,50,52)

$

$

Not available

13

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

15

Ariens 01141200

IDLER ARM

Note: (44,45,46,48,50,52)

$22.99

$

In Stock, only 2 left!

0

16

Ariens 06513200

NUT-LK .437-14 GR A PL
(Superseded to 06536400)

$2.99

$

In Stock, Qty 12

0

17

Ariens 05515400

BSHG-FLG .325X.501X.250X1.120

Note: (44,45,46,48,50,52)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 08321100

SG-TENS .043X.44X3.31 WLD 5.8

Note: (44,45,46,48,50,52)

$6.49

$

In Stock, Qty 6

0

19

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01131600

TRACTION DRIVE SHEAVE

Note: (44,46,50,52)

$142.99

$

In Stock, only 1 left!

0

21

Ariens 01159900

BLADE ADAPTER

Note: (42,44,46,49,50,51,52)

$109.99

$

Usually ships in 4-12 days

0

21

Ariens 01121700

BLADE ADAPTER

Note: (45,48,53)

$77.99

$

Usually ships in 4-12 days

0

22

Ariens 07406600

SCR-TAP 10-24X1.0 HWH PL TR
(Superseded to 07415200)

$3.49

$

Usually ships in 4-12 days

0

23

Ariens 01137000

21" MOWER BLADE

Note: (42,44,45,46,48,49,50,51,52,53)

$25.99

$

In Stock, Qty 20+

0

24

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 05909400

BLT-HEX .38-24X2.00 PL GR5
(Superseded to 05958600)

$2.99

$

In Stock, only 2 left!

0

26

Ariens 07217100

V-BELT, 3L-COGGED

$34.99

$

In Stock, Qty 6

0

27

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 12

0

28

Ariens 07403000

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

29

Ariens 08231500

ENGINE B/S 5HP. REC QUAN. I/C

Note: (48,53)

$

$

Not available

29

Ariens 08231900

ENGINE TEC 5.5HP RECOIL VECTOR

Note: (42,44,51,52)

$

$

Not available

29

Ariens 08232000

ENGINE TEC 5.5HP ELEC. VECTOR

Note: (46)

$

$

Not available

29

Ariens 08232100

ENGINE TEC 5.5HP BBC VECTOR

Note: (47)

$

$

Not available

29

Ariens 08232200

ENGINE B/S 5HP QUANTUM XTE

Note: (45)

$

$

Not available

29

Ariens 08232500

ENGINE TEC 5HP RECOIL TVS115

Note: (49,50)

$

$

Not available

30

Ariens 07516200

ROPE BULLET

$5.49

$

In Stock, only 1 left!

0

31

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0
