911052 (LM 216 SP) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Tecumseh (SN: 005001 - 012000) Swivel Wheels And Brackets Parts Diagram

21" Self-Propelled Walk-Behind Mower, 5.5hp Tecumseh

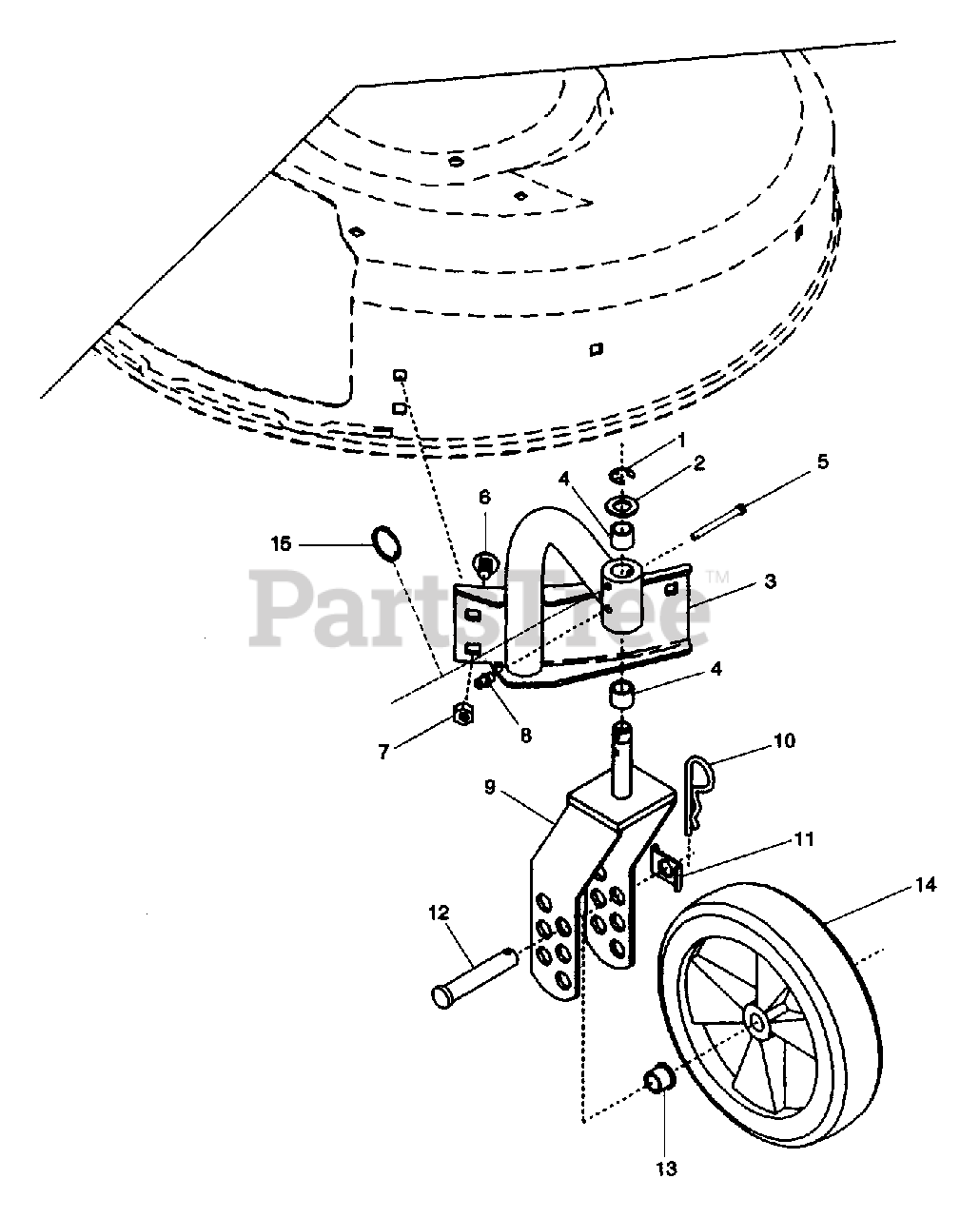

Swivel Wheels And Brackets Parts Diagram

  • Title
1

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 13

0

2

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 01168000

RIGHT MOUNT ARM WELDMENT
(Superseded to 51104800)

$

$

Not available

Ariens 01167900

LEFT MOUNT ARM WELDMENT
(Superseded to 51104900)

$23.99

$

Usually ships in 4-12 days

0

4

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 01169100

PIN-CLEV .184X1.50 YWZC
(Superseded to 51107700)

$13.99

$

Usually ships in 4-12 days

0

6

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

7

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

9

Ariens 01167800

WHEEL YOKE WELDMENT
(Superseded to 01167859)

$136.99

$

Usually ships in 4-12 days

0

10

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

11

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

12

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

13

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

14

Ariens 07120100

WHEEL
(Superseded to 51116000)

$67.99

$

In Stock, only 1 left!

0

15

Ariens 01169200

KICKOUT RING YWZC
(Superseded to 01239800)

$2.49

$

In Stock, only 2 left!

0
