911047 (LM 21 SB) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Tecumseh (SN: 000101 - 005000) Blade Brake Clutch Parts Diagram

21" Self-Propelled Walk-Behind Mower, 5.5hp Tecumseh

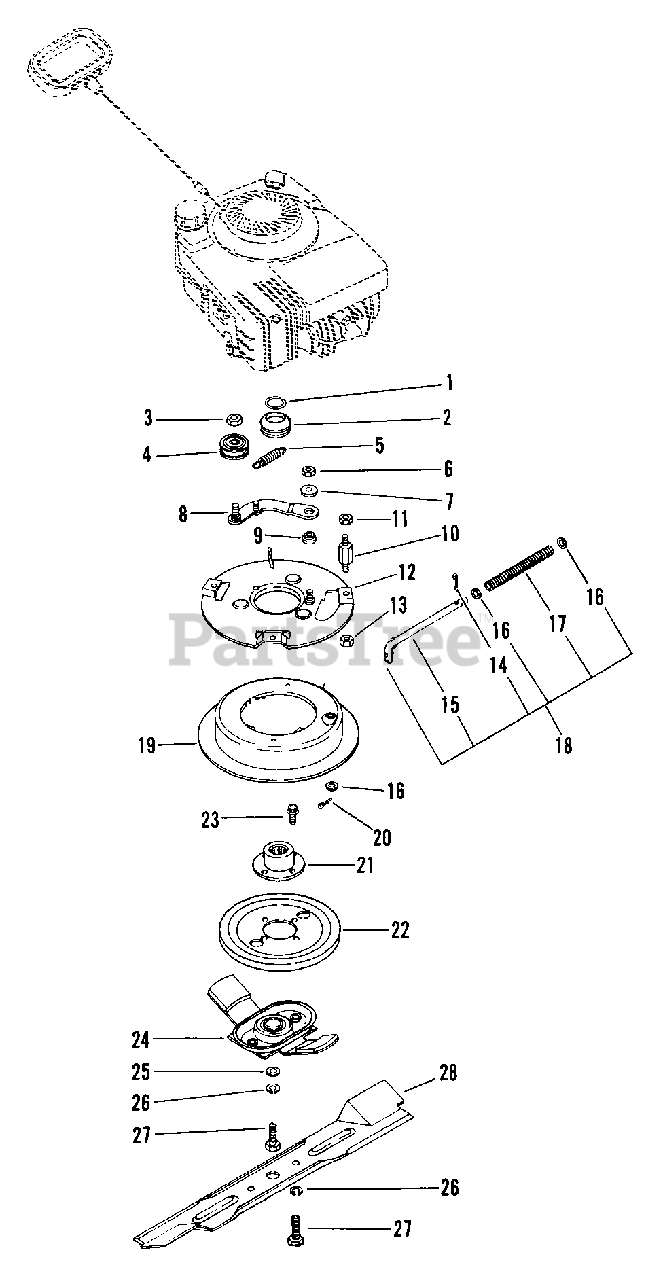

Blade Brake Clutch Parts Diagram

  • Title
1

Ariens 05710500

RG-RTNG-EXT.875X.075

$

$

Not available

2

Ariens 01159800

SHEAVE-BBC

$

$

Not available

3

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07313200

IDLER-FLAT 1.50 X .39 CLARK

$

$

Not available

5

Ariens 08325800

SG-TENS .48X.44X2.0 5.0 WLD

$

$

Not available

6

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

8

Ariens 01138300

IDLER ARM WELDMENT BBC

$

$

Not available

9

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

10

Ariens 01162700

HEX STUD BBC

$

$

Not available

11

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 01167500

BBC RAMP ASSY

$

$

Not available

13

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

15

Ariens 01152000

ROD,RETURN BBC
(Superseded to 03610100)

$

$

Not available

16

Ariens 06422800

WSHR-FL-STL .328X.555X.06 PL

$

$

Not available

17

Ariens 08324400

SG-COMP .080X.550X8.50 WLD38

$

$

Not available

18

Ariens 01156300

ROD RETURN ASSEM.

$

$

Not available

19

Ariens 01151900

ACTUATOR,BRAKE

$

$

Not available

20

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 01167300

FLYWHEEL HUB

$

$

Not available

22

Ariens 01167400

FLYWHEEL

$11.99

$

Usually ships in 4-12 days

0

23

Ariens 07405200

SCR-TAP .250-20X.50 HXSLHDPL
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 01140200

BBC LEAF SPRING AND BEARING AS

$

$

Not available

25

Ariens 06423300

WSHR-FL-STL .382X1.25X.130

$

$

Not available

26

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

27

Ariens 05922900

BLT-HEX .38-24X1.25 PL GR5
(Superseded to 05960700)

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 01138400

BLADE, 21" MOWER

$

$

Not available
