911042 (LM 213) - Ariens 21" Push Walk-Behind Mower, 5hp Tecumseh (SN: 008001 & Above) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, 5hp Tecumseh

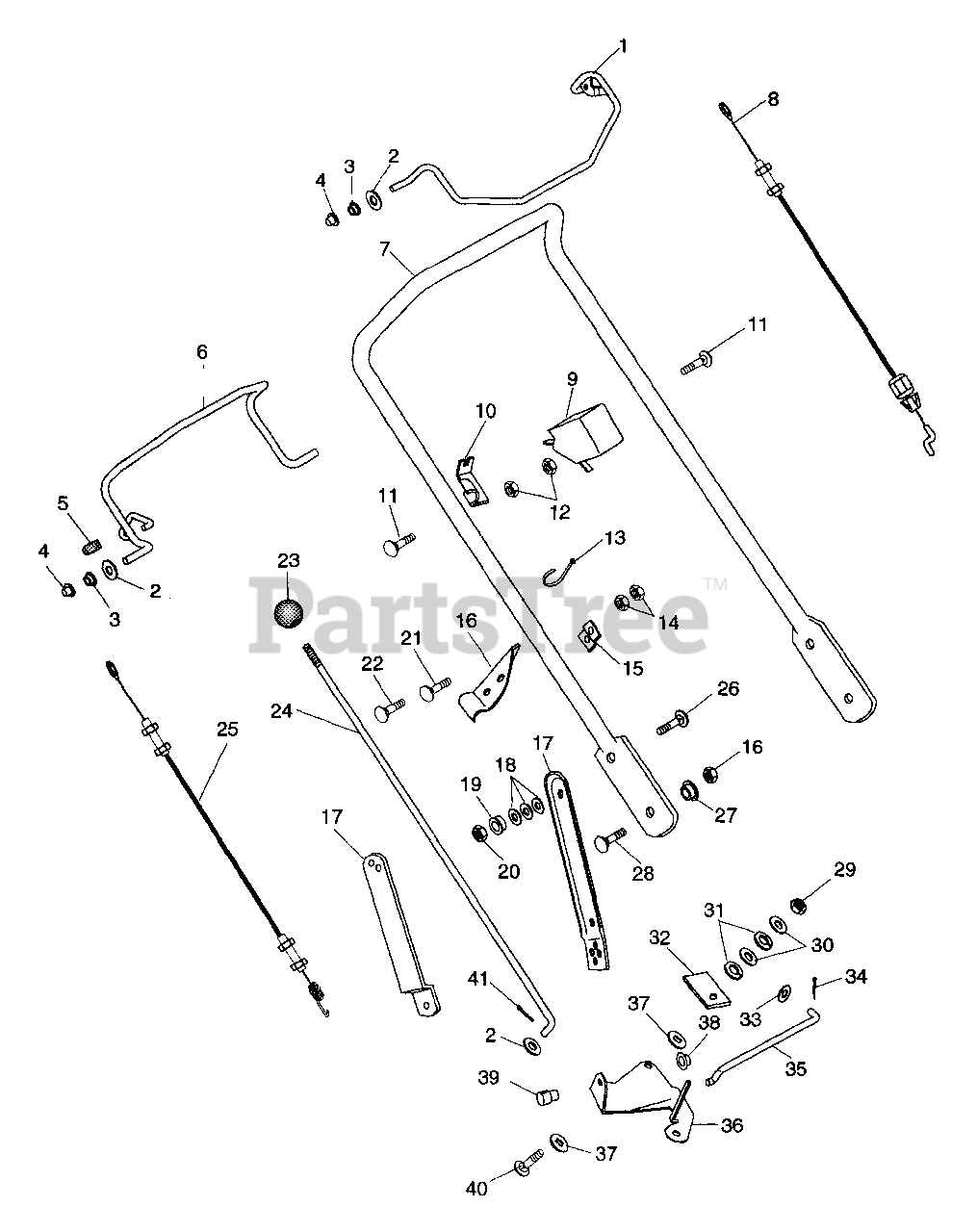

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01103500

ENGINE BAIL
(Superseded to 03806351)

$139.99

$

Usually ships in 4-12 days

0

2

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

5

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

6

Ariens 01106200

TRACTION BAIL-COATED

Note: (44,45,46,52,57,59)

$

$

Not available

7

Ariens 01138900

HANDLEBAR

Note: (47,51)

$

$

Not available

7

Ariens 01136900

HANDLEBAR

Note: (44,45,46,52,57,59)

$

$

Not available

8

Ariens 06922000

ENGINE CONTROL CABLE
(Superseded to 06947700)

Note: (45,57)

$22.99

$

In Stock, only 1 left!

0

8

Ariens 06921100

ENGINE CONTROL CABLE

Note: (42,44,46,51,52,59)

$34.99

$

In Stock, only 1 left!

0

9

Ariens 01156400

SWITCH-CABLE ANCHOR
(Superseded to 01156451)

Note: (46)

$

$

Not available

10

Ariens 01137500

CABLE ANCHOR

Note: (44,45,46,52,57,59)

$

$

Not available

10

Ariens 01155700

CABLE ANCHOR-LH
(Superseded to 01245651)

$

$

Not available

11

Ariens 06209400

BLT-RDHDSQNK .25-20X1.25 XLGPL
(Superseded to 06220100)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

13

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

14

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01141800

BRACE-SPEED CONTROL
(Superseded to 01141851)

$21.99

$

Usually ships in 4-12 days

0

16

Ariens 01137400

BRACKET-SPEED CONTROL
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

17

Ariens 01150000

LINK,HANDLE BAR ADJUST LH
(Superseded to 01150051)

Note: (42,44,45,46,51,52)

$38.99

$

Usually ships in 4-12 days

0

17

Ariens 01150100

LINK,HANDLE BAR ADJ RH
(Superseded to 01150151)

Note: (42,44,45,46,51,52)

$27.99

$

Usually ships in 4-12 days

0

Ariens 01158600

HANDLEBAR BRACKET
(Superseded to 01158651)

Note: (57,59)

$20.99

$

Usually ships in 4-12 days

0

18

Ariens 01149900

WASHER,BELLEVILLE SPRING
(Superseded to 01178700)

Note: (42,44,45,46,51,52)

$2.49

$

In Stock, Qty 6

0

19

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

20

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06211400

BLT-RDHDSQNK .25-20X1.38SHT PL
(Superseded to 06222300)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (44,45,46,52,57,59)

$21.99

$

In Stock, only 2 left!

0

24

Ariens 01140800

ROD-SPEED CONTROL

Note: (44,45,46,52,57,59)

$42.99

$

Usually ships in 4-12 days

0

25

Ariens 06921200

TRACTION CABLE

Note: (44,45,46,52,57,59)

$42.99

$

In Stock, only 1 left!

0

26

Ariens 06209600

BLT-RDHDSQNK .31-18X1.12 GR5PL
(Superseded to 06219200)

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

28

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

29

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

32

Ariens 01154800

PRESSURE FLANGE

$7.99

$

Usually ships in 4-12 days

0

33

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 01126100

SHIFT LINK

Note: (44,45,46,52,57,59)

$21.99

$

Usually ships in 4-12 days

0

36

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (44,45,46,52,57,59)

$

$

Not available

37

Ariens 01123800

FRICTION WASHER

Note: (44,45,46,52,57,59)

$3.99

$

In Stock, Qty 20+

0

38

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 17

0

39

Ariens 01139800

SWIVEL

$16.99

$

Usually ships in 4-12 days

0

40

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

41

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0
