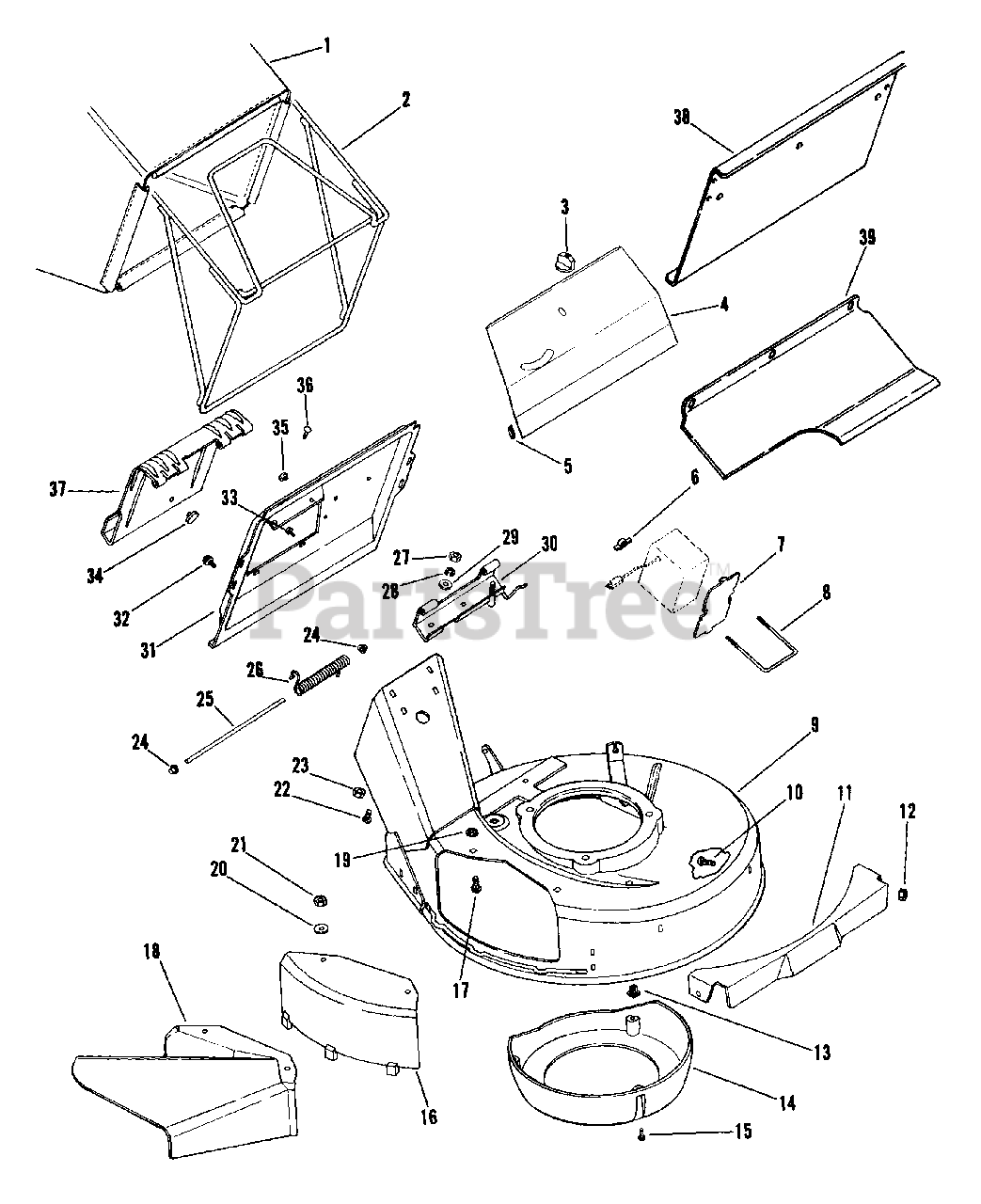

911036 (LM 21) - Ariens 21" Push Walk-Behind Mower, 5hp Tecumseh (SN: 001750 & Above) Mower Pan & Bag Parts Diagram

21" Push Walk-Behind Mower, 5hp Tecumseh

Mower Pan & Bag Parts Diagram

  • Title

1

Ariens 01152100

BAG,CONSUMER BLACK 15 OZ/YD2
(Superseded to 01180500)

Note: (14,16,19,20,34,37,40,41)

$116.99

$

In Stock, only 1 left!

0

1

Ariens 01151800

BAG,COMMERCIAL WHITE
(Superseded to 71103000)

Note: (30,35)

$206.99

$

Usually ships in 4-12 days

0

2

Ariens 01138700

BAGGER FRAME
(Superseded to 71103000)

Note: (14,16,19,20,30,34,35,37,40,41)

$206.99

$

Usually ships in 4-12 days

0

3

Ariens 01159300

WING - NUT

Note: (16,19,20,30,34,35,37,40)

$

$

Not available

4

Ariens 01158900

DRIVE COVER

Note: (16,19,20,30,34,35,37,40)

$

$

Not available

5

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (16,19,20,30,34,35,37,40)

$6.99

$

Usually ships in 4-12 days

0

6

Ariens 06515700

NUT-WING 8-32
(Superseded to 06538100)

Note: (19)

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 01159100

HOLD DOWN PLATE

Note: (19)

$

$

Not available

8

Ariens 01159200

U-BOLT

Note: (19)

$

$

Not available

9

Ariens 51102800

MOWER PAN W/DECALS

Note: (14,41)

$

$

Not available

9

Ariens 51102900

MOWER PAN W/DECALS

Note: (16,19,30,34,35,37,40)

$

$

Not available

9

Ariens 51102700

MOWER PAN W/DECALS

Note: (20)

$

$

Not available

9

Ariens 51103700

MOWER PAN W/DECALS MULCHER

Note: (36)

$

$

Not available

10

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

11

Ariens 01153500

FRONT PANEL
(Superseded to 01183559)

$77.99

$

Usually ships in 4-12 days

0

12

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

14

Ariens 01118900

CENTER BAFFLE
(Superseded to 01173700)

Note: (16,19,30,34,35,37,40)

$45.99

$

Usually ships in 4-12 days

0

14

Ariens 01140400

CENTER BAFFLE

Note: (20)

$

$

Not available

15

Ariens 07407400

SCR-TAP 10-16X.62 SLPH PL AB
(Superseded to 07415000)

$

$

Not available

16

Ariens 01136400

SIDE DISCHARGE COVER
(Superseded to 01180351)

$38.99

$

In Stock, only 4 left!

0

17

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

18

Ariens 01118600

DISCHARGE CHUTE
(Superseded to 01180200)

$35.99

$

In Stock, only 1 left!

0

19

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06201700

BLT-RDHDSQNK .25-20X.62 PL
(Superseded to 06213800)

$

$

Not available

23

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

25

Ariens 01141000

DOOR PIN

$13.99

$

Usually ships in 4-12 days

0

26

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

27

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

28

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

29

Ariens 06404400

WSHR-FL-STL .380X.875X.179 PL
(Superseded to 06439100)

$3.49

$

In Stock, only 2 left!

0

30

Ariens 01138200

HINGE BASE
(Superseded to 01138259)

Note: (14,41)

$8.99

$

Usually ships in 4-12 days

0

30

Ariens 01155500

HINGE BASE WELDMENT
(Superseded to 01155559)

Note: (16,19,20,30,34,35,37,40)

$40.99

$

Usually ships in 4-12 days

0

31

Ariens 01159700

CATCHER PLATE
(Superseded to 01159759)

$82.99

$

Usually ships in 4-12 days

0

32

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

33

Ariens 07407900

SCR-TAP 10-24X.375 TORX PHD
(Superseded to 07414900)

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

35

Ariens 07511800

BUMPER

$3.49

$

Usually ships in 4-12 days

0

36

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 01136500

CATCHER PLATE DOOR
(Superseded to 51108300)

$71.99

$

Usually ships in 4-12 days

0

38

Ariens 01161700

GUARD PLATE

Note: (36)

$

$

Not available

39

Ariens 01161800

DEFLECTOR BRACE

Note: (36)

$

$

Not available
