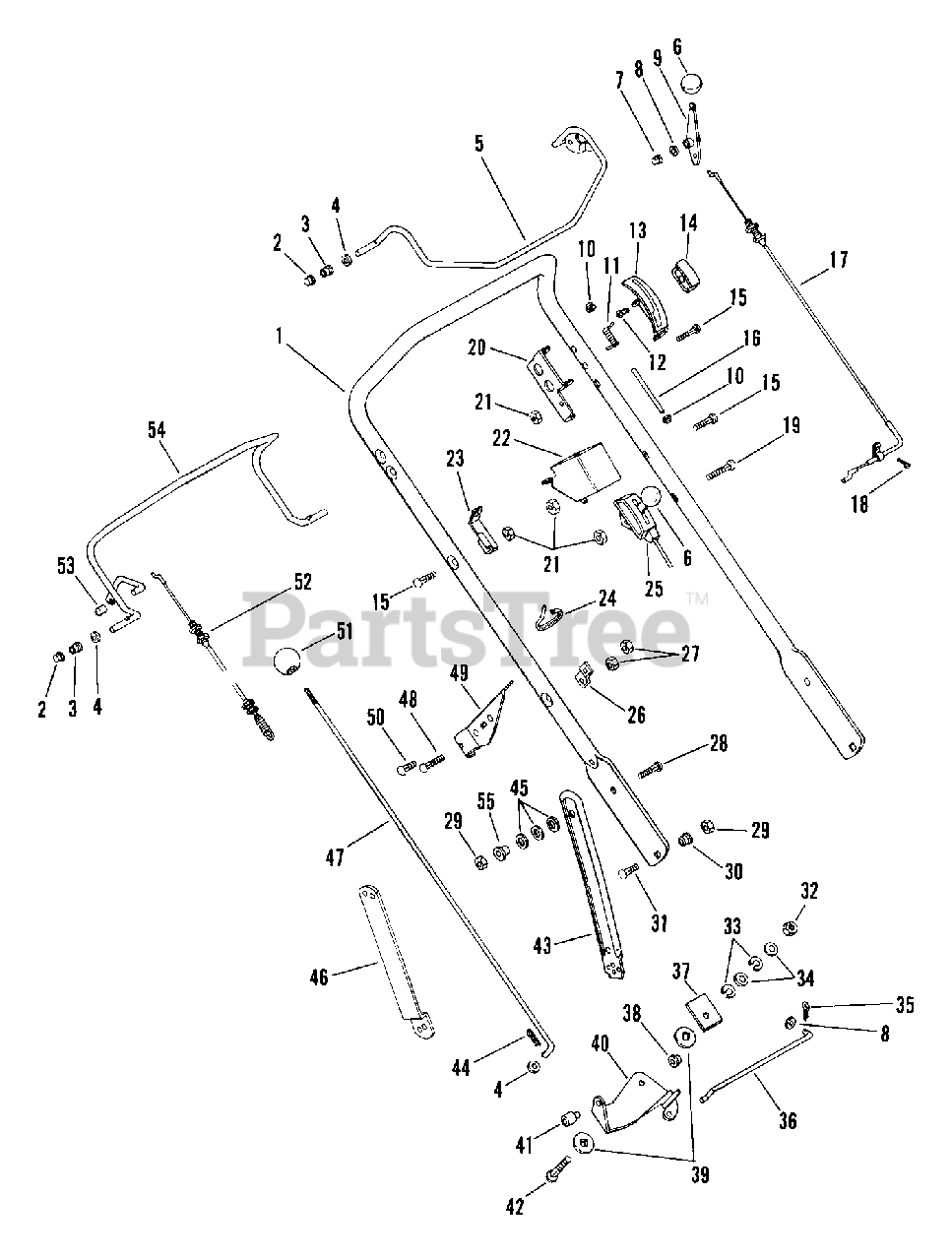

911014 (LM 21) - Ariens 21" Push Walk-Behind Mower, 5hp Tecumseh (SN: 019901 - 043249) Handlebar And Controls Parts Diagram

21" Push Walk-Behind Mower, 5hp Tecumseh

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 01138900

HANDLEBAR

Note: (14,33,36)

$

$

Not available

1

Ariens 01136900

HANDLEBAR

Note: (16,19,20,26,30,34,35,38)

$

$

Not available

2

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

3

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

4

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 01138000

START BAIL WELDMENT

Note: (14,16,19,29,30,34,35,36,38)

$

$

Not available

5

Ariens 01151300

BBC BAIL

Note: (20,29)

$

$

Not available

5

Ariens 01138100

START BAIL WELDMENT-ELEC.

Note: (19)

$

$

Not available

6

Ariens 07510100

KNOB, CONTROL-THROTTLE

$

$

Not available

7

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

8

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 01123100

START LEVER WELDMENT

Note: (19,26)

$

$

Not available

10

Ariens 01128200

PUSH NUT, .188

$

$

Not available

11

Ariens 08322500

SG-TORS .062X.28X1.00

Note: (20,29)

$

$

Not available

12

Ariens 07406700

SCR-TAP 10-24X.375 CRPH PL 1A

$

$

Not available

13

Ariens 01151400

BBC LATCH

Note: (20,29)

$

$

Not available

14

Ariens 07515700

KNOB

Note: (20,29)

$

$

Not available

15

Ariens 06209400

BLT-RDHDSQNK .25-20X1.25 XLGPL
(Superseded to 06220100)

$2.49

$

In Stock, only 4 left!

0

16

Ariens 01139500

PIN,BBC LATCH

Note: (20,29)

$

$

Not available

17

Ariens 06914900

CABLE,ENGINE

Note: (14,16,19,26,36,38)

$85.99

$

Usually ships in 4-12 days

0

17

Ariens 06916500

CABLE-BBC
(Superseded to 51105000)

Note: (20,29)

$

$

Not available

17

Ariens 06916900

CABLE-ENG. CONTROL

Note: (30)

$65.99

$

Usually ships in 4-12 days

0

17

Ariens 06917300

CABLE, ENGINE

Note: (33,34)

$

$

Not available

17

Ariens 06917400

CABLE, ENGINE

Note: (35)

$

$

Not available

18

Ariens 06103800

SCR-MCH 10-32X.25 CR SEMS PL

$

$

Not available

19

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 01136700

BBC LATCH PIVOT

Note: (20,29)

$

$

Not available

21

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, only 1 left!

0

22

Ariens 01156400

SWITCH-CABLE ANCHOR
(Superseded to 01156451)

Note: (29,38)

$

$

Not available

22

Ariens 01156500

SWITCH-CABLE ANCHOR WELDMENT

Note: (26)

$

$

Not available

23

Ariens 01137500

CABLE ANCHOR

Note: (16,19,20,26,29,30,34,35,38)

$

$

Not available

23

Ariens 01155700

CABLE ANCHOR-LH
(Superseded to 01245651)

$

$

Not available

24

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

25

Ariens 06915400

CABLE,THROTTLE W/CHOKE

Note: (30,35)

$

$

Not available

25

Ariens 06915500

CABLE,THROTTLE

Note: (20,29)

$

$

Not available

25

Ariens 06918400

THROTTLE CABLE W/CHOKE

Note: (38)

$

$

Not available

26

Ariens 01141800

BRACE-SPEED CONTROL
(Superseded to 01141851)

$21.99

$

Usually ships in 4-12 days

0

27

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06209600

BLT-RDHDSQNK .31-18X1.12 GR5PL
(Superseded to 06219200)

$3.99

$

Usually ships in 4-12 days

0

29

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

Note: (30,35)

$2.49

$

In Stock, only 1 left!

0

31

Ariens 06209500

BLT-RDHDSQNK.31-18X.88 GR5YWZC

$2.99

$

Usually ships in 4-12 days

0

32

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

34

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

36

Ariens 01126100

SHIFT LINK

Note: (16,19,20,26,29,30,34,35,38)

$21.99

$

Usually ships in 4-12 days

0

37

Ariens 01154800

PRESSURE FLANGE

Note: (16,19,20,26,29,30,34,35,38)

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 14

0

39

Ariens 01123800

FRICTION WASHER

Note: (16,19,20,26,29,30,34,35,38)

$3.99

$

In Stock, Qty 20+

0

40

Ariens 01123900

BELL CRANK - SPEED CONTROL
(Superseded to 04756800)

Note: (16,19,20,26,29,30,34,35,38)

$

$

Not available

41

Ariens 01139800

SWIVEL

Note: (14,16,19,20,26,29,30,34,35,38)

$16.99

$

Usually ships in 4-12 days

0

42

Ariens 06205600

BLT-RDHDSQNK .38-16X1.50 PL
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

42

Ariens 06207700

BLT-RDHDSQNK .38-16X1.25 SHTPL
(Superseded to 06222200)

$2.49

$

In Stock, Qty 20+

0

43

Ariens 01150000

LINK,HANDLE BAR ADJUST LH
(Superseded to 01150051)

Note: (14,16,19,20,26,29,33,34,36,38)

$38.99

$

Usually ships in 4-12 days

0

43

Ariens 01150100

LINK,HANDLE BAR ADJ RH
(Superseded to 01150151)

Note: (14,16,19,20,26,29,33,34,36,38)

$27.99

$

Usually ships in 4-12 days

0

44

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 01149900

WASHER,BELLEVILLE SPRING
(Superseded to 01178700)

$2.49

$

In Stock, Qty 6

0

46

Ariens 01158600

HANDLEBAR BRACKET
(Superseded to 01158651)

Note: (30,35)

$20.99

$

Usually ships in 4-12 days

0

47

Ariens 01140800

ROD-SPEED CONTROL

Note: (16,19,20,26,29,33,34,36,38)

$42.99

$

Usually ships in 4-12 days

0

48

Ariens 06202100

BLT-RDHDSQNK .25-20X1.50 SHTPL

$

$

Not available

49

Ariens 01137400

BRACKET-SPEED CONTROL
(Superseded to 51119700)

$23.99

$

Usually ships in 4-12 days

0

50

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

51

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

Note: (16,19,20,26,29,30,34,35,38)

$21.99

$

In Stock, only 2 left!

0

52

Ariens 06916400

CABLE, TRACTION
(Superseded to 51105200)

Note: (16,19,20,26,29,30,34,35,38)

$134.99

$

Usually ships in 4-12 days

0

53

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

54

Ariens 01138600

TRACTION BAIL-COATED
(Superseded to 51105200)

Note: (16,19,20,26,29,30,34,35,38)

$134.99

$

Usually ships in 4-12 days

0

55

Ariens 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, Qty 12

0

56

Ariens 01163300

SPACER

Note: (38)

$

$

Not available
