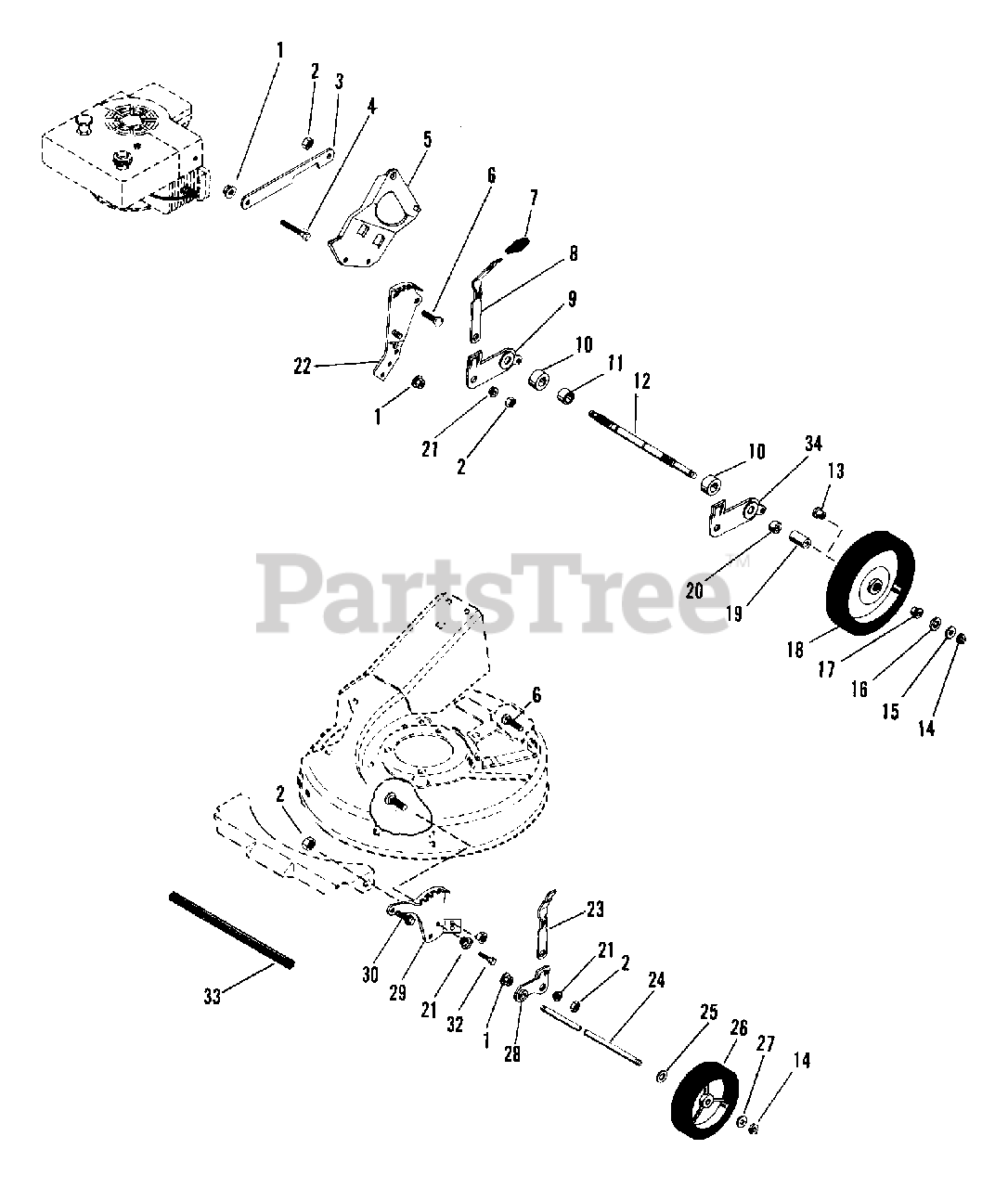

911014 (LM 21) - Ariens 21" Push Walk-Behind Mower, 5hp Tecumseh (SN: 000101 - 019900) Wheels And Wheel Adjusters Parts Diagram

21" Push Walk-Behind Mower, 5hp Tecumseh

Wheels And Wheel Adjusters Parts Diagram

  • Title

1

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

2

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01141500

ANTIVIBRATION STRAP
(Superseded to 01154600)

Note: (911017,021,022,024)

$

$

Not available

3

Ariens 01154600

ENGINE BRACE

Note: (Used Only On Model(s): 911030).

$

$

Not available

4

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

Note: (911014,015,030,032)

$2.49

$

In Stock, Qty 20+

0

5

Ariens 01137200

RH HANDLEBAR MTG. BRKT.
(Superseded to 01137251)

$50.99

$

In Stock, only 1 left!

0

5

Ariens 01137100

LH HANDLEBAR MTG. BRKT.
(Superseded to 01137151)

$55.99

$

Usually ships in 4-12 days

0

6

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07513600

KNOB

$7.99

$

In Stock, only 2 left!

0

8

Ariens 01130600

HEIGHT ADJUSTMENT LEVER
(Superseded to 01242000)

$25.99

$

In Stock, only 1 left!

0

9

Ariens 01131400

REAR BRACKET & BEARING ASSEMBL

Note: (911016,017,018,019,020)

$

$

Not available

9

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (911016,017,018,019)

$112.99

$

Usually ships in 4-12 days

0

9

Ariens 01150400

REAR BRACKET & BEARING ASSY RH

Note: (911020,023,024,026,027,029,031)

$112.99

$

Usually ships in 4-12 days

0

9

Ariens 01130800

REAR ADJUSTMENT BRACKET R.H.

Note: (911022,023,024,026,028,030,032)

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 01131300

REAR BRACKET & BEARING ASSEMBL

Note: (911014,015,021)

$60.99

$

Usually ships in 4-12 days

0

10

Ariens 05416200

BRG-BALL .752X1.50X.45
(Superseded to 05408900)

Note: (911016,017,018,019,020,022)

$18.99

$

In Stock, only 3 left!

0

10

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (911016,017,018,019)

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 05417600

BRG-BALL .625X1.383X.50
(Superseded to 05417500)

Note: (911020,022,023,024,026,028)

$17.99

$

Usually ships in 4-12 days

0

11

Ariens 01132600

SPACER .78 X .74 X .39

Note: (911022)

$

$

Not available

12

Ariens 01133600

REAR AXLE

Note: (911016,017,018,019,020,022)

$14.99

$

Usually ships in 4-12 days

0

12

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (911016,017,018,019)

$140.99

$

Usually ships in 4-12 days

0

12

Ariens 01149500

REAR AXLE,5/8 DIA

Note: (911020,022,023,024,026,027,028,029,030,031,032)

$140.99

$

Usually ships in 4-12 days

0

12

Ariens 01132500

REAR AXLE - PUSH MOWER

Note: (911014,015,021)

$

$

Not available

13

Ariens 05513500

BSHG-FLG .625X.750X.750X1.125

$

$

Not available

14

Ariens 05705900

RG-RTNG-EXT .438X.035

Note: (911023,026)

$0.99

$

In Stock, Qty 14

0

14

Ariens 05709300

RG-RTNG-EXT .500X.042

$

$

Not available

14

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911014,015,016,017,018,019)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (911014,015,016,017,018,019)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$2.49

$

In Stock, only 2 left!

0

16

Ariens 05603400

SEAL .625X.875X.125

Note: (911016,017,018,019,020,022,023,024,026,028)

$9.99

$

Usually ships in 4-12 days

0

17

Ariens 05513600

BSHG-SLV .625X.750X.500

$

$

Not available

18

Ariens 07119800

WHL COMP

Note: (911014,015,021)

$

$

Not available

18

Ariens 07115000

WHL L.H.

Note: (911016,017,018,019,020,022)

$

$

Not available

18

Ariens 07114300

WHL

Note: (911016,017,018,019,020,022)

$

$

Not available

18

Ariens 51101600

REAR TIRE SERVICE ASSEMBLY

$

$

Not available

18

Ariens 07105100

WHEEL

Note: (911014,015)

$

$

Not available

18

Ariens 07105100

WHEEL

Note: (911021)

$

$

Not available

18

Ariens 07106100

LH WHEEL
(Superseded to 51115900)

Note: (911016,017,018,019)

$116.99

$

In Stock, only 1 left!

0

18

Ariens 07106100

LH WHEEL
(Superseded to 51115900)

Note: (911020,022,023,024,026,027,028,030,031,032)

$116.99

$

In Stock, only 1 left!

0

18

Ariens 07106300

RH WHEEL
(Superseded to 51115900)

Note: (911016,017,018,019)

$116.99

$

In Stock, only 1 left!

0

18

Ariens 07106300

RH WHEEL
(Superseded to 51115900)

Note: (911020,022)

$116.99

$

In Stock, only 1 left!

0

18

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

Note: (911014,015,016,017,018,019)

$116.99

$

In Stock, only 1 left!

0

18

Ariens 07103900

10 1/2 TIRE SKIN
(Superseded to 51115900)

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$116.99

$

In Stock, only 1 left!

0

19

Ariens 01132400

TUBE
(Superseded to 01149700)

Note: (911014,015,021)

$12.99

$

Usually ships in 4-12 days

0

19

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (911014,015)

$12.99

$

Usually ships in 4-12 days

0

19

Ariens 01149700

SPACER TUBE,PUSH LH

Note: (911021)

$12.99

$

Usually ships in 4-12 days

0

20

Ariens 01124300

SPACER .75 X .25 X .88

Note: (911016,017,018,019,020,022)

$

$

Not available

20

Ariens 01132300

SPACER
(Superseded to 01149800)

Note: (911014,015,021)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 01149800

SPACER TUBE PUSH RH

Note: (911014,015)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 01149800

SPACER TUBE PUSH RH

Note: (911021)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (911014,015,016,017,018,019)

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 01149600

SPACER TUBE, SELF PROPEL

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

22

Ariens 01132800

REAR QUADRANT WELDMENT L.H.

Note: (911014,015,016,017,018,019)

$

$

Not available

22

Ariens 01132800

REAR QUADRANT WELDMENT L.H.

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$

$

Not available

22

Ariens 01132900

REAR QUADRANT WELDMENT R.H.

Note: (911014,015,016,017,018,019)

$

$

Not available

22

Ariens 01132900

REAR QUADRANT WELDMENT R.H.

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$

$

Not available

22

Ariens 01154200

QUADRANT, REAR - L.H.
(Superseded to 01154251)

Note: (911014,015,016,017,018,019,020)

$62.99

$

In Stock, only 1 left!

0

22

Ariens 01154200

QUADRANT, REAR - L.H.
(Superseded to 01154251)

Note: 911021,022,023,024,026,027,028,029,030,031,032)

$62.99

$

In Stock, only 1 left!

0

22

Ariens 01154300

REAR QUADRANT, R.H.
(Superseded to 01154351)

Note: (911014,015,016,017,018,019,020)

$55.99

$

Usually ships in 4-12 days

0

22

Ariens 01154300

REAR QUADRANT, R.H.
(Superseded to 01154351)

Note: (911021,022,023,024,026,027,028,029,030,031,032)

$55.99

$

Usually ships in 4-12 days

0

23

Ariens 01120000

FRONT HEIGHT ADJUSTMENT LEVER

$20.99

$

In Stock, only 1 left!

0

24

Ariens 01130900

FRONT AXLE
(Superseded to 51106300)

$

$

Not available

25

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

26

Ariens 07114400

T/WHL ASSY 7X1.75 .5B

$

$

Not available

26

Ariens 07120100

WHEEL
(Superseded to 51116000)

Note: (911023,026,027,031,032)

$67.99

$

In Stock, only 1 left!

0

27

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 01119800

LEFT ADJUSTOR BRACKET ASSEMBLY

$83.99

$

Usually ships in 4-12 days

0

28

Ariens 01119900

RIGHT ADJUSTOR BRACKET ASSEMBL

$64.99

$

In Stock, only 1 left!

0

29

Ariens 01119500

LEFT FRONT QUADRANT

Note: (911014,015,016,017,018,019,020)

$38.99

$

Usually ships in 4-12 days

0

29

Ariens 01119500

LEFT FRONT QUADRANT

Note: (911021,022,023,024,026,027,028,029,030,031,032)

$38.99

$

Usually ships in 4-12 days

0

29

Ariens 01119600

RIGHT FRONT QUADRANT

Note: (911014,015,016,017,018,019,020)

$25.99

$

Usually ships in 4-12 days

0

29

Ariens 01119600

RIGHT FRONT QUADRANT

Note: (911021,022,023,024,026,027,028,029,030,031,032)

$25.99

$

Usually ships in 4-12 days

0

29

Ariens 01154000

FRONT QUADRANT, L.H.
(Superseded to 01154051)

Note: (911014,015,016,017,018,019,020)

$51.99

$

In Stock, only 1 left!

0

29

Ariens 01154000

FRONT QUADRANT, L.H.
(Superseded to 01154051)

Note: (911021,022,023,024,026,027,028,029,030,031,032)

$51.99

$

In Stock, only 1 left!

0

29

Ariens 01154100

FRONT QUADRANT, R.H.
(Superseded to 01154151)

Note: (911014,015,016,017,018,019,020)

$

$

Not available

29

Ariens 01154100

FRONT QUADRANT, R.H.
(Superseded to 01154151)

Note: (911021,022,023,024,026,027,028,029,030,031,032)

$

$

Not available

30

Ariens 07402200

SCR-TAP .375-16X.75 HWH PL TR
(Superseded to 07415400)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, Qty 20+

0

31

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

Note: (911023,026,027,031)

$1.49

$

In Stock, Qty 19

0

32

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

32

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 01119400

BUMPER

Note: (911014,015,016,017,018,019)

$

$

Not available

33

Ariens 01119400

BUMPER

Note: (911020,021,022,023,024,026,027,028,029,030,031,032)

$

$

Not available

34

Ariens 01131200

REAR BRACKET & BEARING ASSEMBL

Note: (911014,015,021)

$53.99

$

Usually ships in 4-12 days

0

34

Ariens 01130700

REAR ADJUSTMENT BRACKET L.H.

Note: (911016,017,018,019,020,023,024,026,027,029,030,031)

$

$

Not available
