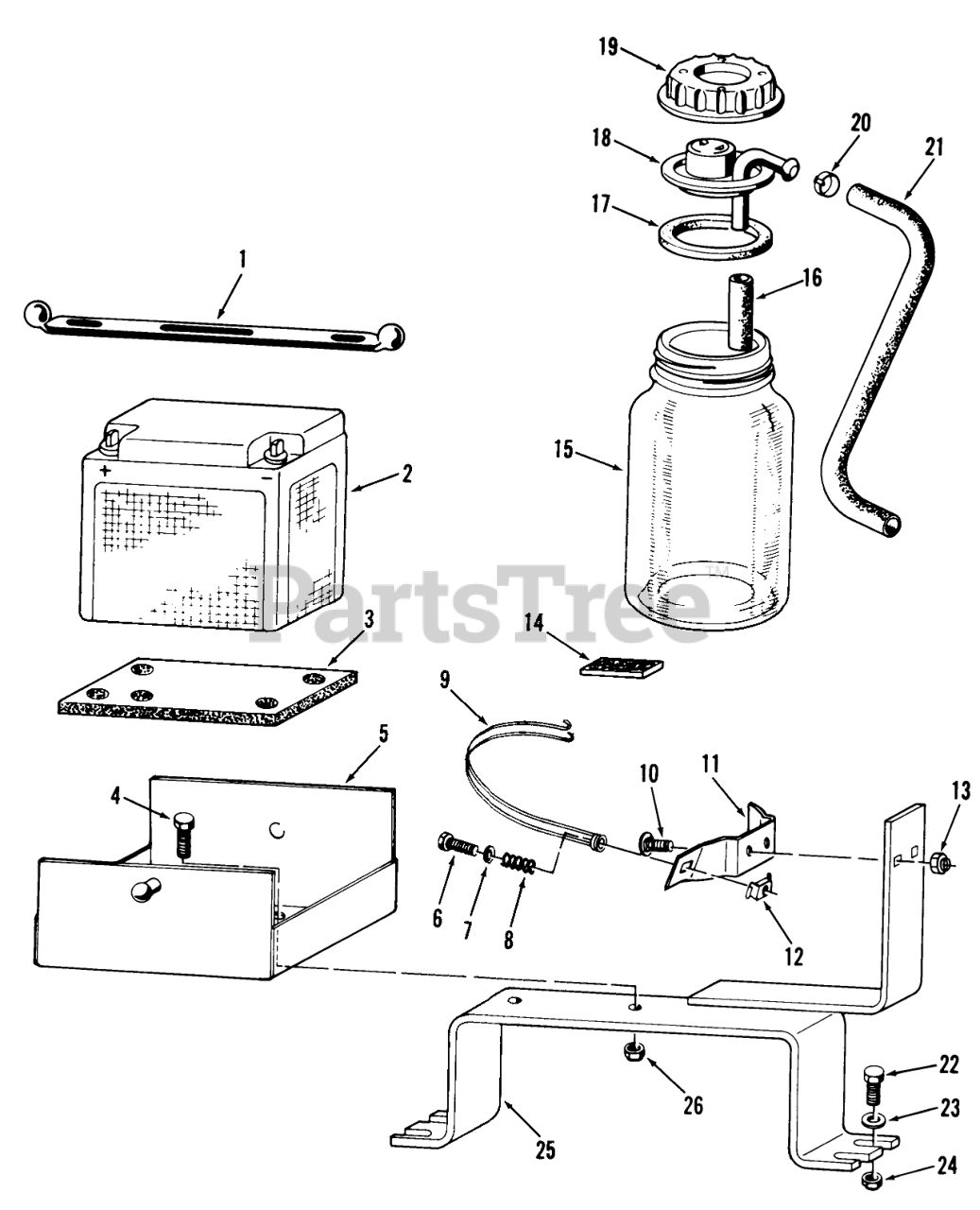

91-20RG01 (D-250) - Toro Lawn Tractor (1980) Battery And Coolant Compensating Bottle Parts Diagram

Lawn Tractor

Battery And Coolant Compensating Bottle Parts Diagram

  • Title
1

Toro 250059

DISCONTINUED

$

$

Not available

2

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

Toro 104964

Decal, Battery

$

$

Currently unavailable

3

Toro 250104

DISCONTINUED

$

$

Not available

4

Toro 250158

DISCONTINUED

$

$

Not available

5

Toro 252021

DISCONTINUED

$

$

Not available

6

Toro 250738

DISCONTINUED

$

$

Not available

7

Toro 250739

DISCONTINUED

$

$

Not available

8

Toro 250740

DISCONTINUED

$

$

Not available

9

Toro 250737

DISCONTINUED

$

$

Not available

10

Toro 251983

DISCONTINUED

$

$

Not available

11

Toro 250216

DISCONTINUED

$

$

Not available

12

Toro 250741

DISCONTINUED

$

$

Not available

13

Toro 250384

DISCONTINUED

$

$

Not available

14

Toro 250217

DISCONTINUED

$

$

Not available

15

Toro 252112

Compensating Bottle-Coolant

$

$

Not available

16

Toro 250736

DISCONTINUED

$

$

Not available

17

Toro 251360

Gasket

$

$

Not available

18

Toro 250734

DISCONTINUED

$

$

Not available

19

Toro 251359

DISCONTINUED

$

$

Not available

20

Toro 250835

DISCONTINUED

$

$

Not available

21

$

$

Currently unavailable

22

Toro 250159

DISCONTINUED

$

$

Not available

23

Toro 250433

DISCONTINUED

$

$

Not available

24

Toro 250385

DISCONTINUED

$

$

Not available

25

Toro 250341

DISCONTINUED

$

$

Not available

26

Toro 250385

DISCONTINUED

$

$

Not available
