91-20KS01 (D-200) - Toro Lawn Tractor (1979) SEAT AND SEAT SUSPENSION Parts Diagram

Lawn Tractor

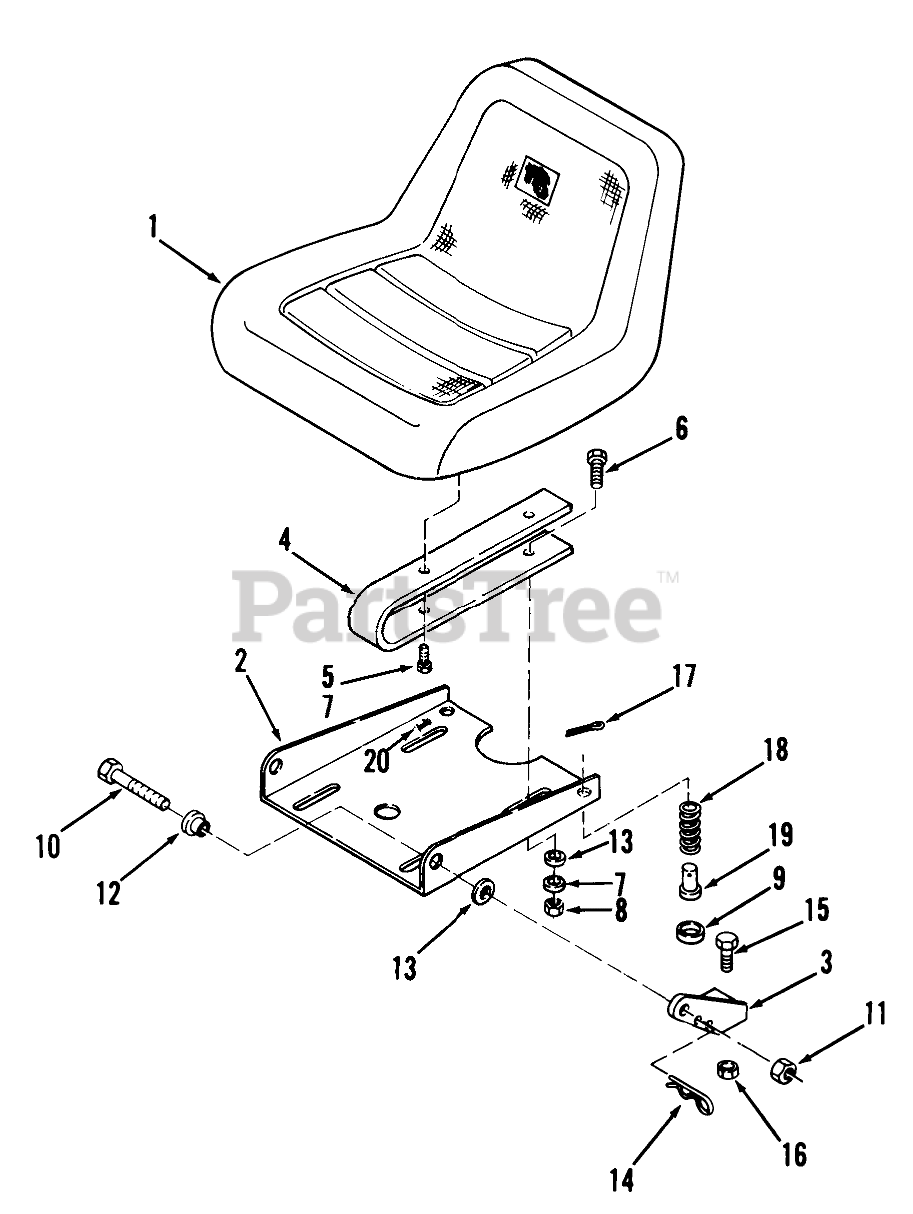

SEAT AND SEAT SUSPENSION Parts Diagram

  • Title

1

Toro 106145

Seat
(Superseded to 100-6097)

$

$

Not available

2

Toro 106239

Plate-Seat Pivot
(Superseded to 111714)

$

$

Not available

3

Toro 103781

Bracket-Pivot LH

$

$

Not available

3

Toro 103780

Bracket-Pivot RH

$

$

Not available

4

Toro 105284

Seat Spring

$

$

Not available

5

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

6

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

7

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 106331

CUP

$

$

Not available

10

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

12

Toro 105503

BUSHING

$0.99

$

In Stock, Qty 7

0

13

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

15

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

16

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

17

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

18

Toro 104841

SPRING

$2.49

$

In Stock, only 3 left!

0

19

Toro 106449

PIN

$6.99

$

Usually ships in 3-6 days

0

20

Toro 518211

BUMPER

$3.49

$

In Stock, Qty 6

0
