91-20KS01 (D-200) - Toro Lawn Tractor (1979) ELECTRIC PTO CLUTCH (D-160) Parts Diagram

Lawn Tractor

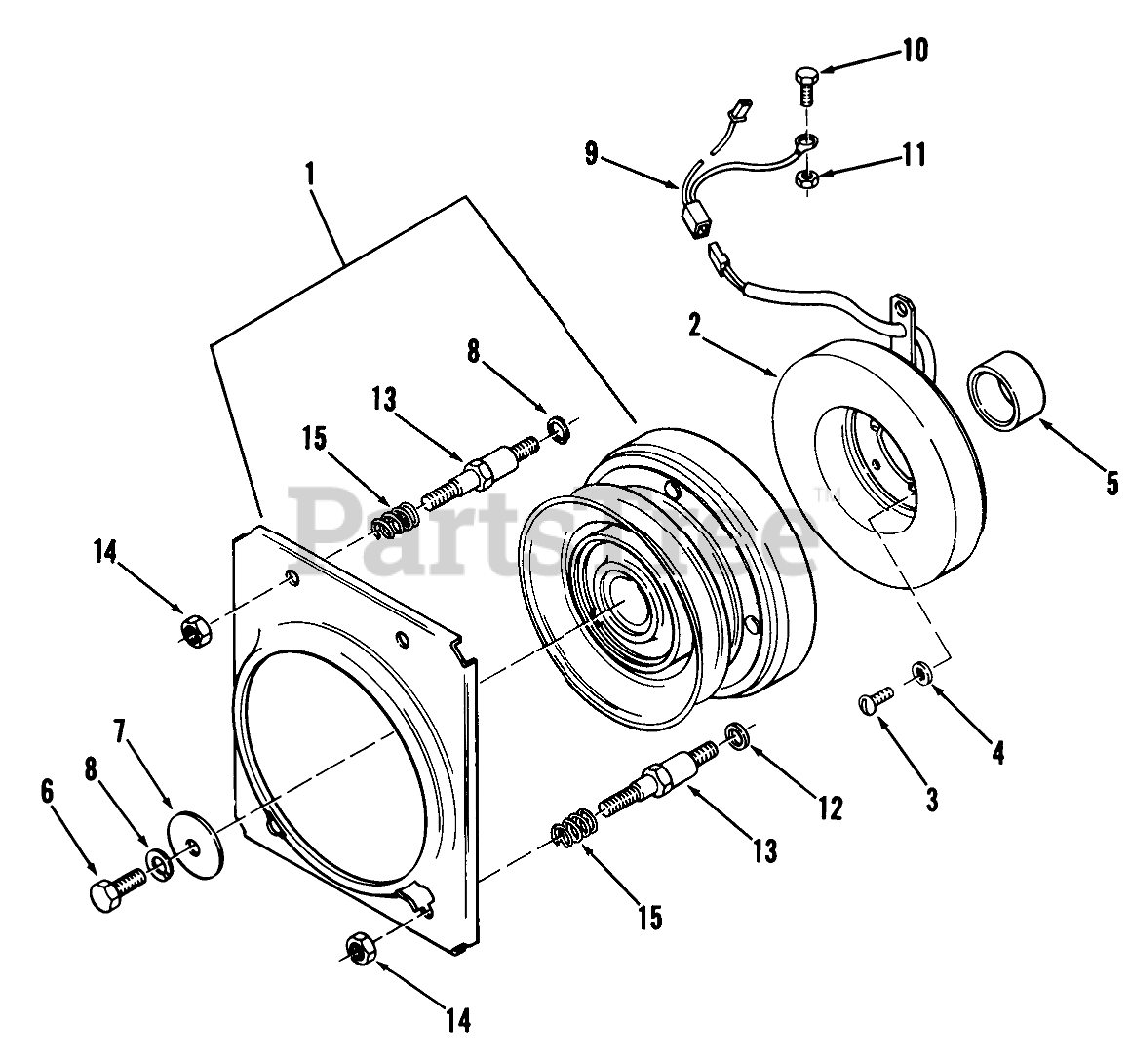

ELECTRIC PTO CLUTCH (D-160) Parts Diagram

  • Title

1

Toro 105008

Rotor Assembly

$

$

Not available

2

Toro 105009

Field Assembly

$

$

Not available

3

Toro 910807

Screw
(Superseded to 3250-31)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 920152

Lockwasher Internal

$

$

Not available

5

Toro 105012

Sleeve

$

$

Not available

6

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

7

Toro 105041

Washer .406 x 1.75 x .187

$

$

Not available

8

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

9

Toro 105025

Assy-Wire and Plug

$

$

Not available

10

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

12

Toro 105042

Washer-Copper

$

$

Currently unavailable

13

Toro 105010

Stud

$

$

Not available

14

Toro 915693

Nut
(Superseded to 9156934)

$1.99

$

In Stock, Qty 5

0

15

Toro 105011

Spring

$

$

Not available
