91-16B802 (C-161) - Toro Lawn Tractor (1979) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Lawn Tractor

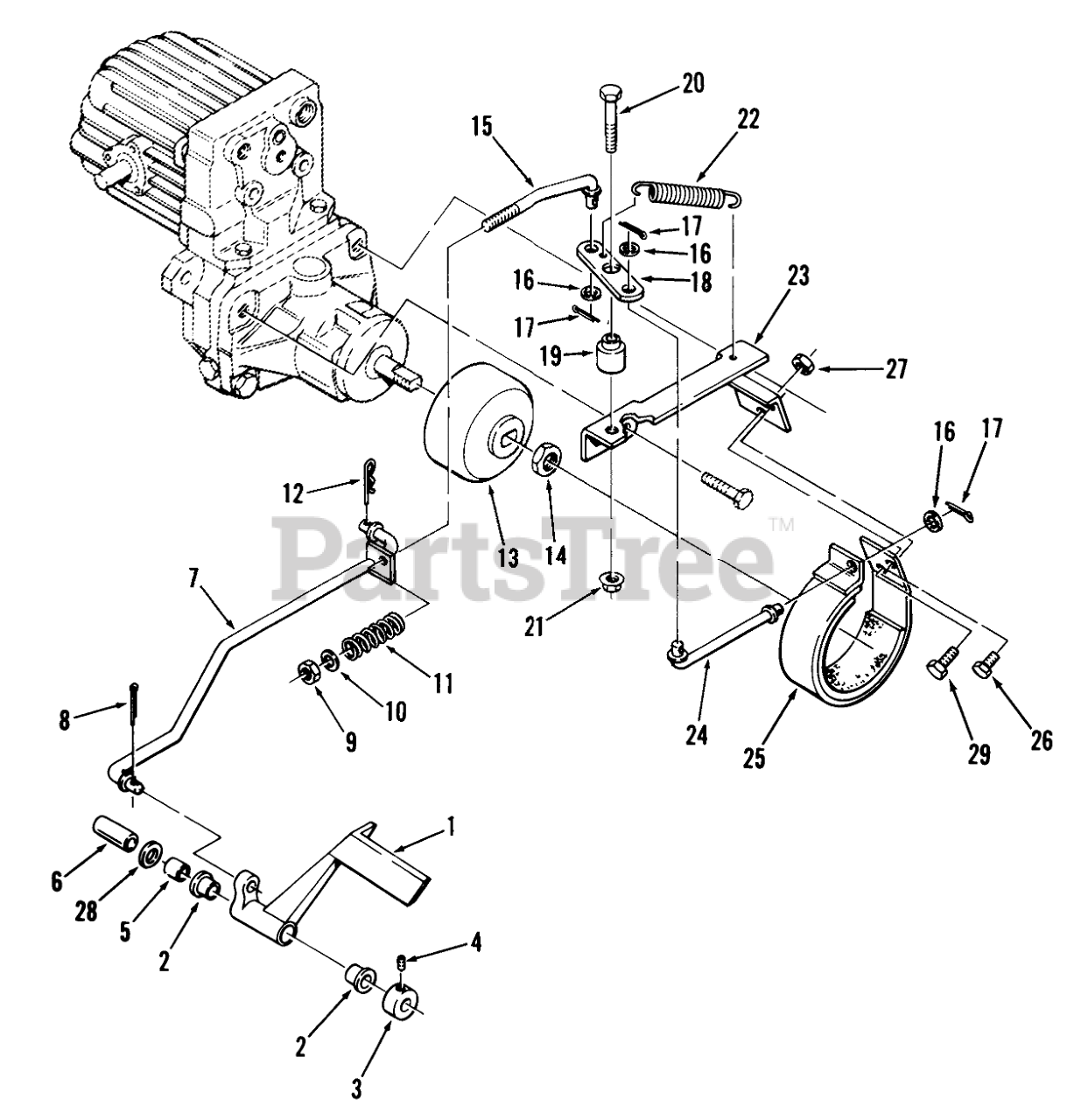

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title
1

Toro 102747

PEDAL R

$

$

Not available

2

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

3

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

4

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

5

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

6

Toro 979207

SPACER

$

$

Not available

7

Toro 106755

Brake Rod-Front

$

$

Not available

7

Toro 106843

BRAKE ROD ASSY R

$

$

Not available

8

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

11

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

12

Toro 933503

USE 933503P PIN

$5.99

$

Usually ships in 3-6 days

0

13

Toro 106328

ASSY-BRAKE DRUM

$

$

Not available

14

Toro 915638

E.S. Nut 9/16-18 Thin
(Superseded to 3296-57)

$1.99

$

Usually ships in 3-6 days

0

15

$

$

Not available

16

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

17

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

18

Toro 106320

Lever

$

$

Not available

19

Toro 9475

SPACER

$

$

Not available

20

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

22

Toro 6949

CLUTCH SPRING

$

$

Not available

23

Toro 106362

Brake Bracket

$

$

Not available

24

$267.99

$

Usually ships in 3-6 days

0

25

Toro 9593

BRAKE BAND ASM

$156.99

$

In Stock, only 3 left!

0

26

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

27

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

28

Toro 920015

Washer
(Superseded to 3256-28)

$3.99

$

In Stock, Qty 20+

0

29

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 3 left!

0
