91-16B802 (C-161) - Toro Lawn Tractor (1979) AUTOMATIC TRANSMISSION Parts Diagram

Lawn Tractor

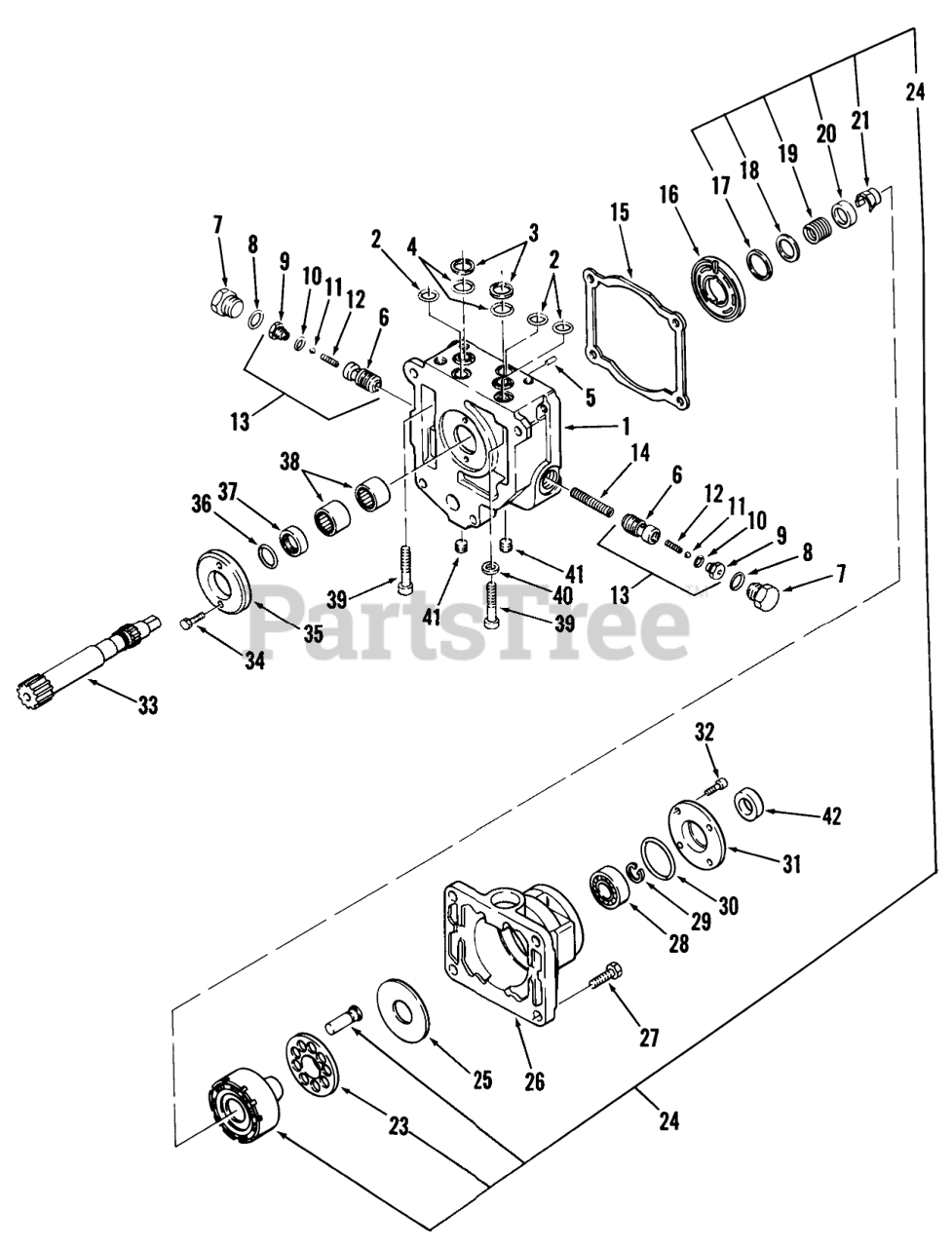

AUTOMATIC TRANSMISSION Parts Diagram

  • Title
1

Toro 200193

End Cap-Motor

$

$

Not available

2

Toro 971015

O RING

$2.49

$

In Stock, Qty 20+

0

3

Toro 103184

RING BACKUP

$9.99

$

In Stock, Qty 7

0

4

Toro 971018

O RING

$8.99

$

In Stock, Qty 6

0

5

Toro 200198

Locating Pin

$

$

Not available

6

Toro 103588

Sleeve
(Superseded to 25-2410)

$

$

Not available

7

$

$

Not available

8

Toro 973500

O-RING
(Superseded to 75-0240)

$2.99

$

Usually ships in 3-6 days

0

9

Toro 103591

Valve

$

$

Not available

10

Toro 973190

O-Ring

$

$

Not available

11

$

$

Not available

12

Toro 103589

SPRING

$

$

Not available

13

Toro 103588

Sleeve
(Superseded to 25-2410)

$

$

Not available

14

Toro 103592

Spring
(Superseded to 25-2610)

$35.99

$

Usually ships in 3-6 days

0

15

Toro 200191

Gasket-Motor

$

$

Not available

16

Toro 200203

Valve Plate
(Superseded to 94-1805)

$645.99

$

Usually ships in 3-6 days

0

17

Toro 200208

RING-SUN9006250-0112

$

$

Not available

18

Toro 200209

WASHER-9009625-0018

$

$

Not available

19

Toro 200210

Spring

$

$

Not available

20

Toro 200211

SEAT-SUND 3102407

$

$

Not available

21

Toro 200204

Retaining Clip

$

$

Not available

23

Toro 200212

RETAINER-SUN 3100194

$

$

Not available

24

Toro 200190

Cyl Blk Kit Inc 17-23

$

$

Not available

25

Toro 200188

Thrust Plate

$

$

Not available

26

Toro 200189

Motor Housing

$

$

Not available

27

Toro 200202

Hex Head Cap Screw

$

$

Not available

28

Toro 200187

BALL BRG9001305-0004

$

$

Not available

29

Toro 200246

SNAP RING

$

$

Not available

30

Toro 970132

O-RING

$7.99

$

Usually ships in 3-6 days

0

31

Toro 200253

PLATE-COVER

$

$

Not available

32

Toro 200200

Cap Screw

$

$

Not available

33

Toro 200251

Motor Shaft

$

$

Not available

34

Toro 200195

Cap Screw

$

$

Not available

35

$

$

Not available

36

Toro 200205

O-RING--9004175-0001

$28.99

$

Usually ships in 3-6 days

0

37

Toro 200196

Bellcrank Assembly

$

$

Not available

38

Toro 200192

Needle Bearing

$

$

Not available

39

Toro 200186

Socket HD Cap Screw

$

$

Not available

40

Toro 200185

Copper Washer

$

$

Not available

41

Toro 200199

Pipe Plug

$

$

Not available

42

$

$

Not available
