91-16B802 (C-161) - Toro Lawn Tractor (1979) AUTOMATIC TRANSMISSION Parts Diagram

Lawn Tractor

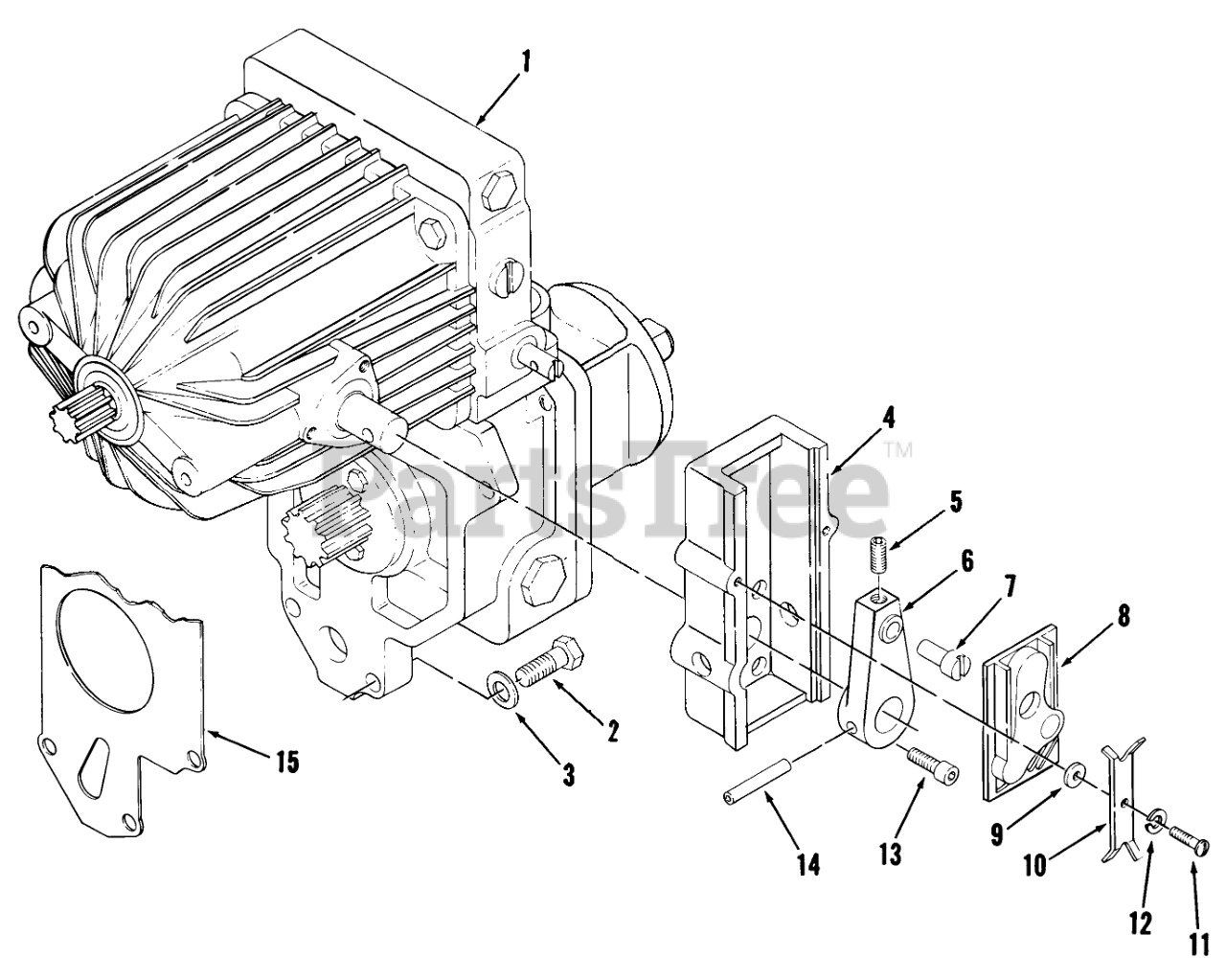

AUTOMATIC TRANSMISSION Parts Diagram

  • Title
1

Toro 106458

Pump & Motor C-121 Only

$

$

Not available

1

Toro 106459

Trans Assembly Piston To Piston-Complete

$

$

Not available

2

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

3

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

4

Toro 5993

SUPPORT CAM BLOCK

$

$

Not available

5

Toro 909849

USE 909849P SCREW

$

$

Not available

6

Toro 102787

Belt Guide

$

$

Not available

7

Toro 5995

ECC CAM FOLLOWER

$

$

Not available

8

Toro 5996

CAM

$

$

Not available

9

Toro 920229

WASHER

$

$

Not available

10

Toro 5998

TENSION PLATE

$

$

Not available

11

Toro 910777

SCREW

$

$

Not available

12

Toro 920078

LOCKWASHER

$

$

Not available

13

Toro 911037

SHCS 1/4-20 X 1/2

$

$

Not available

14

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

15

Toro 102759

GASKET

$11.99

$

Usually ships in 3-6 days

0
