91-10K802 (C-101) - Toro Lawn Tractor (1979) SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

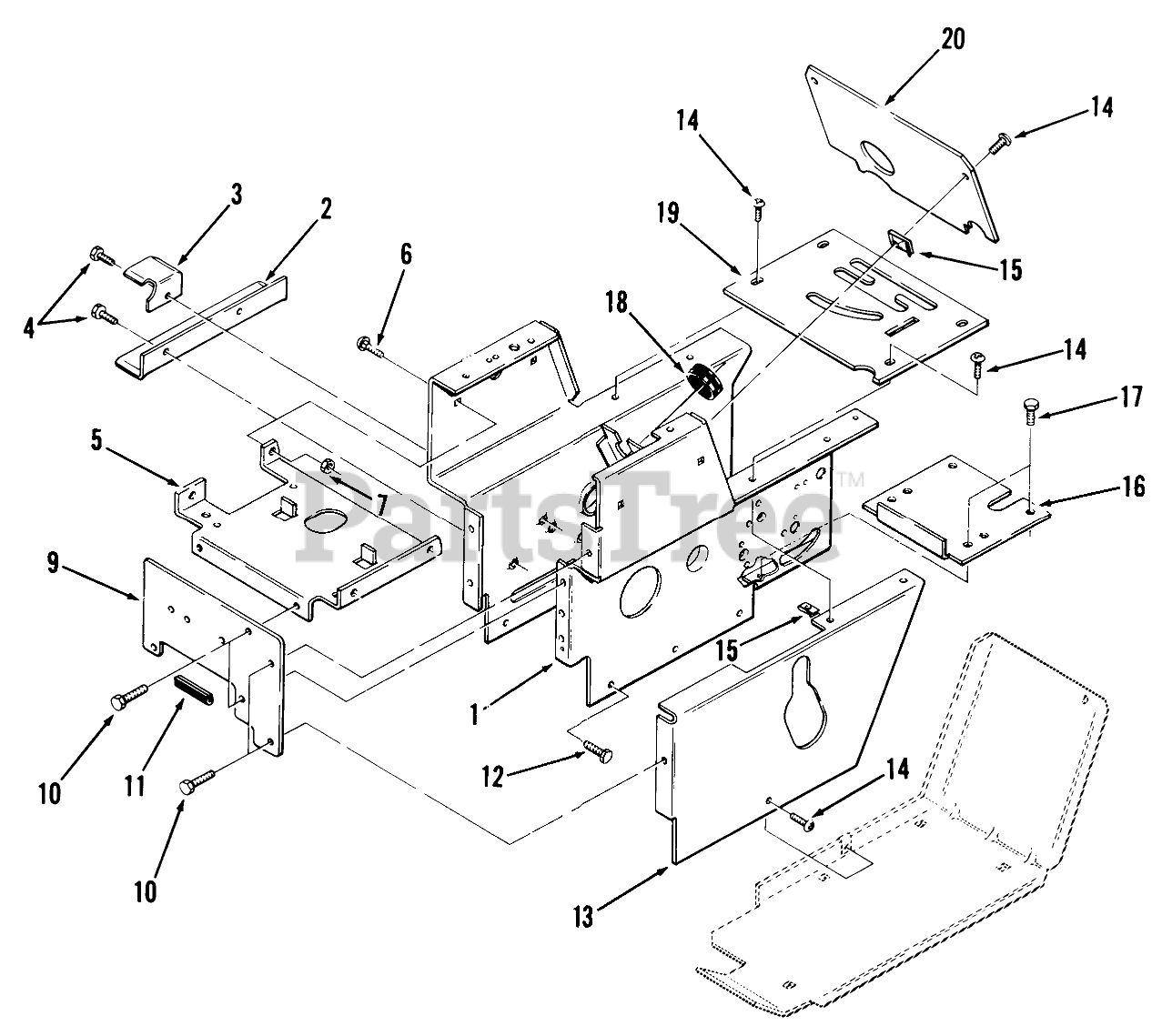

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 106213

Hoodstand

$

$

Not available

2

Toro 106209

ANGL-BLT GURDB

$20.99

$

Usually ships in 3-6 days

0

3

Toro 106253

Belt Bracket
(Superseded to 108537)

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 107007

Battery Support Bracket
(Superseded to 110095)

$

$

Not available

6

Toro 900035

CARRIAGE BOLT -4

$

$

Not available

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 106342

Front Plate

$

$

Not available

9

Toro 107400

Front Plate C-161 Twin Only

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

12

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

13

Toro 106774

Side Cover LH

$

$

Not available

13

Toro 106773

Side Cover LH
(Superseded to 113935-01)

$81.99

$

Usually ships in 3-6 days

0

14

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

15

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

16

Toro 106250

Cover-Dust
(Superseded to 106250-03)

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 104248

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Toro 106405

Shift Cover Plate C-121 Only

$

$

Not available

19

Toro 106347

Shift Cover Plate C-141, C-161 Only

$

$

Not available

19

Toro 106830

Shift Cover Plate
(Superseded to 111512)

$

$

Not available

20

Toro 107465

Ammeter Plate

$

$

Not available

20

Toro 107494

PLATE-HOODSTAND REAR

$

$

Not available

3

Toro 106261

Belt Bracket
(Superseded to 88-2170-03)

$

$

Not available

19

Toro 107979

SHIFT PLATE

$

$

Not available

19

Toro 107608

PLATE-SHIFT PATTE B

$

$

Not available
