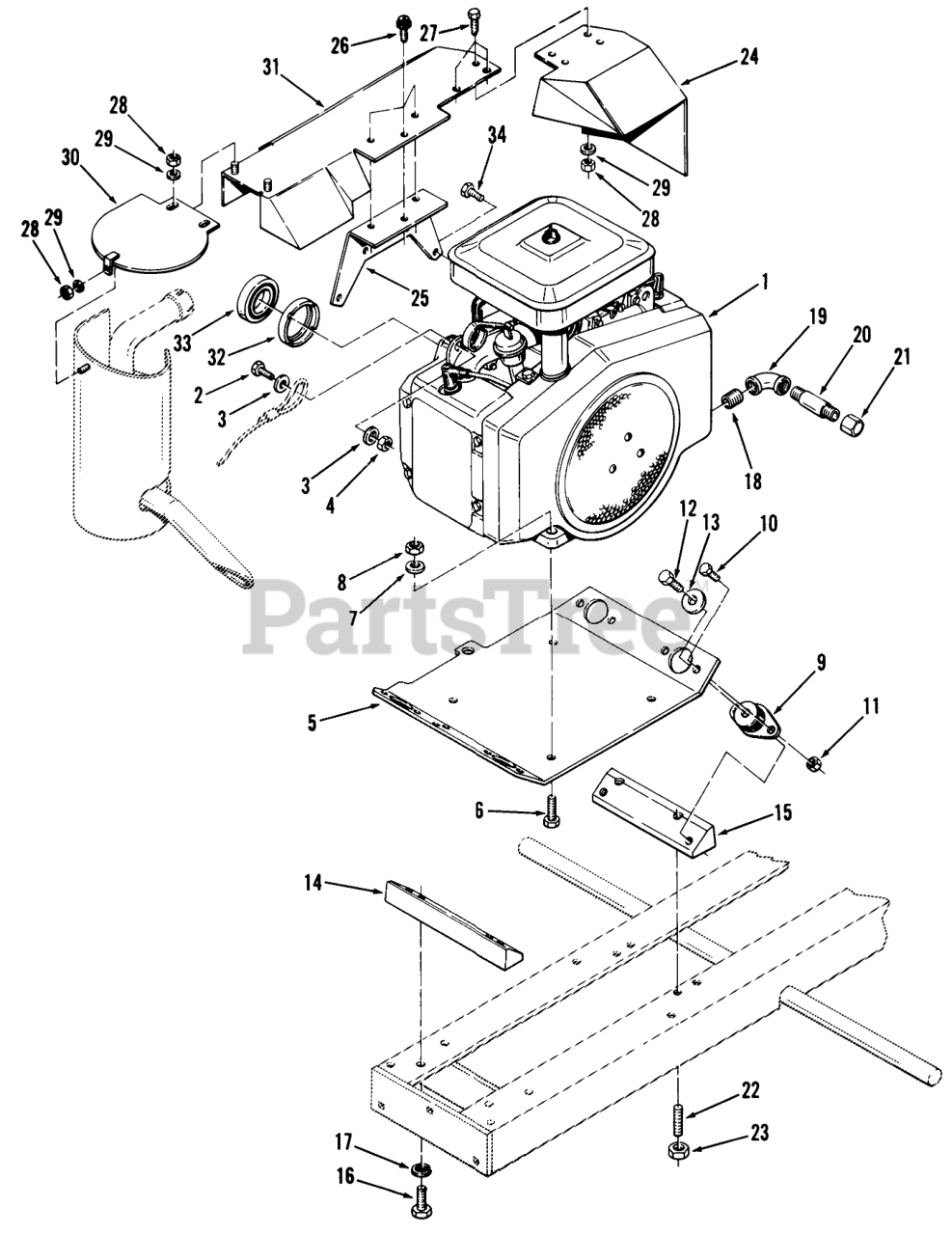

91-08K802 (C-81) - Toro Lawn Tractor (1979) TWIN CYLINDER ENGINES Parts Diagram

Lawn Tractor

TWIN CYLINDER ENGINES Parts Diagram

  • Title

1

Toro 106777

Engine-16HP Briggs & Stratton 401417

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Midel and Spec. Numbers Shown Above.

$

$

Currently unavailable

1

Toro 106777

Engine-16HP Briggs & Stratton 401417

Note: WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only, Engines and Engine Parts Are Not Availa

$

$

Currently unavailable

2

Toro 908046

H H C S
(Superseded to 324-4)

$3.99

$

Usually ships in 3-6 days

0

3

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

4

Toro 915114

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

5

Toro 106506

Engine Cradle

$

$

Not available

6

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

7

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 106434

Isolation Mount
(Superseded to 108309)

$65.99

$

Usually ships in 3-6 days

0

10

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

14

Toro 106504

Engine Mounting Block-Front

$

$

Not available

15

Toro 106503

MOUNT BLOCK-REAR

$

$

Not available

16

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

17

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

18

Toro 943322

Nipple 3/8

$

$

Not available

19

Toro 943023

Elbow 3/8

$

$

Not available

20

Toro 943512

Nipple 3/8 X 7

$

$

Not available

21

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

22

Toro 909885

SET SRW 3/8X16-1 3/4

$

$

Not available

23

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

24

Toro 106820

Rear Heat Shield

$

$

Not available

25

Toro 106776

BRACKET-HEAT SHIELD

$

$

Not available

26

Toro 926487

Washer HD. S.T. Bolt 1/4-20 X 5/8 (Type F)

$

$

Currently unavailable

27

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

28

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

29

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

30

Toro 106817

Muffler Shield

$

$

Not available

31

Toro 107382

HEAT SHIELD ASSY

$

$

Not available

32

Toro 106498

THRUST WASHER

$130.99

$

Usually ships in 3-6 days

0

33

Toro 106499

BEARING-BALL

$

$

Not available

34

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0
