9091-0 - Generac 3,300 Watt Portable Generator Generator No. 74165 Parts Diagram

3,300 Watt Portable Generator

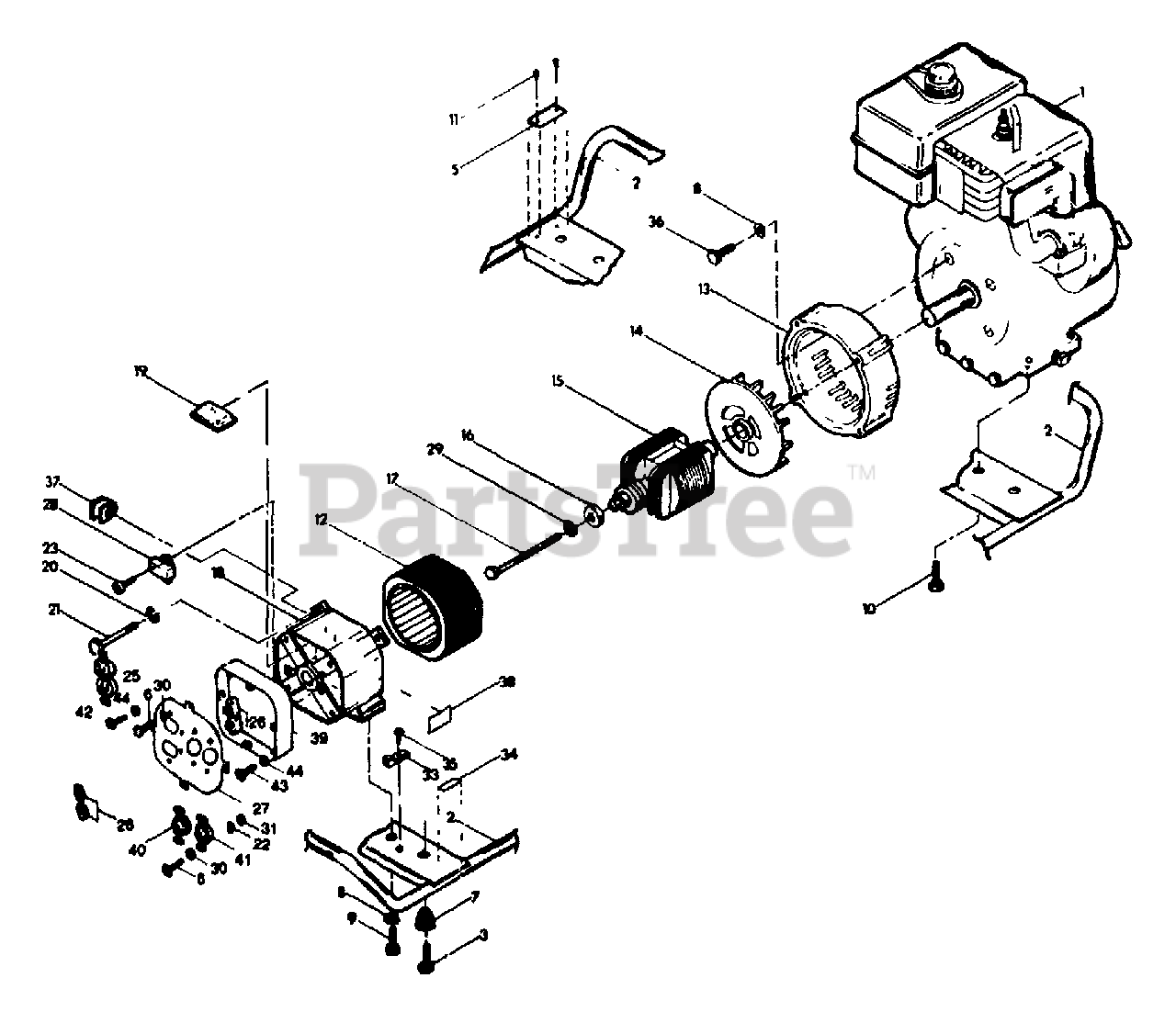

Generator No. 74165 Parts Diagram

  • Title

1

Briggs & Stratton 69649

ENGINE- Tecumseh HM-80

$

$

Currently unavailable

2

Briggs & Stratton 72097

CRADLE ASSY

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW- 5/16"-18 x 1/2"

$

$

Not available

5

Briggs & Stratton 67430J

PLATE, Serial

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW- No. 8-32 x 1/2"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCKWASHER- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW- M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

10

Briggs & Stratton 59637

SCREW- 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 36261

RIVET (Stainless Steel)

$

$

Not available

12

Briggs & Stratton 75484

STATOR ASSY
(Superseded to 7075484YP)

$37.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

15

Briggs & Stratton 72067

ROTOR ASSY

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 46958

BOLT, Rotor- 5/16"-24 x 8"

$

$

Not available

18

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, Bridge Rectifier Circuit
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCKWASHER- M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449F

BOLT, Stator- M6-1.00 x 140mm

$

$

Not available

22

Briggs & Stratton 22264

LOCKWASHER- M8

$

$

Not available

23

Briggs & Stratton 66449

SCREW- M5-0.80 x 15mm

$

$

Currently unavailable

25

Briggs & Stratton 68759

RECEPTACLE- 120 volts a-c
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 74155

BREAKER, Circuit- 15 amp
(Superseded to 7074155YP)

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 74156

PANEL, Silkscreened
(Superseded to 7106232AYP)

$

$

Not available

28

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 67451

FLATWASHER (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

WASHER (Serrated)- No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 67210A

DECAL-Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW-No. 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22336

SCREW- 5/16"-24 x 3/4"

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72296

DECAL- Data
(Superseded to 7072296YP)

$33.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 72280

SHROUD, Panel
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 68868

RECEPTACLE- 110 volts, 30A.
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68867

RECEPTACLE- 110/220 volts
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 33528

SCREW- No. 10-32 x 1/4"

$

$

Currently unavailable

43

Briggs & Stratton 73540

SCREW- M5-0.80

$

$

Currently unavailable

44

Briggs & Stratton 22152

LOCKWASHER- No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 75486

MANUAL, Owner's

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, Connector- 110 volts
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector- 110/220 volts
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
