90702-0025-01 - Briggs & Stratton Vertical Engine Blower Hsgs, Rewind Start Parts Diagram

Vertical Engine

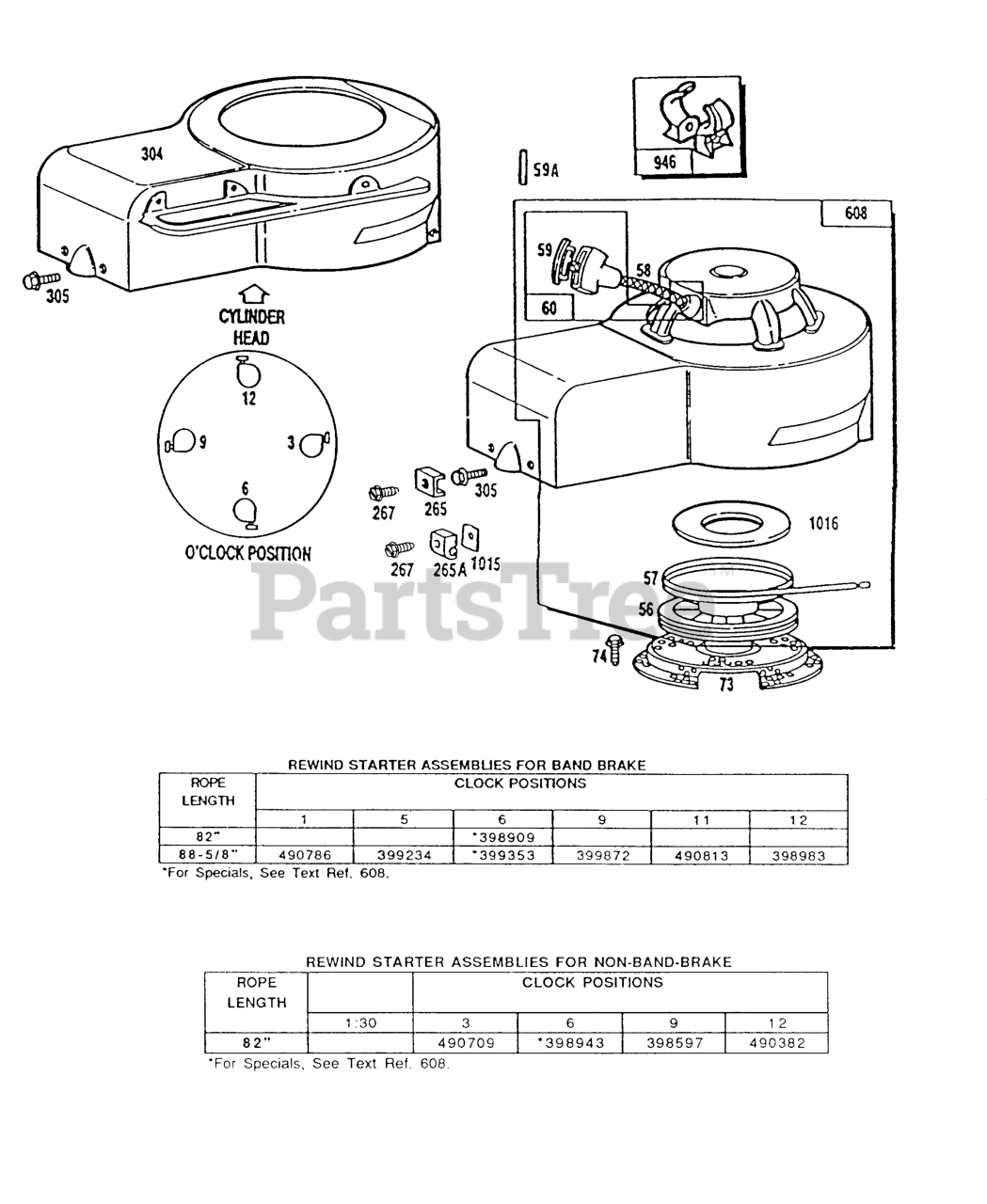

Blower Hsgs, Rewind Start Parts Diagram

  • Title

56

Briggs & Stratton 280439

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 10

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 280406

Rope, Starter (81" Cut To Required Length)
(Superseded to 280406S)

Note: If Longer Rope is Needed, Order No. 280399 and Cut to Required Length. Order 66734 for 48-5/8" Long Rope.

$8.49

$

In Stock, only 4 left!

0

59A

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

59

Briggs & Stratton 396892

Insert-Starter Rope

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

Note: Included in Starter Drive Kit-See Part No. 395727

$3.99

$

In Stock, Qty 8

0

265A

Briggs & Stratton 213146

Clamp, Casing
(Superseded to 690798)

$5.49

$

In Stock, only 1 left!

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 5

0

267

Briggs & Stratton 94694

Screw, Tapping Hex
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

608

No Nomenclature

$

$

Not available

608

Briggs & Stratton 398597

Starter-Rewind (82"Rope) (9 O'clock)

$34.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 398909

Starter-Rewind (Rope 82") (6 O'clock)

Note: For Specials, See Text Ref. 608.

$46.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 398943

Rewind Start Assy/non-Band Engines Rope Length 82" Clock Positions 6
(Superseded to 492508)

Note: For Specials, See Text Ref. 608.

$40.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 398983

Starter-Rewind (Rope 82") (6 O'clock)

$98.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 399234

Starter-Rewind (82" Rope) (5 O'clock)

$36.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 399353

Rewind Starter Assembiles For Band Brake Rope Length 82" Clock Positions 6

Note: For Specials, See Text Ref. 608.

$48.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 399872

Rewind Starter Assembiles For Band Brake Rope Length 82" Clock Positions 9

$47.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 490382

Starter-Rewind (82" Rope) (12 O'clock)

$32.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 490709

Blower Housing/Star (82" Rope) (3 O'clock)

$

$

Not available

608

Briggs & Stratton 490786

Rewind Starter Assembiles For Band Brake Rope Length 88-5/8" Clock Positions 1

$43.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 490813

Rewind Starter Assembiles For Band Brake Rope Length 82" Clock Positions 11

$36.99

$

Usually ships in 2-12 days

0

946

Briggs & Stratton 396526

Guide-Rope
(Superseded to 205912GS)

$4.99

$

Usually ships in 2-12 days

0

1015

Briggs & Stratton 223649

Plate-Casing Clamp

$4.49

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
