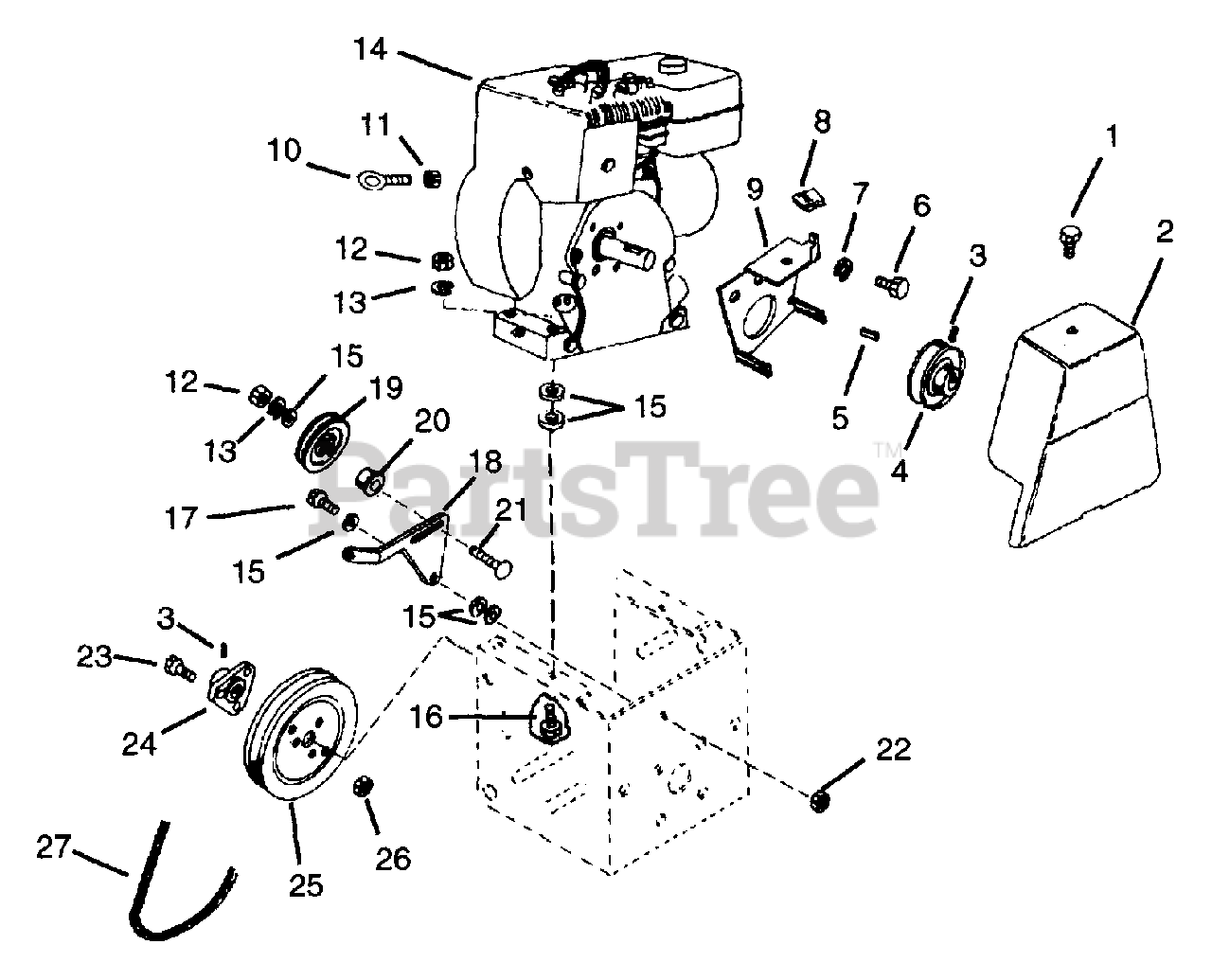

902811 (FT 314) - Ariens 14" Front Tine Tiller, 3hp Tecumseh (SN: 000101 & Above) Engine And Drive Parts Diagram

14" Front Tine Tiller, 3hp Tecumseh

Engine And Drive Parts Diagram

  • Title

1

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

2

Ariens 00280200

BELT COVER

$26.99

$

In Stock, only 1 left!

0

3

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 13

0

4

Ariens 00240900

ENGINE SHEAVE
(Superseded to 50201800)

$

$

Not available

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

6

Ariens 05905200

BLT-HEX .75-16X2.50 PL GR5

$

$

Not available

7

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

8

Ariens 06508500

NUT-SPEED U-TYPE .312-18
(Superseded to 06513000)

$

$

Not available

9

Ariens 00280100

BELT FINGER & COVER BRACKET

$

$

Not available

10

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

$9.99

$

Usually ships in 4-12 days

0

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

13

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 08235400

TECUMSEH 3HP TILLER ENG.

Note: (Used Only On Model(s): 411).

$

$

Not available

Ariens 08246500

3 HP TILLER TEC #H30-35500X

Note: (Used Only On Model(s): 811).

$

$

Not available

15

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

17

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 00280500

IDLER BRACKET

$5.99

$

Usually ships in 4-12 days

0

19

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

20

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

21

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 19

0

22

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

24

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 1 left!

0

25

Ariens 00286100

SHEAVE

$45.99

$

Usually ships in 4-12 days

0

26

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 07210900

V-BELT, 4L-RAW EDGE

$40.99

$

In Stock, only 1 left!

0
