902807 (RT 516) - Ariens 16" Front Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Tiller Gearcase Parts Diagram

16" Front Tine Tiller, 5hp Briggs & Stratton

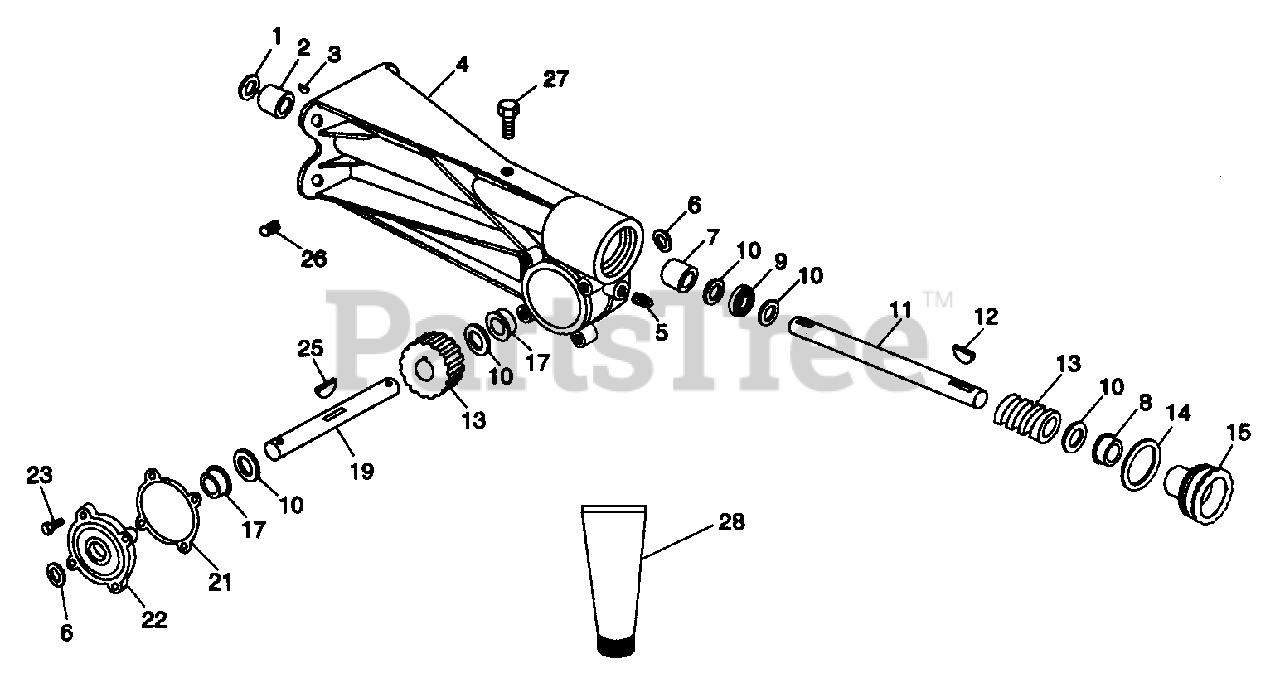

Tiller Gearcase Parts Diagram

  • Title
1

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 18

0

2

Ariens 05510300

BSHG-SLV .750X1.000X1.000

$17.99

$

In Stock, only 2 left!

0

3

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 9

0

4

Ariens 00287100

GEARCASE - ALUMINUM

Note: REQUIRES 4 OUNCES L2 LUBE

$

$

Not available

5

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05609900

SEAL .750X1.980X.375

$15.99

$

Usually ships in 4-12 days

0

7

Ariens 05500900

BSHG-SLV .750X1.000X.750

$9.99

$

Usually ships in 4-12 days

0

8

Ariens 05511500

BSHG-FLG .750X1.000X.750X1.132

$17.99

$

In Stock, only 1 left!

0

9

Ariens 05410400

BRG-N THRST .754X1.24X.078

$12.99

$

In Stock, Qty 7

0

10

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

11

Ariens 00280700

WORM SHAFT

$155.99

$

Usually ships in 4-12 days

0

12

Ariens 06603300

KEY-FTHR .188X1.38X.188

$4.99

$

In Stock, only 1 left!

0

13

Ariens 50202700

WORM AND WORM GEAR SERVICE

$224.99

$

In Stock, only 1 left!

0

14

$21.99

$

Usually ships in 4-12 days

0

15

Ariens 00285100

ADJUSTMENT PLUG

$140.99

$

Usually ships in 4-12 days

0

17

Ariens 05510500

BSHG-FLG .750X1.250X.750X1.375

$25.99

$

Usually ships in 4-12 days

0

19

Ariens 00281100

TINE SHAFT

$

$

Not available

21

$3.99

$

In Stock, only 1 left!

0

22

$

$

Not available

23

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

$2.49

$

In Stock, only 2 left!

0

Ariens 07402300

SCR-TAP .312-18X1.0 HWH PL TR
(Superseded to 07413900)

$3.99

$

In Stock, only 2 left!

0

24

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

26

Ariens 00200900

BREATHER

$

$

Not available

27

Ariens 07401600

SCR-TAP .375-16X .50 HWH PL TR
(Superseded to 07412900)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

$18.99

$

In Stock, Qty 20+

0
