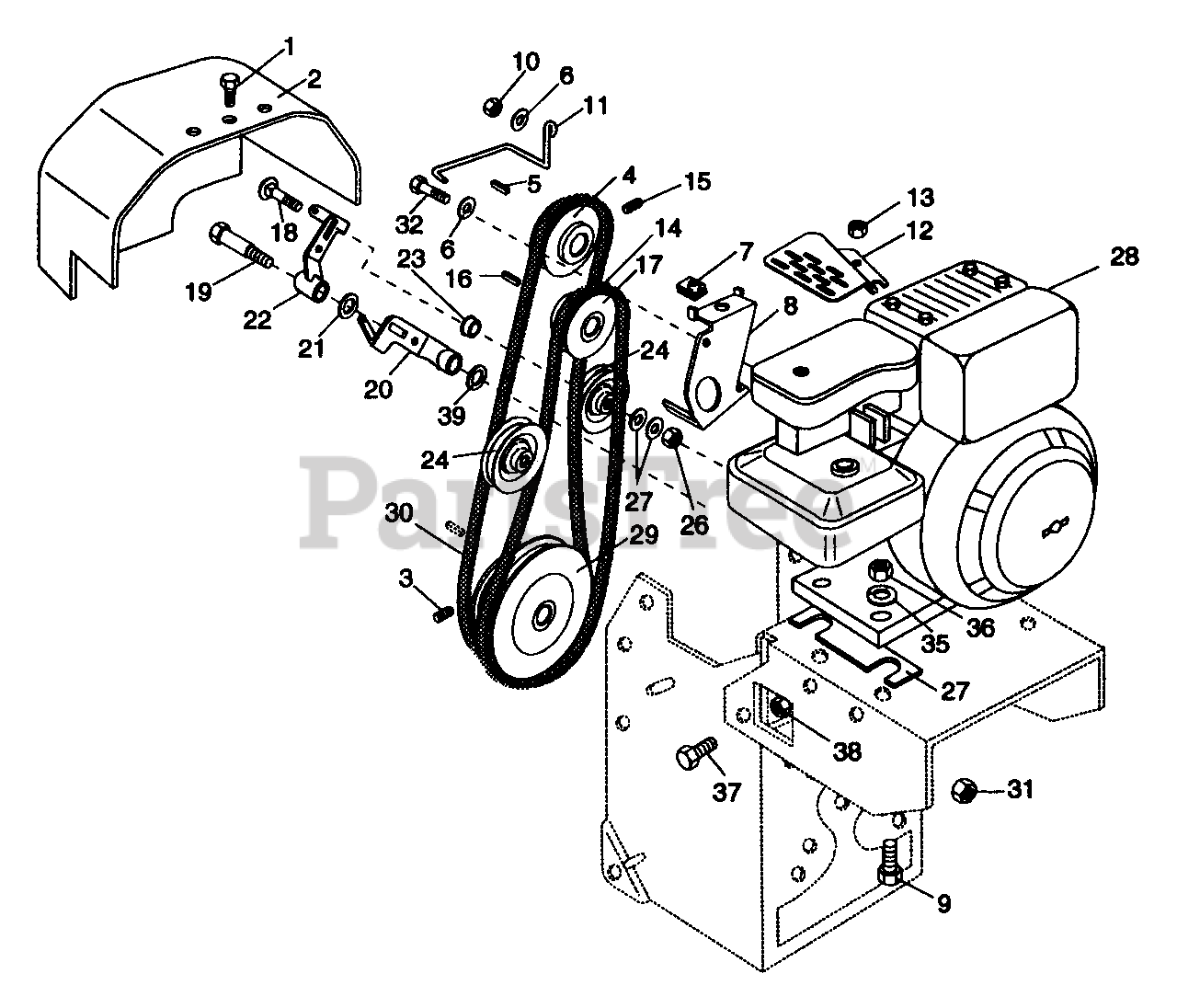

902807 (RT 516) - Ariens 16" Front Tine Tiller, 5hp Briggs & Stratton (SN: 000101 & Above) Engine And Drive Parts Diagram

16" Front Tine Tiller, 5hp Briggs & Stratton

Engine And Drive Parts Diagram

  • Title

1

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 00229700

BELT COVER

Note: (Used Only On Model(s): 018).

$69.99

$

Usually ships in 4-12 days

0

2

Ariens 00239700

BELT COVER
(Superseded to 50203700)

Note: (Used Only On Model(s): 807).

$

$

Not available

3

Ariens 06000800

SCR-SET .25-20X.38 SKHCUP OH

Note: (Used Only On Model(s): 018).

$

$

Not available

3

Ariens 06000800

SCR-SET .25-20X.38 SKHCUP OH

Note: (Used Only On Model(s): 807).

$

$

Not available

4

Ariens 00231200

ENGINE SHEAVE
(Superseded to 50201600)

Note: (Used Only On Model(s): 018).

$

$

Not available

4

Ariens 07320600

SHEAVE 4.000X.751

Note: (Used Only On Model(s): 807).

$

$

Not available

5

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

6

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06513000

NUT-SPEED U-TYPE .250-20

$

$

Not available

8

Ariens 00231100

REVERSE BELT FINGER

Note: (Used Only On Model(s): 018,807).

$

$

Not available

9

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

10

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 00237400

BELT FINGER

Note: (Used Only On Model(s): 018).

$

$

Not available

11

Ariens 00243900

BELT FINGER

Note: (Used Only On Model(s): 807).

$

$

Not available

12

Ariens 00234100

MUFFLER SHIELD

Note: (Used Only On Model(s): 018).

$

$

Not available

13

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

Note: (Used Only On Model(s): 018).

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07208500

V-BELT, 3L-WRAPPED

Note: (Used Only On Model(s): 018,807).

$25.99

$

Usually ships in 4-12 days

0

15

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

Note: (Used Only On Model(s): 018).

$2.99

$

In Stock, Qty 15

0

16

Ariens 06601500

KEY-WDRF .125X.625X.250 SAE5

$2.49

$

In Stock, only 1 left!

0

17

Ariens 00240700

REVERSE SHEAVE
(Superseded to 50201700)

Note: (Used Only On Model(s): 018).

$

$

Not available

17

Ariens 00244100

REVERSE SHEAVE

Note: (Used Only On Model(s): 807).

$

$

Not available

18

Ariens 06204800

BLT-RDHDSQNK .31-18X1.25 SHTPL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 00240400

WHEEL SHOULDER BOLT
(Superseded to 07014000)

Note: (Used Only On Model(s): 018).

$7.99

$

Usually ships in 4-12 days

0

20

Ariens 00229100

IDLER ARM REV.

Note: (Used Only On Model(s): 018).

$

$

Not available

21

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (Used Only On Model(s): 018).

$2.49

$

In Stock, only 1 left!

0

22

Ariens 00229000

IDLER ARM FWD

Note: (Used Only On Model(s): 018).

$

$

Not available

22

Ariens 00239000

IDLER ARM FWD

Note: (Used Only On Model(s): 807).

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

Note: (Used Only On Model(s): 018,807).

$3.49

$

In Stock, only 4 left!

0

24

Ariens 02457400

IDLER
(Superseded to 52007000)

Note: (Used Only On Model(s): 018,807).

$39.99

$

In Stock, Qty 20+

0

25

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

Note: (Used Only On Model(s): 018,807).

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 018,807).

$1.49

$

In Stock, Qty 20+

0

27

Ariens 00215700

SHIM
(Superseded to 00247700)

Note: (Used Only On Model(s): 018).

$5.99

$

Usually ships in 4-12 days

0

27

Shim

Note: (Used Only On Model(s): 807).

$

$

Not available

28

Ariens 08225400

5 HP BRIGGS ENG 135292-0180-01

Note: (Used Only On Model(s): 018,807).

$

$

Not available

29

Ariens 07307800

PLY-DBLV 5.50 X.75 W/KEY SALEM

Note: (Used Only On Model(s): 018).

$

$

Not available

29

Ariens 07320200

SHEAVE , DOUBLE W/.312 SC

Note: (Used Only On Model(s): 807).

$

$

Not available

30

Ariens 07205600

V-BELT, 4L-WRAPPED

$34.99

$

In Stock, only 2 left!

0

31

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

Note: (Used Only On Model(s): 018,807).

$2.99

$

In Stock, Qty 15

0

35

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

37

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

39

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0
