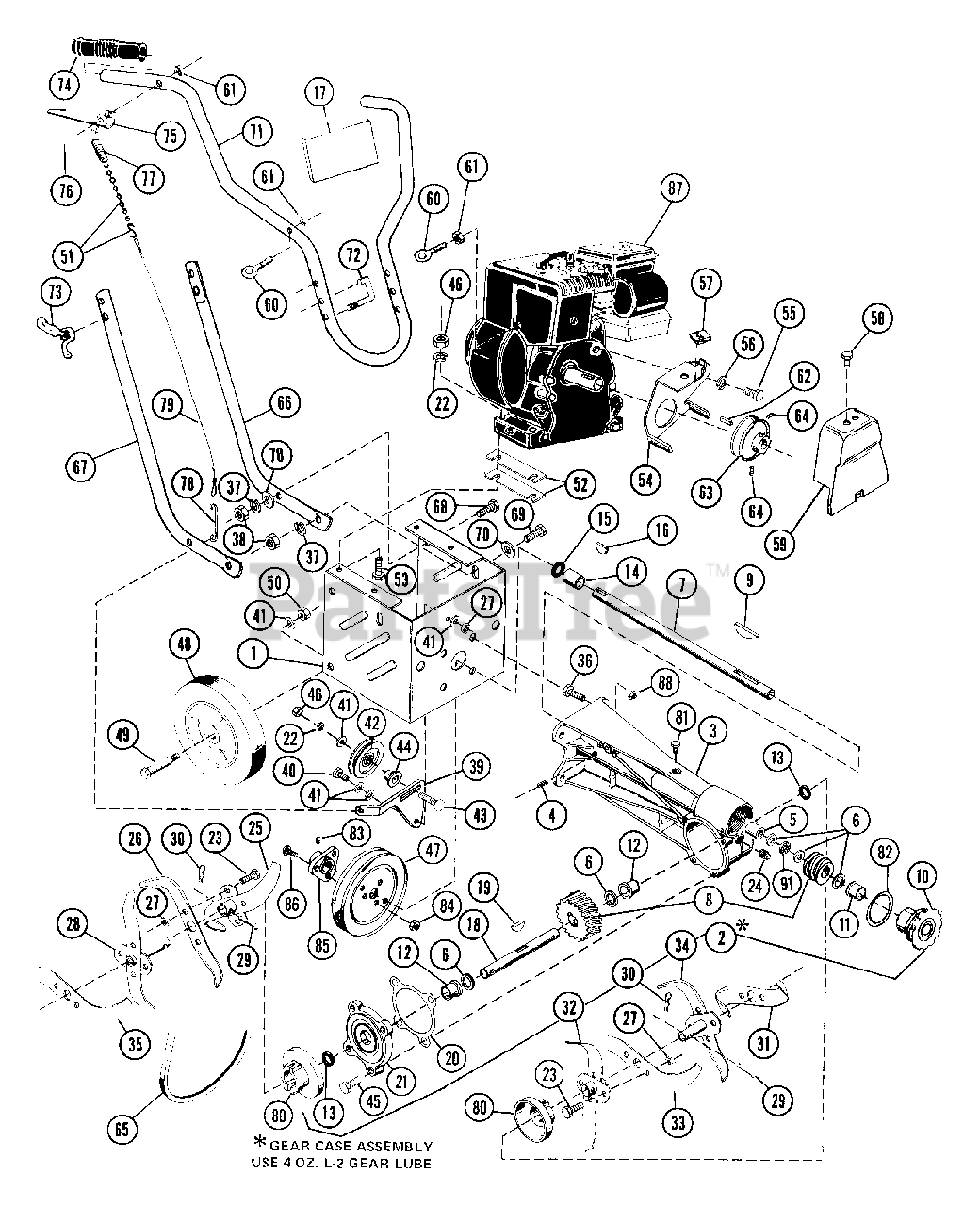

902804 (RT 320) - Ariens 20" Front Tine Tiller, 3hp Briggs & Stratton (SN: 005001 & Above) Rotary Tiller 3 H.P. Parts Diagram

20" Front Tine Tiller, 3hp Briggs & Stratton

Rotary Tiller 3 H.P. Parts Diagram

  • Title
1

Ariens 00280400

MAIN FRAME

$

$

Not available

2

Ariens 60280700

GEAR CASE ASSEMBLY
(Superseded to 50202200)

$

$

Not available

3

Ariens 00287100

GEARCASE - ALUMINUM

$

$

Not available

4

Ariens 00200900

BREATHER

$

$

Not available

5

Ariens 05500900

BSHG-SLV .750X1.000X.750

$9.99

$

Usually ships in 4-12 days

0

6

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

7

Ariens 00280700

WORM SHAFT

$155.99

$

Usually ships in 4-12 days

0

8

Ariens 50280100

WORM & GEAR SERVICE ASSEMBLY

$

$

Not available

9

Ariens 06603300

KEY-FTHR .188X1.38X.188

$4.99

$

In Stock, only 1 left!

0

10

Ariens 00285100

ADJUSTMENT PLUG

$140.99

$

Usually ships in 4-12 days

0

11

Ariens 05511500

BSHG-FLG .750X1.000X.750X1.132

$17.99

$

In Stock, only 1 left!

0

12

Ariens 05510500

BSHG-FLG .750X1.250X.750X1.375

$25.99

$

Usually ships in 4-12 days

0

13

Ariens 05609900

SEAL .750X1.980X.375

$15.99

$

Usually ships in 4-12 days

0

14

Ariens 05510300

BSHG-SLV .750X1.000X1.000

$17.99

$

In Stock, only 2 left!

0

15

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 18

0

16

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

17

Ariens 00283800

NAME PLATE

$

$

Not available

18

Ariens 00281100

TINE SHAFT

$

$

Not available

19

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 8

0

20

$3.99

$

In Stock, only 1 left!

0

21

$

$

Not available

22

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

25

Ariens 00283600

R H INNER TINE SPOOL
(Superseded to 50203000)

$

$

Not available

26

Ariens 00282200

R H INSIDE TINE
(Superseded to 50203000)

$

$

Not available

27

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 00282800

R H OUTER TINE SPOOL
(Superseded to 50203000)

$

$

Not available

29

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

30

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 00282400

R H OUTSIDE TINE
(Superseded to 50203000)

$

$

Not available

32

Ariens 00283300

L H INNER TINE SPOOL
(Superseded to 50203000)

$

$

Not available

33

Ariens 00282100

L H INSIDE TINE
(Superseded to 50203000)

$

$

Not available

34

Ariens 00282700

L H OUTER TINE SPOOL
(Superseded to 50203000)

$

$

Not available

35

Ariens 00282300

L H OUTSIDE TINE
(Superseded to 50203000)

$

$

Not available

36

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

37

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

38

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 00280500

IDLER BRACKET

$5.99

$

Usually ships in 4-12 days

0

40

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

43

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 4 left!

0

45

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$1.49

$

Usually ships in 4-12 days

0

46

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

47

$45.99

$

Usually ships in 4-12 days

0

$

$

Not available

49

Ariens 01111500

SHOULDER BOLT
(Superseded to 07011100)

$

$

Not available

50

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 00204200

CHAIN & CONNECTOR

$6.99

$

In Stock, Qty 6

0

52

Ariens 00215700

SHIM
(Superseded to 00247700)

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 05907300

BLT-HEX .31-18X1.75 PL GR2
(Superseded to 05957400)

$2.99

$

In Stock, Qty 8

0

54

Ariens 00280100

BELT FINGER & COVER BRACKET

$

$

Not available

55

Ariens 05905200

BLT-HEX .75-16X2.50 PL GR5

$

$

Not available

56

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

57

Ariens 06508500

NUT-SPEED U-TYPE .312-18
(Superseded to 06513000)

$

$

Not available

58

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

59

Ariens 00280200

BELT COVER

$26.99

$

In Stock, only 1 left!

0

60

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

$9.99

$

Usually ships in 4-12 days

0

61

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

62

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

63

Ariens 00240900

ENGINE SHEAVE
(Superseded to 50201800)

$

$

Not available

64

Ariens 06000400

SET SCREW
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

65

Ariens 07210900

V-BELT, 4L-RAW EDGE

$40.99

$

In Stock, only 1 left!

0

66

Ariens 00283900

L H LOWER HANDLEBAR

$

$

Not available

67

Ariens 00284000

R H LOWER HANDLEBAR
(Superseded to 00284051)

$

$

Not available

68

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

69

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

70

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

71

Ariens 00284100

UPPER HANDLEBAR
(Superseded to 00284151)

$

$

Not available

72

$

$

Not available

73

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

74

Ariens 07508100

GRIP
(Superseded to 07518600)

$15.99

$

Usually ships in 4-12 days

0

75

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

76

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

77

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

78

$17.99

$

Usually ships in 4-12 days

0

79

Ariens 06911400

CLUTCH CABLE

$

$

Not available

80

Ariens 00283400

DUST CAP

$9.99

$

Usually ships in 4-12 days

0

81

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.99

$

Usually ships in 4-12 days

0

82

$21.99

$

Usually ships in 4-12 days

0

83

Ariens 06000500

SCR-SET .25-20X.25 SKHCUP OH

$2.49

$

In Stock, only 1 left!

0

84

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

85

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 3 left!

0

86

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

87

ENGINE 3 H.P. BRIGGS & STRATTONNO.80202-0808-01

$

$

Not available

88

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

91

Ariens 05410400

BRG-N THRST .754X1.24X.078

$12.99

$

In Stock, Qty 7

0
