902803 (RT 214) - Ariens 14" Front Tine Tiller, 2hp Briggs & Stratton (SN: 000101 - 018000) Tiller 2 H.P. Parts Diagram

14" Front Tine Tiller, 2hp Briggs & Stratton

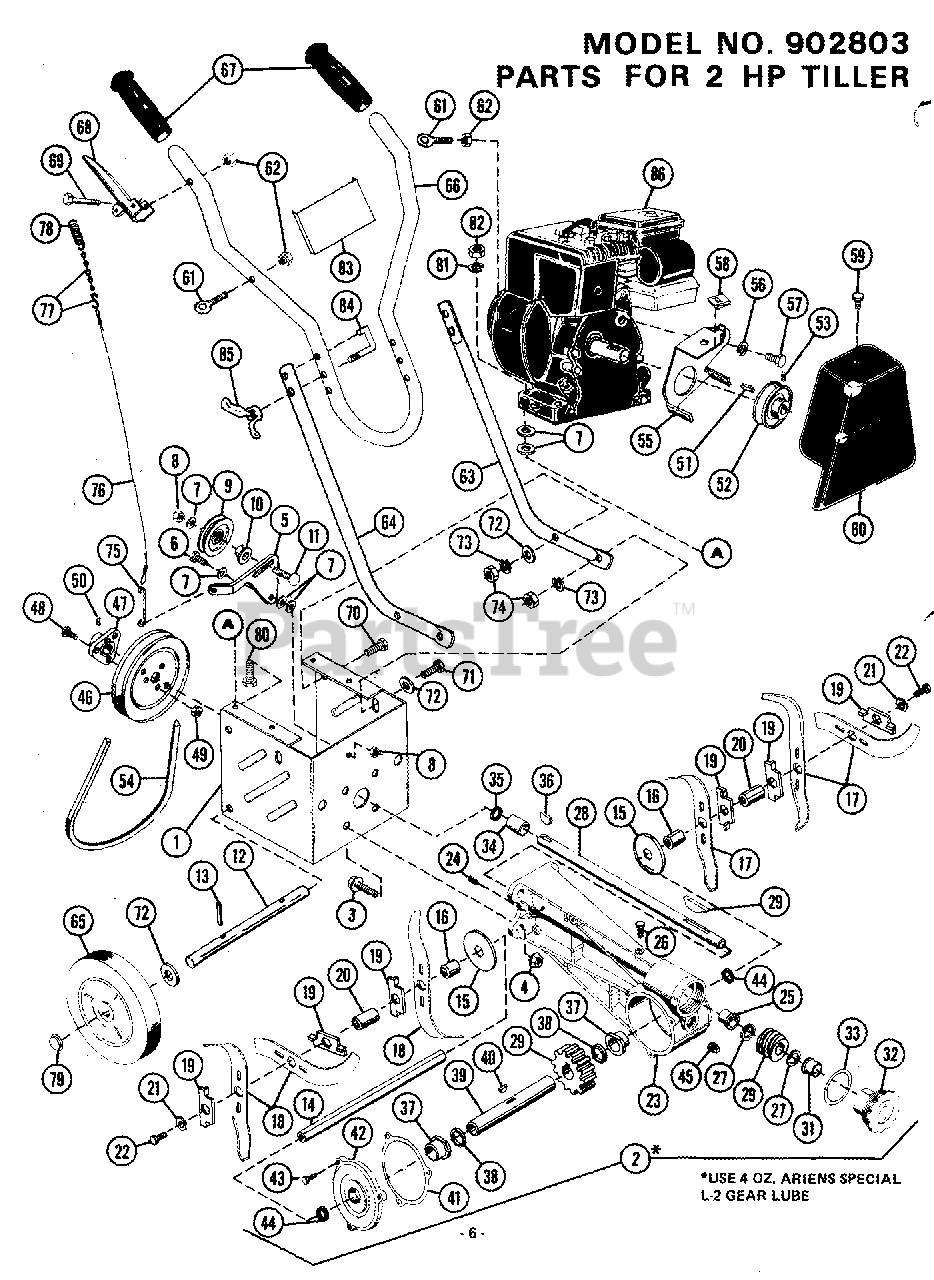

Tiller 2 H.P. Parts Diagram

  • Title

1

Ariens 00284900

FRAME
(Superseded to 00288059)

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 60281400

GEAR CASE - ALUMINUM
(Superseded to 50202300)

$

$

Not available

3

Ariens 07004100

SCREW - FLG WIZ LOCK HH PL

$

$

Not available

4

Ariens 06508000

NUT-LK-FLG .375-16 PL

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 00280500

IDLER BRACKET

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 064002

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

10

Ariens 012131

BRG-CONE ROLLER 50MMX21.5MM
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 06202200

BLT-RDHDSQNK .31-18X1.38SHT PL
(Superseded to 06212100)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00285500

AXLE ROD
(Superseded to 00247300)

$

$

Not available

13

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

14

Ariens 00285600

HEX TINE SHAFT

$

$

Not available

15

Ariens 00285700

DUST CUP
(Superseded to 00285759)

$11.99

$

Usually ships in 4-12 days

0

16

Ariens 00285800

SPACER .747X1.002X1.250

$

$

Not available

17

Ariens 00284700

LEFT HAND TINE
(Superseded to 00284759)

$27.99

$

In Stock, only 1 left!

0

18

Ariens 00284800

RIGHT HAND TINE
(Superseded to 00284859)

$27.99

$

In Stock, only 1 left!

0

19

Ariens 00285900

TINE RETAINER
(Superseded to 00285959)

$34.99

$

Usually ships in 4-12 days

0

20

Ariens 00286000

SPACER .747X1.002X1.562

$

$

Not available

21

Ariens 06301400

WSHR-LK .375X.130
(Superseded to 06306700)

$3.99

$

In Stock, only 1 left!

0

22

Ariens 05912700

BLT-HEX .38-24X.75 GR5
(Superseded to 05962600)

$

$

Not available

23

Ariens 00285000

GEAR CASE

$

$

Not available

24

Ariens 00200900

BREATHER

$

$

Not available

25

Ariens 05511400

BSHG-FLG ??X??X??
(Superseded to 05511200)

$11.99

$

In Stock, Qty 18

0

26

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 06416100

WSHR-HDND-THRST .755X1.40X.062

$6.99

$

In Stock, only 3 left!

0

28

Ariens 00280700

WORM SHAFT

$155.99

$

Usually ships in 4-12 days

0

29

Ariens 06603300

KEY-FTHR .188X1.38X.188

$4.99

$

In Stock, only 1 left!

0

30

Ariens 50280200

WORM & WORM GEAR SERVICE ASSEM

$439.99

$

Usually ships in 4-12 days

0

31

Ariens 05511500

BSHG-FLG .750X1.000X.750X1.132

$17.99

$

In Stock, only 1 left!

0

32

Ariens 00285100

ADJUSTMENT PLUG

$140.99

$

Usually ships in 4-12 days

0

33

Ariens 00285200

GASKET

$21.99

$

Usually ships in 4-12 days

0

34

Ariens 05511600

BSHG-SLV ??X??X??
(Superseded to 05510300)

$17.99

$

In Stock, only 2 left!

0

35

Ariens 05604300

SEAL .750X1.000X.125

$5.99

$

In Stock, Qty 18

0

36

Ariens 06600100

KEY-WDRF .188X.875X.375 SAE11

$2.99

$

In Stock, Qty 10

0

37

Ariens 05511100

BSHG-FLG .500X.750X.750X1.000
(Superseded to 05520600)

$9.49

$

In Stock, Qty 10

0

38

Ariens 0641S6

WASHER, 1.007 x 1.542 x .062 2

$

$

Not available

39

Ariens 00285300

SUB SHAFT

$

$

Not available

40

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 8

0

41

Ariens 00283100

GASKET

$15.99

$

In Stock, only 2 left!

0

42

Ariens 00286800

BEARING FLANGE

$

$

Not available

43

Ariens 07001700

BLT-SERHFWH .31-18X.62 PL
(Superseded to 07047100)

$1.49

$

Usually ships in 4-12 days

0

44

Ariens 05606600

SEAL 1.000X1.980X.375

$15.99

$

In Stock, only 3 left!

0

45

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

46

Ariens 00286100

SHEAVE

$45.99

$

Usually ships in 4-12 days

0

47

Ariens 00286200

HUB
(Superseded to 50202100)

$85.99

$

In Stock, only 3 left!

0

48

Ariens 07005300

BLT-SERRDHD SL .31-18X.75 YZ
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

49

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06000500

SCR-SET .25-20X.25 SKHCUP OH

$2.49

$

In Stock, only 1 left!

0

51

Ariens 06601300

KEY-SQ .188X1.0X.188 SAE 8630

$1.49

$

In Stock, Qty 5

0

52

Ariens 00280300

ENGINE SHEAVE
(Superseded to 50201900)

$

$

Not available

53

Ariens 06000400

SET SCREW
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

54

Ariens 07210900

V-BELT, 4L-RAW EDGE

$40.99

$

In Stock, only 1 left!

0

55

Ariens 00280100

BELT FINGER & COVER BRACKET

$

$

Not available

56

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

57

Ariens 05905200

BLT-HEX .75-16X2.50 PL GR5

$

$

Not available

58

Ariens 06508500

NUT-SPEED U-TYPE .312-18
(Superseded to 06513000)

$

$

Not available

59

Ariens 05903900

BLT-HEX .31-18X.50 PL GR2
(Superseded to 05947200)

$1.49

$

In Stock, Qty 13

0

60

Ariens 00280200

BELT COVER

$26.99

$

In Stock, only 1 left!

0

61

Ariens 01028900

ROD HANGER EYEBOLT
(Superseded to 00247500)

$9.99

$

Usually ships in 4-12 days

0

62

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

63

Ariens 00283900

L H LOWER HANDLEBAR

$

$

Not available

64

Ariens 00284000

R H LOWER HANDLEBAR
(Superseded to 00284051)

$

$

Not available

65

Ariens 07112300

TIRE 8X1.75

$

$

Not available

66

Ariens 00284100

UPPER HANDLEBAR
(Superseded to 00284151)

$

$

Not available

67

Ariens 07508100

GRIP
(Superseded to 07518600)

$15.99

$

Usually ships in 4-12 days

0

68

Ariens 00203800

CLUTCH HANDLE
(Superseded to 00203851)

$39.99

$

Usually ships in 4-12 days

0

69

Ariens 05905000

BLT-HEX .25-20X1.50 PL GR5
(Superseded to 05952500)

$1.49

$

In Stock, Qty 20+

0

70

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

71

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

72

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

73

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

74

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

75

Ariens 00214600

LINK

$17.99

$

Usually ships in 4-12 days

0

76

Ariens 06911400

CLUTCH CABLE

$

$

Not available

77

Ariens 00204200

CHAIN & CONNECTOR

$6.99

$

In Stock, Qty 6

0

78

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

79

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 17

0

80

Ariens 05901300

BLT-HEX .62-11X2.25 GR2

$

$

Not available

81

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

82

Ariens 085015

NUT

$

$

Not available

83

Ariens 00283800

NAME PLATE

$

$

Not available

84

Ariens 00284200

J BOLT

$

$

Not available

85

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

86

2 HP BRIGGS & STRATTON ENGINE 60102-0368·02

$

$

Not available
