9027 STE (961910018-05) - Husqvarna 27" Snow Blower (2009-01) DRIVE 3 Parts Diagram

27" Snow Blower

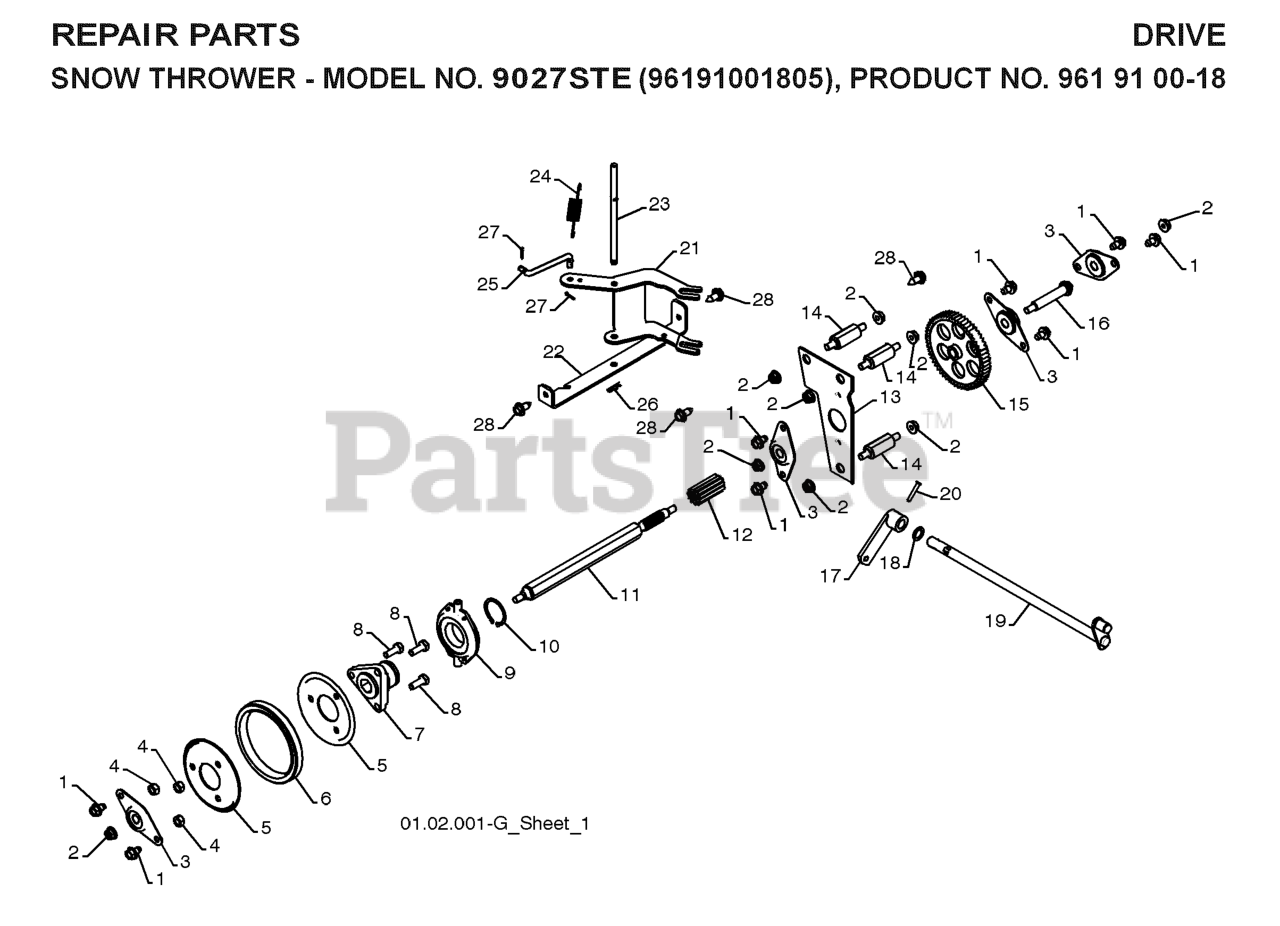

DRIVE 3 Parts Diagram

  • Title
25

Husqvarna 532187101

LINK, SPEED CONTROL

$

$

Not available

10

Husqvarna 812000012

RETAINING RING (2 2)(3 2)
(Superseded to 583607301)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532179831

RING, RUBBER WHEEL
(Superseded to 585021001)

$26.99

$

In Stock, only 4 left!

0

17

Husqvarna 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

16

Husqvarna 532180134

SHAFT, AUXILIARY

$

$

Not available

27

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 874760514

BOLT
(Superseded to 596322201)

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 532187857

BRACKET, PIVOT, SHIFT
(Superseded to 532435793)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532184080

LEVER, SPEED CONTROL

$

$

Not available

15

Husqvarna 532180082

GEAR, INTERMEDIATE
(Superseded to 532441417)

$265.99

$

In Stock, only 1 left!

0

12

Husqvarna 532180065

GEAR, PINION

$

$

Not available

7

Husqvarna 532178613

HUB, RUBBER WHEEL

$30.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532406109

SHAFT, AUGER CONTROL
(Superseded to 532429668)

$47.99

$

In Stock, only 1 left!

0

14

Husqvarna 532179270

SPACER, PLATE

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532192907

AUXILLARY PLATE
(Superseded to 532192616)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532180017

BEARING, FLANGE

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180066

SHAFT.HEX.LONG

$

$

Not available

26

Husqvarna 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532178807

PIN, PIVOT

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532199509

PLATE.RUBBER.WHEEL
(Superseded to 532435789)

$

$

Not available

18

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

20

Husqvarna 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 532180135

SPRING, BIAS

$6.49

$

In Stock, Qty 10

0

2

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532175344

TRUNNION BEARING ASSY
(Superseded to 597412801)

$34.99

$

In Stock, only 1 left!

0

1

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0
