9027 STE (961910018-02) - Husqvarna 27" Snow Blower (2007-10) HANDLE Parts Diagram

27" Snow Blower

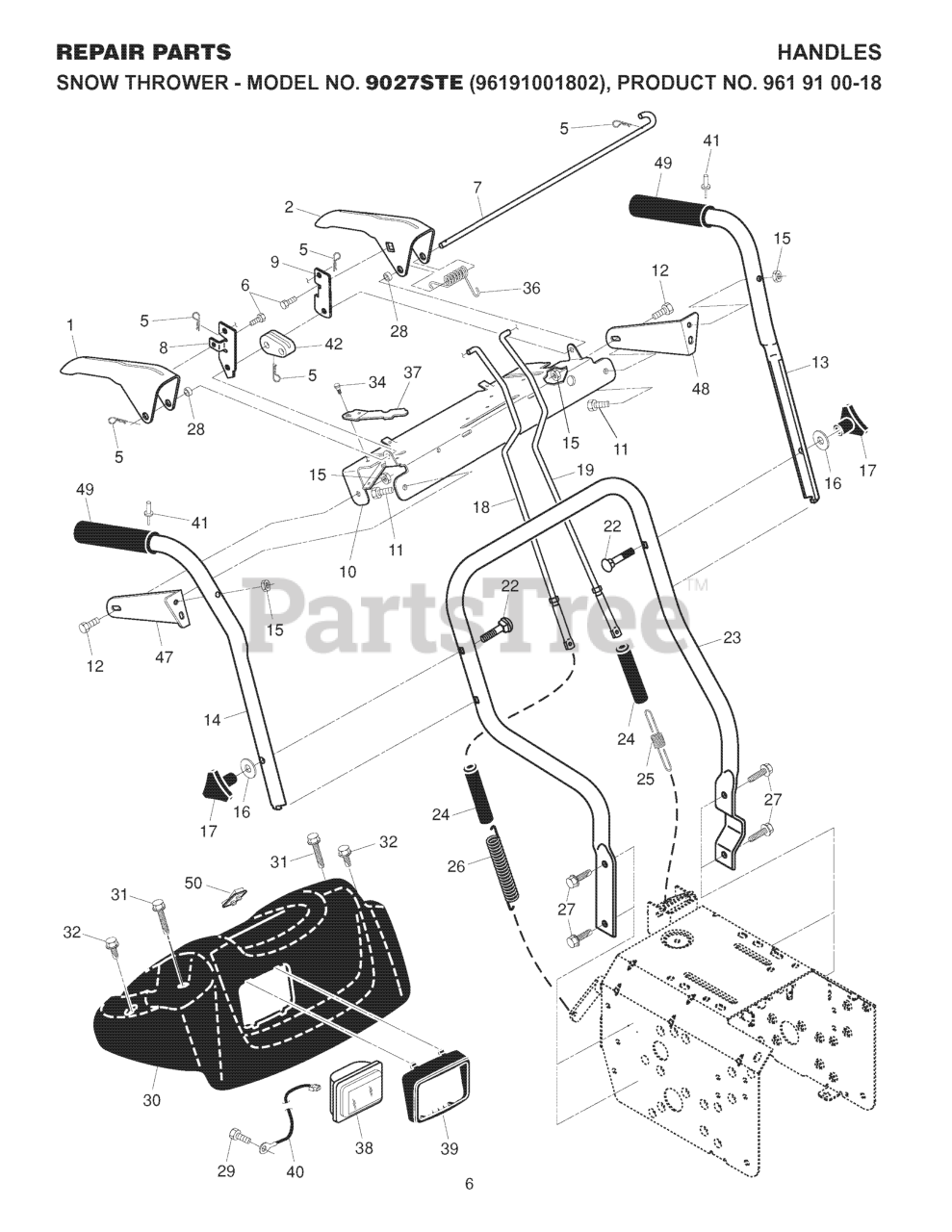

HANDLE Parts Diagram

  • Title

14

Husqvarna 532415237

TUBE.HANDLE.PLOW.RH.PNT
(Superseded to 532414516)

$60.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532415539

PANEL.CONTROL.PNT.BLACK
(Superseded to 585198802)

$27.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532416288

SPRING.INTERLOCK
(Superseded to 532412675)

$

$

Not available

5

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

12

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532196944

BRKT.PANEL.LH.INT
(Superseded to 532429148)

$

$

Not available

32

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532405781

SWITCH.GRIP.HEATED

$18.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532412677

BAIL.CONTROL.INTERLOCK

$14.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532178666

HEADLIGHT.HALOGEN.SNOW

$250.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, only 4 left!

0

31

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532180480

ROD.ASM.IMPELLER

$

$

Not available

16

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532408059

Screw, Grounding

$

$

Not available

42

Husqvarna 532414572

CAM.INTERLOCK.RELEASE
(Superseded to 532445291)

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, only 4 left!

0

48

Husqvarna 532196943

BRKT.PANEL.RH.INT
(Superseded to 532429149)

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

In Stock, only 3 left!

0

49

Husqvarna 532414515

GRIP.HANDLE.HEATED

$91.99

$

In Stock, only 1 left!

0

6

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

1

Husqvarna 532415542

LEVER.CONTROL.RH.PNT
(Superseded to 580687702)

$22.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532178668

BEZEL.HEADLIGHT.BLACK

$7.49

$

In Stock, Qty 5

0

17

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

24

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

28

Husqvarna 532412680

SPACER CONTROL LEVER

$

$

Not available

41

Husqvarna 532178775

RIVET.POP.1/8X

$7.99

$

In Stock, only 1 left!

0

36

Husqvarna 532178831

RP SPRING, TORSION
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

8

Husqvarna 532199576

ARM,IMPELLER ROD
(Superseded to 532429098)

$

$

Not available

23

Husqvarna 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available

13

Husqvarna 532415236

TUBE.HANDLE.PLOW.LH.PNT
(Superseded to 532414517)

$54.99

$

In Stock, only 1 left!

0

40

Husqvarna 532405699

HARNESS.WIRE.LIGHT/GRIP.SNOW

$42.99

$

In Stock, only 1 left!

0

9

Husqvarna 532415546

ARM.TRACTION.ROD.YZ

$4.99

$

Usually ships in 3-10 days

0

-

Husqvarna 532401620

BULB.HEADLIGHT.HALOGEN.

$80.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 532405879

CONSOLE, PANEL

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532415541

LEVER.CONTROL.LH.PNT
(Superseded to 580687802)

$28.99

$

Usually ships in 3-10 days

0

27

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 532180481

ROD.ASM.TRACTION.

$27.99

$

Usually ships in 3-10 days

0
