9027 STE (961910003-01) - Husqvarna 27" Snow Blower (2012-11) HANDLE & CONTROLS Parts Diagram

27" Snow Blower

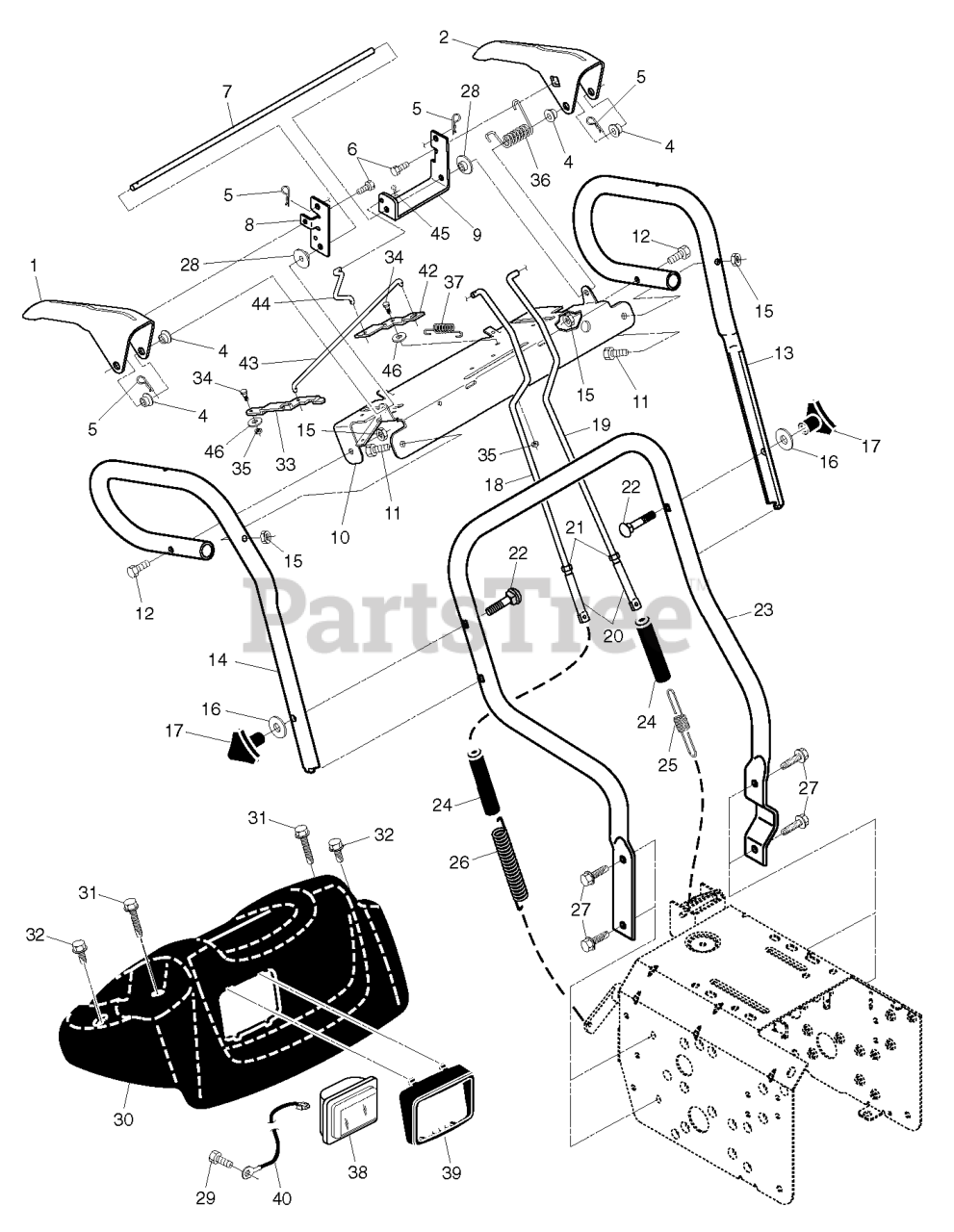

HANDLE & CONTROLS Parts Diagram

  • Title

20

Husqvarna 532180428

ROD, END CONTROL

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532407648

LEVER, TRACTION DRIVE CONTROL,
(Superseded to 532405783)

$

$

Not available

28

Husqvarna 532198559

BUSHING, IDLER PIVOT

$

$

Not available

38

Husqvarna 532178666

HEADLIGHT.HALOGEN.SNOW

$250.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 532184108

HANDLE TUBE RH
(Superseded to 532407857)

Note: RH

$48.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532199575

ARM,TRACTION ROD
(Superseded to 532196334)

$

$

Not available

1

Husqvarna 532407649

LEVER, AUGER CONTROL, RH
(Superseded to 532411423)

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 874780524

HEX BOLT
(Superseded to 539976935)

$

$

Not available

31

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532184107

HANDLE TUBE LH
(Superseded to 532436114)

Note: LH

$66.99

$

Usually ships in 3-10 days

0

27

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

30

Husqvarna 532182906

PANEL.CONSOLE.SNOW

$48.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532183518

BOLT, SHOULDER

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532068038

NUT **
(Superseded to 873850400)

$

$

Not available

10

Husqvarna 532199531

PANEL.CONTROL
(Superseded to 532196619)

$18.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532196338

ROD.ASM INTERLOCK

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532199578

LEVER.INTERLOCK
(Superseded to 532196336)

$2.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532180481

ROD.ASM.TRACTION.

$27.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178652

ROD.INTERLOCK

$11.99

$

In Stock, only 1 left!

0

17

Husqvarna 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

15

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532178668

BEZEL.HEADLIGHT.BLACK

$7.49

$

In Stock, Qty 5

0

8

Husqvarna 532199576

ARM,IMPELLER ROD
(Superseded to 532429098)

$

$

Not available

4

Husqvarna 532178888

BUSHING, FLANGE

$

$

Not available

46

Husqvarna 532179246

WASHER, NYLON FRICTION

$7.49

$

In Stock, Qty 6

0

33

Husqvarna 532199577

LATCH.INTERLOCK
(Superseded to 532196335)

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

37

Husqvarna 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, only 4 left!

0

18

Husqvarna 532180480

ROD.ASM.IMPELLER

$

$

Not available

- -

Husqvarna 532401620

BULB.HEADLIGHT.HALOGEN.

Note: INCLUDED IN HEADLIGHT

$80.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873350500

JAM NUT TI
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532180964

HARNESS.WIRE.HALOGEN

$51.99

$

In Stock, only 3 left!

0

36

Husqvarna 532178831

RP SPRING, TORSION
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 874780528

SCREW

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 532199638

ROD.LATCH.INTERLOCK

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532193072

SCREW.BLOWER.HOUSING.B&S

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0

23

Husqvarna 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available
